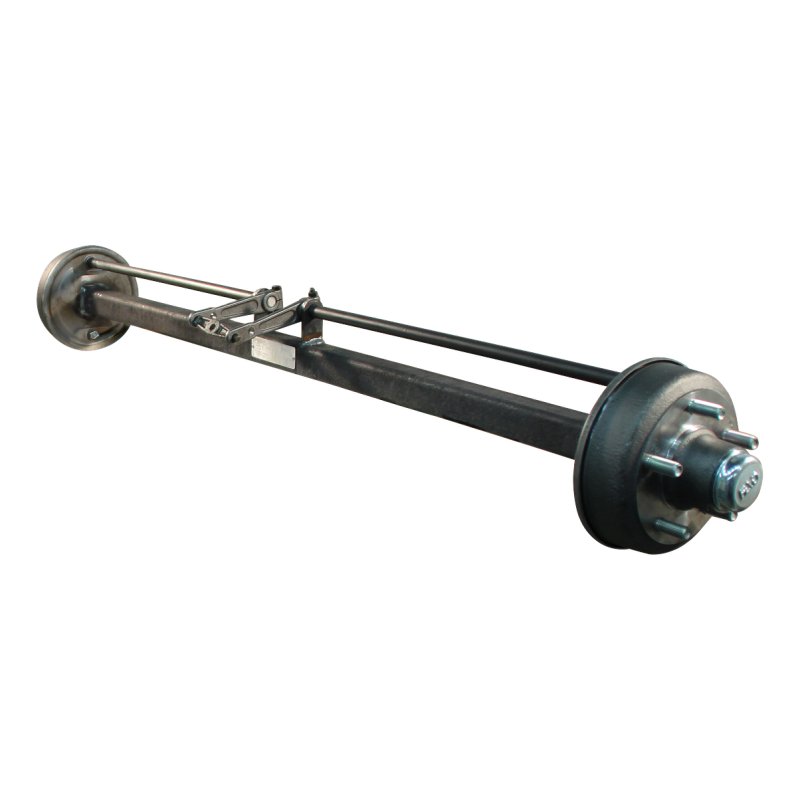

axle with brake, agriculture ⧄40x1300mm brake 140Ax30 59/100/4 M12x1.5

FAD

Reference : 181.144.402.131

Brand FAD Industry Agriculture type axle with brake, agriculture dimension ⧄40x1300 mm wheel brake brake 140Ax30 S wheel brake type inspection n.v.t. wheel connection 59/100/4 wheelbolt / nut M12x1.5 S positive camber no version untreated bearing type 30204 + 30205 D = distance outside drum - brake lever (mm) 243 E+F = length brake lever (mm) 140 M=balancer length (mm) no balancer in the middle load capacity single axle 25km/h 1100Kg load capacity single axle 40km/h 900Kg load capacity tandem a…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture
type	Essieux
dimension	⧄40x1300 mm
bearing type	30204 + 30205
version	non traitée
remark	-
wheel connection	59/100/4
wheelbolt / nut	M12x1.5
load capacity triangle 25km/h	900 kg
load capacity triangle 40km/h	750 kg
load capacity single axle 25km/h	1 100 kg
load capacity single axle 40km/h	900 kg
load capacity tandem axle 25km/h	800 kg
load capacity tandem axle 40km/h	650 kg
wheel brake	frein 140Ax30
S positive camber	non
D = distance outside drum - brake lever (mm)	243
E+F = length brake lever (mm)	140
M=balancer length (mm)	aucun balance de compensation au milieu
S wheel brake type inspection	n.v.t.
