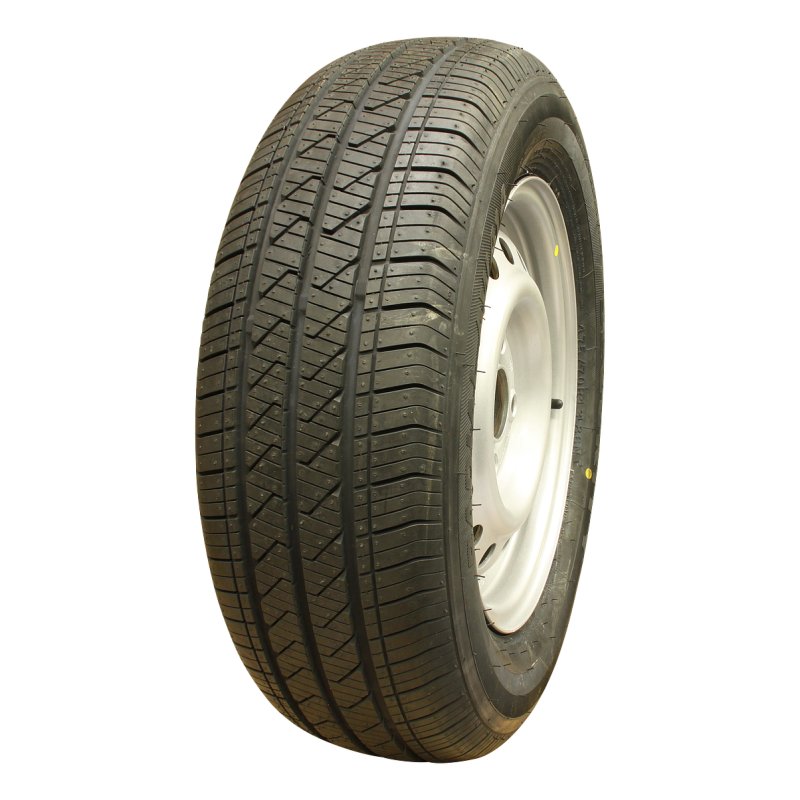

air tire + wheel 175/70 R13 4Jx13H2 ET30 57/100/4 steel AW-414 XL M+S silver grey

Security

Reference : 154.130.015.005

Brand Security Application Trailer Industry Trailer set name air tire + wheel series series 58 tyre size 175/70 R13 width 177 mm wheel size 4Jx13H2 diameter 576 mm offset ET30 nominal width 175 mm separator / connection size 57/100/4 SI N LI 86 wheel material steel inch size 13 inch profile AW-414 XL M+S bolt hole diameter 15.5 mm tyre type Tl wheel width 4.00 inch number of bolt holes 4 rim contour J circle diameter 100 mm hub bore diameter 57 1/2/3-piece 1-piece pressure (bar) 3.4 hump H2 whe…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Remorque
series	série 58
Application	Remorque
width	177 mm
offset	ET30
inch size	13 pouce
diameter	576 mm
tyre size	175/70 R13
profile	AW-414 XL M+S
tyre type	TL
pressure (bar)	3,4
nominal width	175 mm
wheel colour	gris argent
wheel material	métal
RAL colour	aluminium blanc RAL 9006P1
wheel size	4Jx13H2
separator	/
1/2/3-piece	1-pièce
SI	N
load capacity set	530 kg
set name	pneu + roue
maximum speed set	140 km/h
surface treatment	peinture en poudre
LI	86
wheel width	4.00 pouce
connection size	57/100/4
rim contour	J
plate thickness	2,5/4,0 mm
bolt hole diameter	15,5 mm
circle diameter	100 mm
hub bore diameter	57
hump	H2
number of bolt holes	4
S surface treatment in general	KTL + revêtement en poudre
