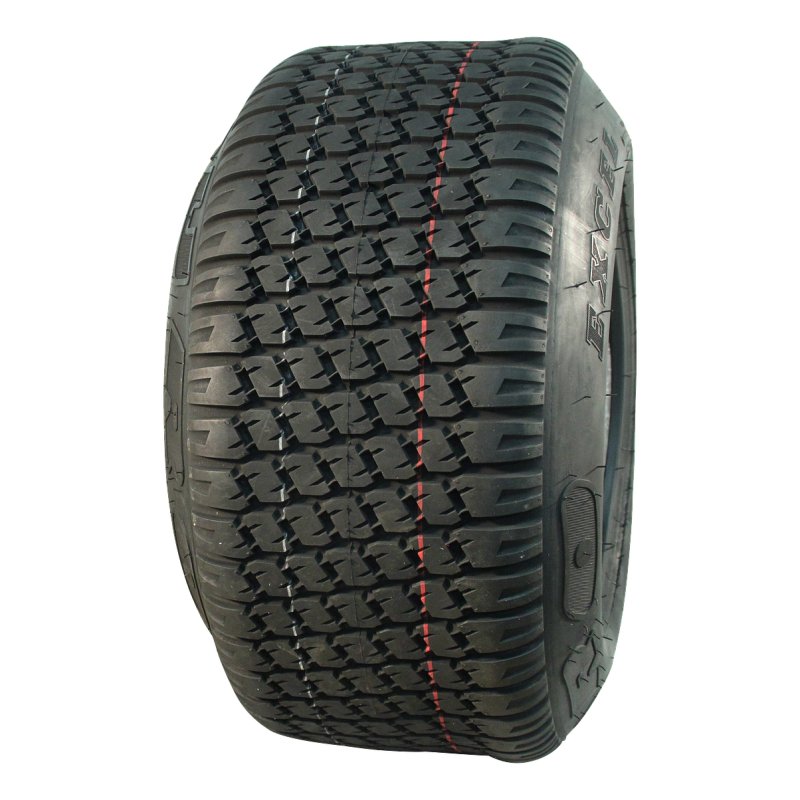

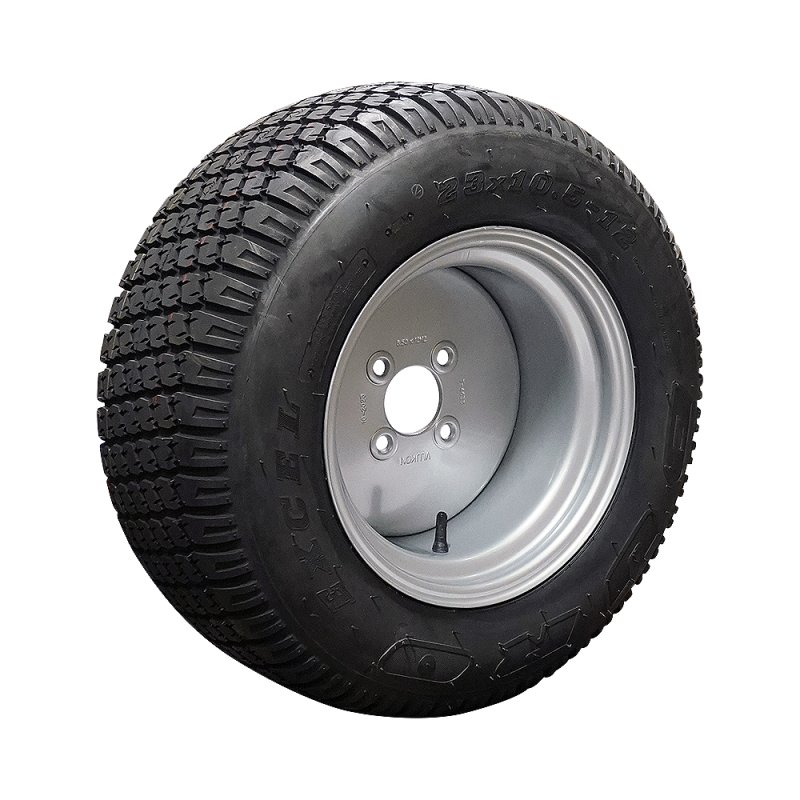

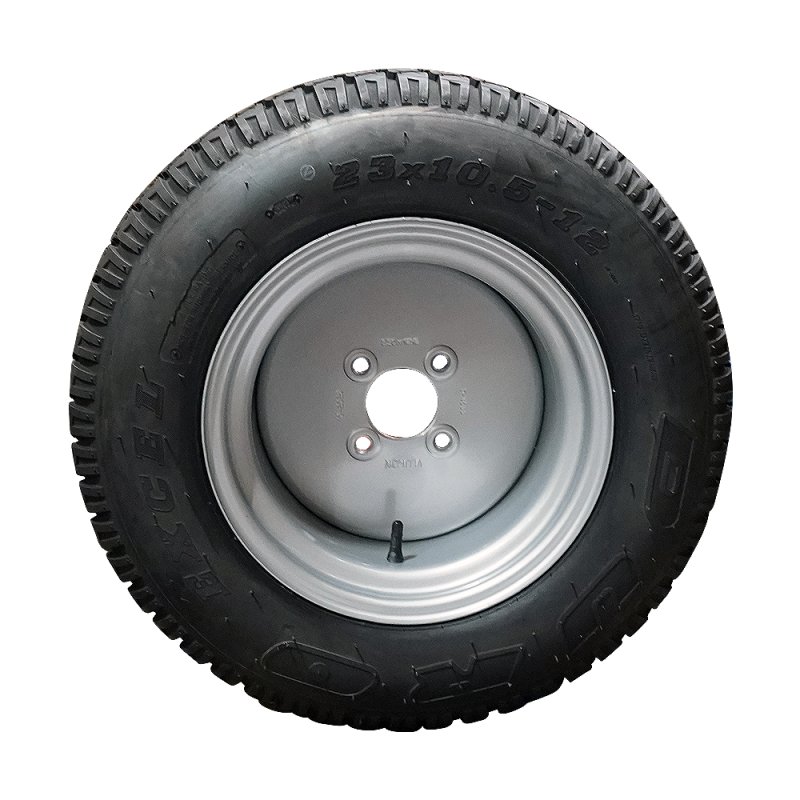

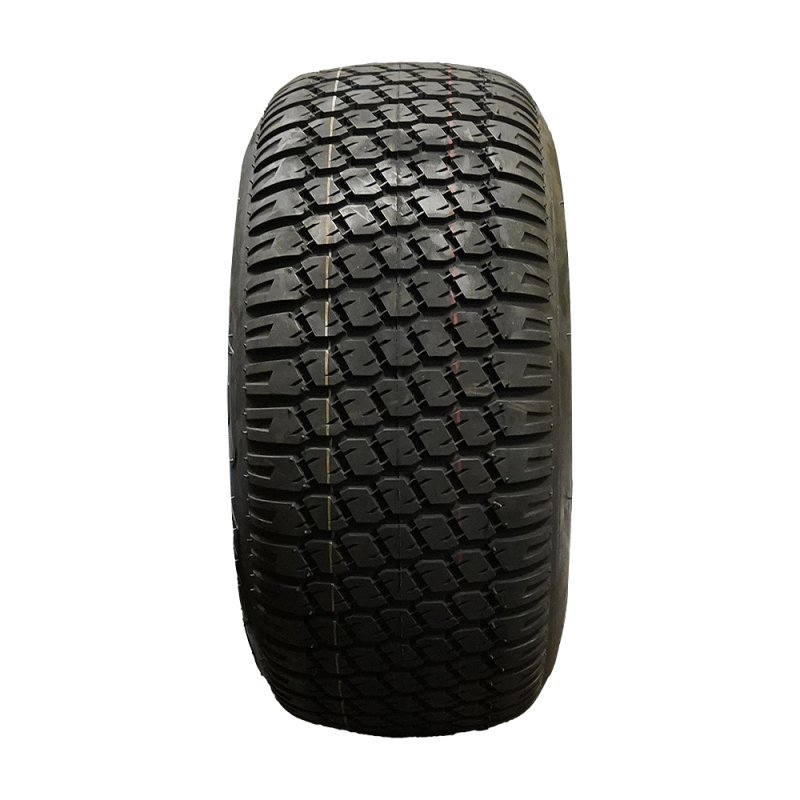

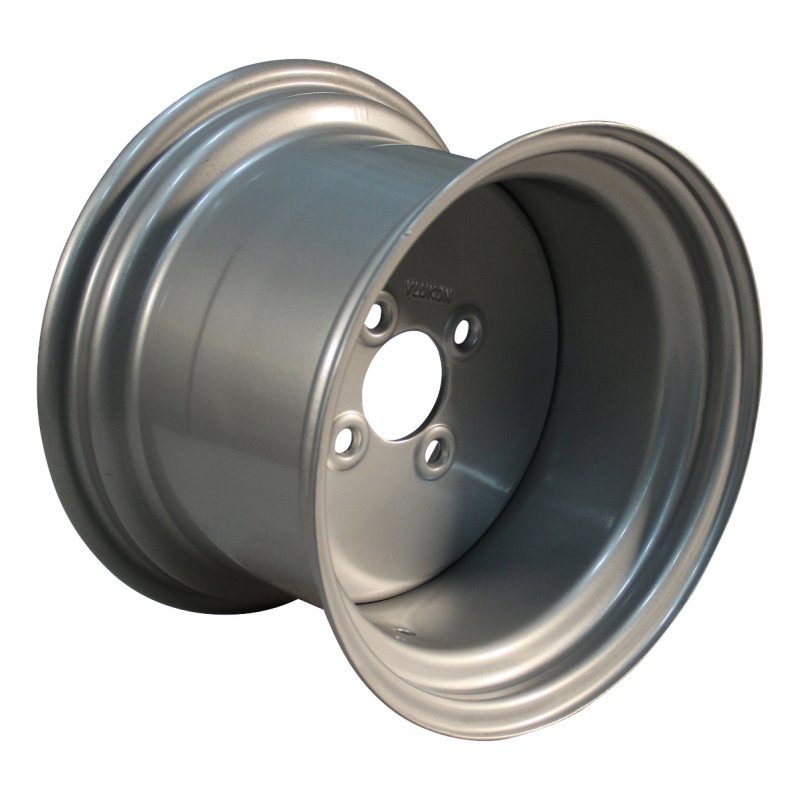

air tire + wheel 23x10.50-12 8.50Ix12H2 ET-10 63,5/100/4 steel HF-293 silver grey

DURO

Reference : 179.231.072.603

Brand DURO Industry Agriculture and horticulture set name air tire + wheel tyre size 23x10.50-12 width 264 mm wheel size 8.50Ix12H2 diameter 579 mm offset ET-10 nominal width 23 mm separator x connection size 63,5/100/4 SI A3 wheel material steel inch size 12 inch profile HF-293 PR 6 bolt hole diameter 13.5 mm tyre type Tl wheel width 8.5 inch number of bolt holes 4 rim contour I circle diameter 100 mm hub bore diameter 63.5 1/2/3-piece 1-piece hump H2 wheel colour silver grey RAL colour white …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture
width	264 mm
offset	ET-10
inch size	12 pouce
diameter	579 mm
tyre size	23x10.50-12
profile	HF-293
tyre type	TL
nominal width	23 mm
wheel colour	gris argent
wheel material	métal
RAL colour	aluminium blanc RAL 9006
wheel size	8.50Ix12H2
separator	x
1/2/3-piece	1-pièce
PR	6PR
SI	A3
load capacity set	800 kg
set name	pneu + roue
maximum speed set	15 km/h
surface treatment	peinture en poudre
wheel width	8.5 pouce
connection size	63,5/100/4
rim contour	I
plate thickness	3,2 mm
bolt hole diameter	13,5 mm
circle diameter	100 mm
hub bore diameter	63,5
hump	H2
number of bolt holes	4
nominal height	10,5
