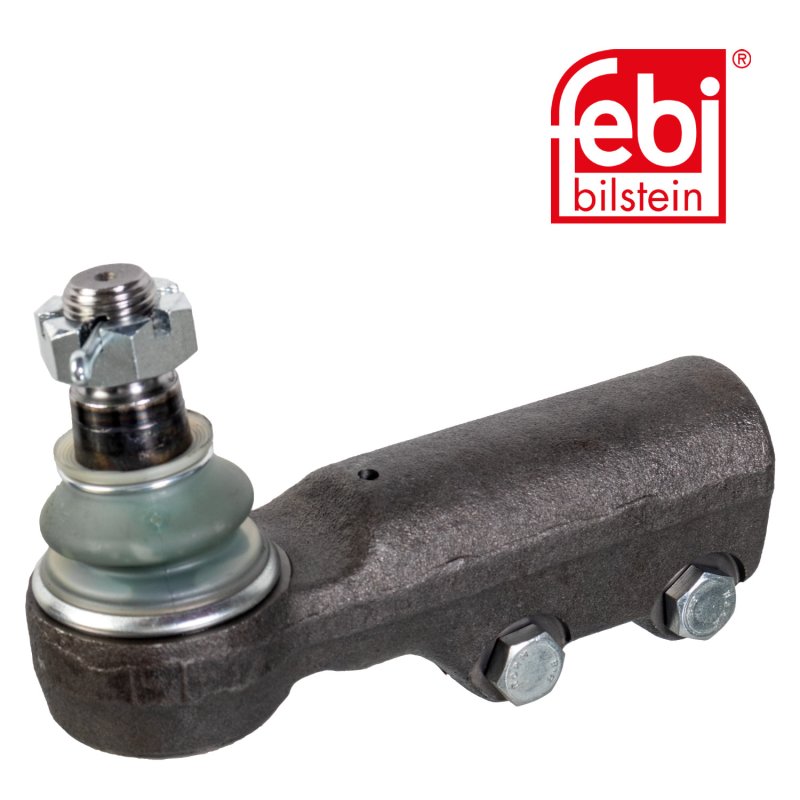

Tie Rod End with castle nut and cotter pin

Febi Bilstein

Reference : FEB.01358

Brand Febi Bilstein Industry Truck Cone Size 26 Tube Diameter 35 Colour grey Outside Thread M10 x 1 / M20 x 1,5 Miscellaneous Splintabmessungen 3,5 x 40 mm Pack.Unit 1 Length 150 Height or Thickness 127 Wrench Size (Metric) 17 / 30 Outer Diameter 23,4 Weight 1,938 Material cast iron Thread Mode right-hand thread Internal Thread M35 x 1,5 Classification 4 - partner production incl. bilstein group marking Thread Length 25 Fitting Position front axle left / front axle right A 150 mm B 25 mm C 127 …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Poids lourd
suitable for	Daimler Buses (ex. EvoBus), Mercedes-Benz Trucks, Neoplan
OE numbers	000 330 28 35, 000 330 40 35, 000 330 77 35, 000 338 49 29, 001 330 21 35, 0013 302 135, 001 330 40 35
Classification	4 - Production partenaire avec marquage bilstein group
Fitting Position	essieu avant à droite / essieu avant à gauche
Outer Diameter	23,4
Length	150
Pack.Unit	1
Material	fonte
Height or Thickness	127
Outside Thread	M10 x 1 / M20 x 1,5
Internal Thread	M35 x 1,5
Tube Diameter	35
Cone Size	26
Miscellaneous	Splintabmessungen 3,5 x 40 mm
Thread Length	25
Colour	gris
Thread Mode	filetage à droite
A	150 mm
L - Surface	grey, yellow galvanized screws and nuts
M - Material	grey cast iron, steel, plastic
B	25 mm
N - Weight	1,93 kg
C	127 mm
D	M20 x 1,5
O - Marking	febi-logo, Germany
E	23,4 mm
F	30 mm
G	M35 x 1,5 y x 87 mm
H	M10 x 1 x 40 mm, SW 17 mm
i	SW 30 mm
J	3,5 x 40 mm
