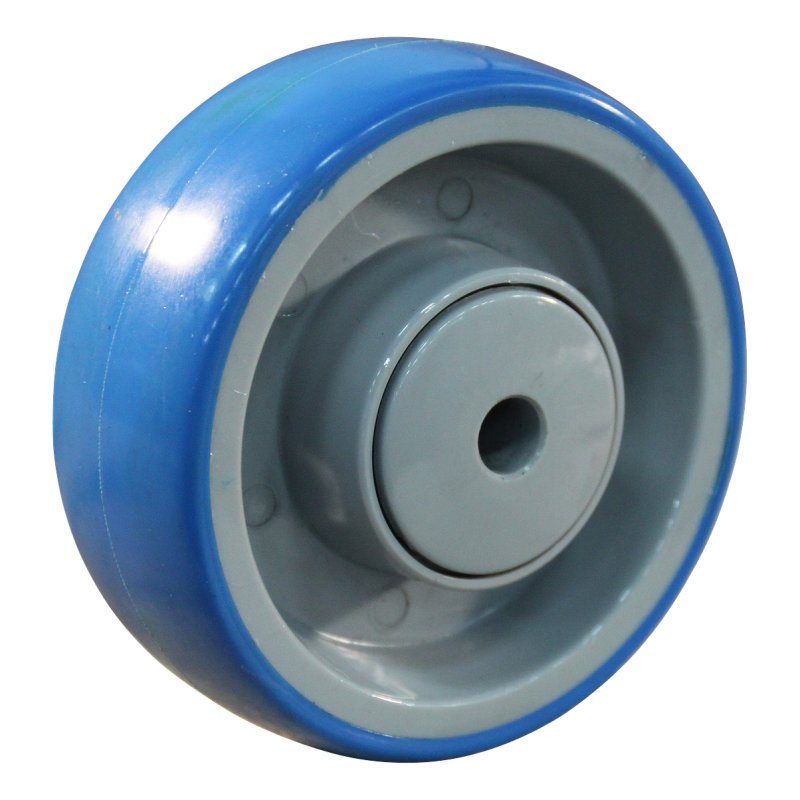

wheel 100mm serie 21 ball bearing

Reference : 121.106.100.036

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type loose wheel Wheel diameter 100 mm Bearing type ball bearing Tread material PU / TPU Maximum load capacity 180 kg width 36 mm rim PA rim colour silver grey RAL 7001 diameter axle bore 10,5 mm hub length mm 46 mm tire TPU tire colour sky blue RAL 5015 hardness Shore A 85 Shore A tolerance hardness +/-3 number of ball bearings single ball bearing lubrication -30°C +120°C ball bearing seat 35x11 mm logo Prot…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	36 mm
Wheel type	roue seule
Bearing type	roulement à billes
Maximum load capacity	180 kg
Wheel diameter	100 mm
Tread material	PU / TPU
rim	PA
hub length mm	46 mm
rim colour	gris argent RAL 7001
tire	TPU
tire colour	bleu ciel RAL 5015
tolerance hardness	+/-3
hardness Shore A	85 Shore A
diameter axle bore	10,5 mm
speed km/h	4
logo	logo Protempo sur la jante
lubrication	-30°C +120°C
number of ball bearings	1 seul roulement à billes
ball bearing type	6202 2RS C3
ball bearing seat	35x11 mm
material hub cap	PA
hub cap	oui
tolerance bore	-0,2
