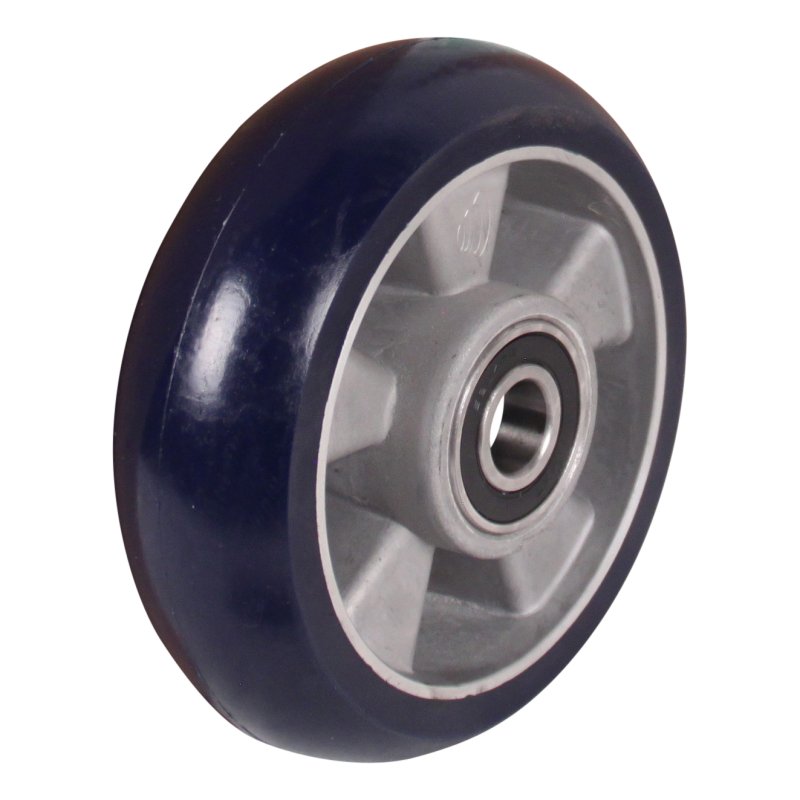

wheel 125mm series 03 ball bearing

Reference : 103.126.200.041

Brand Novio Application Transportwheels Wheel type loose wheel Wheel diameter 125 mm Bearing type ball bearing Tread material PU / TPU Maximum load capacity 350 kg width 40 mm rim aluminium ADC12 (A383) diameter axle bore 20 mm hub length mm 50 mm tire MDI + PTMG soft / Elaxthane tire colour sapphire blue RAL 5003 hardness Shore A 75 Shore A tolerance hardness +/-3 number of ball bearings double ball bearing lubrication -30°C +120°C rim size 80 mm ball bearing seat 47x14 mm logo Protempo logo o…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	40 mm
Wheel type	roue seule
Bearing type	roulement à billes
Maximum load capacity	350 kg
Wheel diameter	125 mm
Tread material	PU / TPU
rim	aluminium ADC12 (A383)
hub length mm	50 mm
tire	MDI + PTMG soft / Elaxthane
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	75 Shore A
diameter axle bore	20 mm
speed km/h	4
logo	logo Protempo sur la jante
lubrication	-30°C +120°C
number of ball bearings	roulement à billes double
ball bearing type	6204 2RS C3
inner bush	27x21x22 -0,1/--0,2
ball bearing seat	47x14 mm
rim size	80 mm
