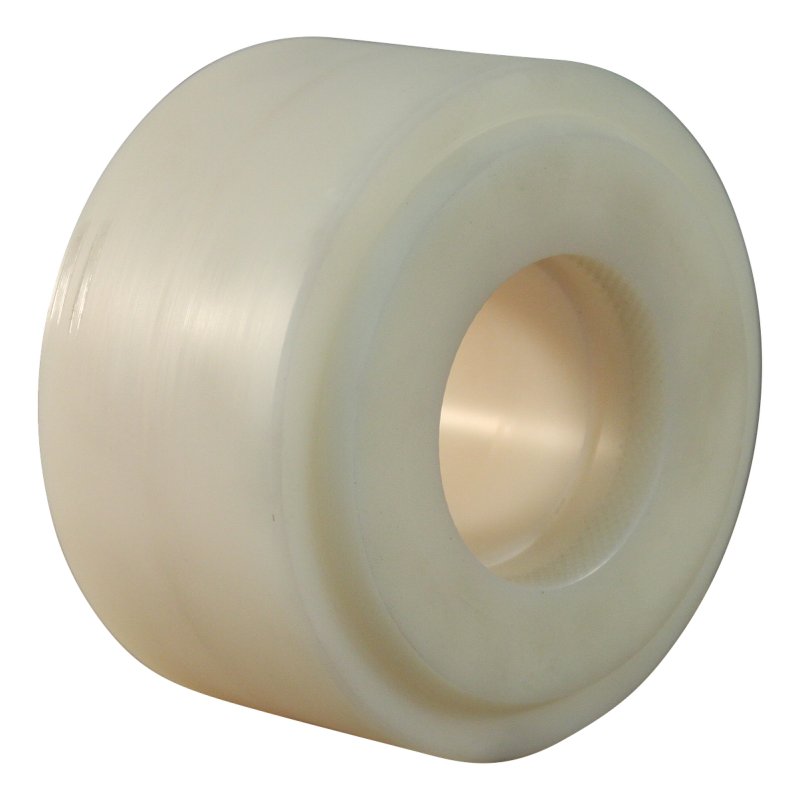

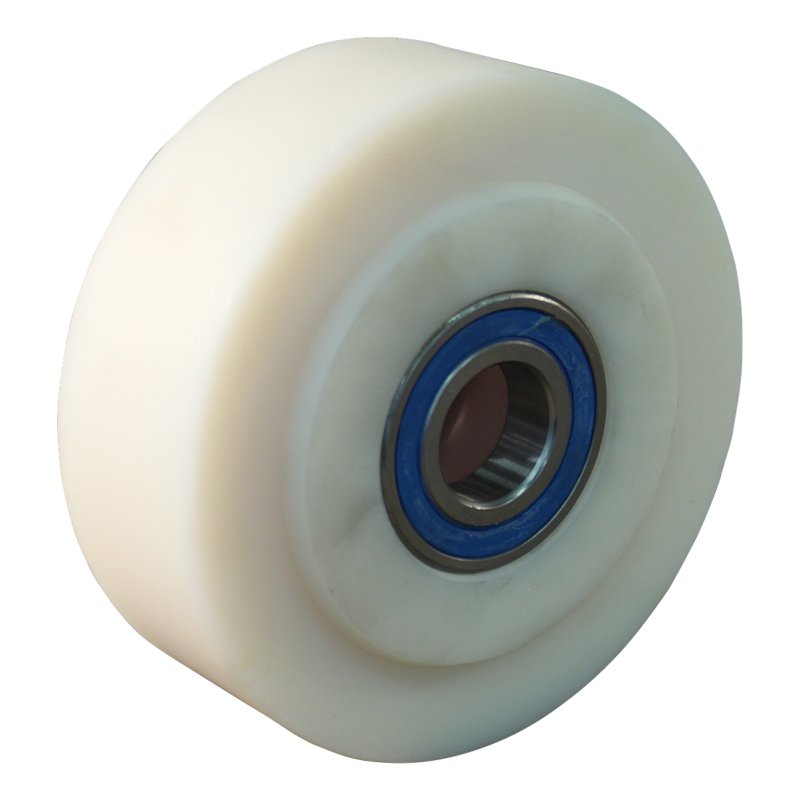

wheel 160mm series 08 ᠆ ball bearing
Reference : 108.166.300.050

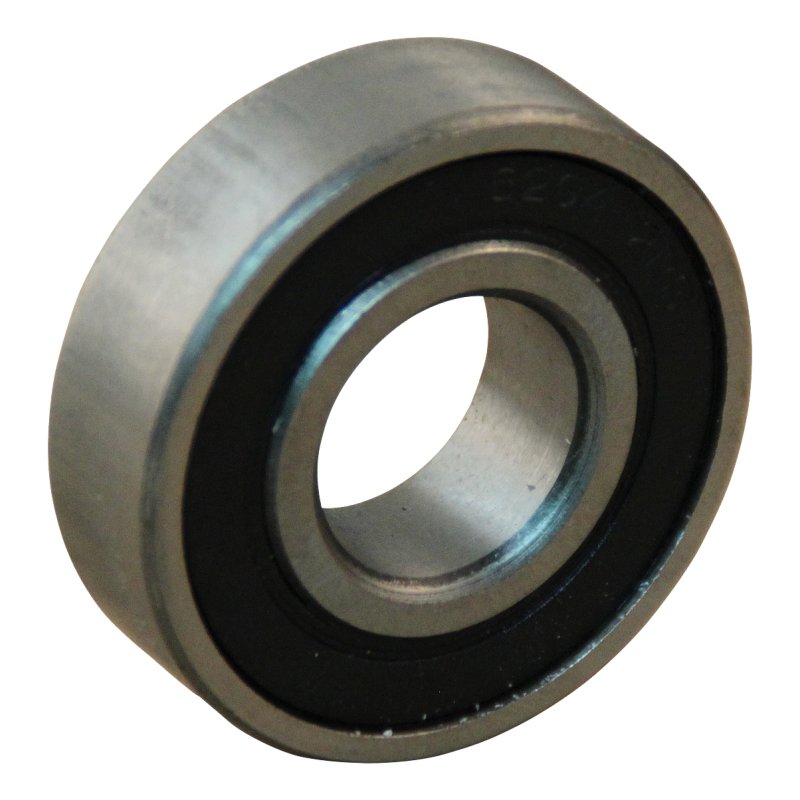

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type loose wheel Wheel diameter 160 mm Bearing type ball bearing Overall height 160 mm Maximum load capacity 2250 kg width 50 mm rim cast polyamide PA 6 G rim colour natural diameter axle bore 30 mm hub length mm 60 mm hardness Shore D 90 tolerance hardness +/-3 name ball bearing bearing type 6206 2RS C3 outside diameter 62 mm bore diameter 30 mm bearing width 16 mm
208,07 € incl. VAT
On order Supply lead time : environ 8 semaines
📩 Notify me when this product is available again
A single email, when it is back in stock. No spam.
Specifications
| Industry | Industrie et logistique interne |
| Application | Roue de transport |
| width | 50 mm |
| Wheel type | roue seule |
| Bearing type | roulement à billes |
| Maximum load capacity | 2 250 kg |
| Wheel diameter | 160 mm |
| rim | nylon moulé PA 6 G |
| Overall height | 160 mm |
| hub length mm | 60 mm |
| rim colour | naturel |
| tolerance hardness | +/-3 |
| diameter axle bore | 30 mm |
| outside diameter | 62 mm |
| name | roulement à billes |
| bore diameter | 30 mm |
| bearing width | 16 mm |
| bearing type | 6206 2RS C3 |
| hardness Shore D | 90 |
Description
- Brand
- Novio
- Application
- Transportwheels
- Industry
- Industry and internal logistics
- Wheel type
- loose wheel
- Wheel diameter
- 160 mm
- Bearing type
- ball bearing
- Overall height
- 160 mm
- Maximum load capacity
- 2250 kg
- width
- 50 mm
- rim
- cast polyamide PA 6 G
- rim colour
- natural
- diameter axle bore
- 30 mm
- hub length mm
- 60 mm
- hardness Shore D
- 90
- tolerance hardness
- +/-3
- name
- ball bearing
- bearing type
- 6206 2RS C3
- outside diameter
- 62 mm
- bore diameter
- 30 mm
- bearing width
- 16 mm
