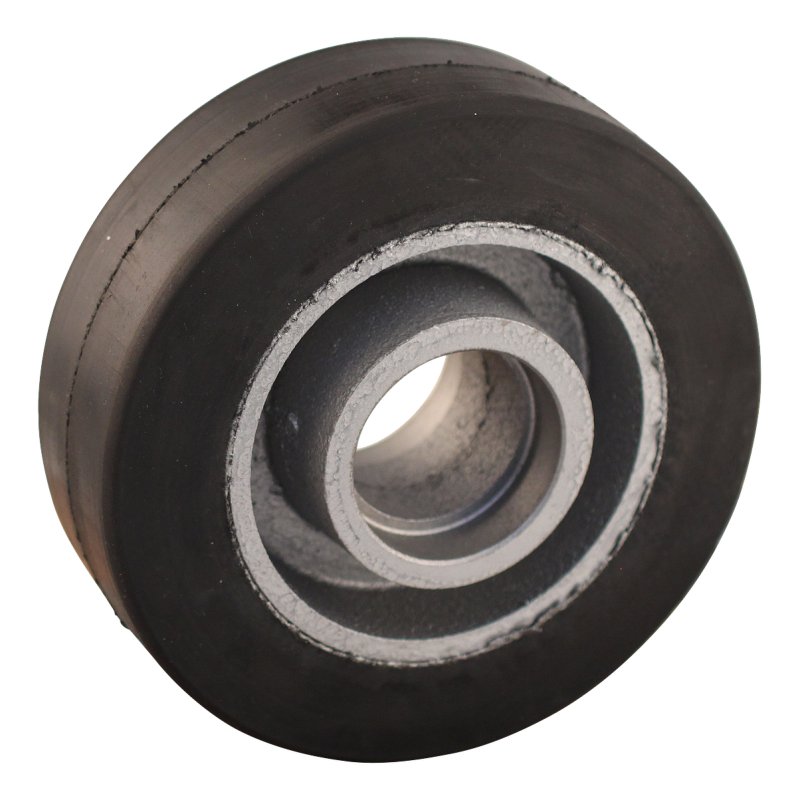

wheel 400mm series 04 ᠆ ball bearing
Reference : 104.406.400.100
Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type loose wheel Wheel diameter 400 mm Bearing type ball bearing Tread material rubber / TPE Overall height 400 mm Maximum load capacity 1350 kg width 100 mm rim cast iron rim colour silver grey RAL 7001 hub length mm 100 mm tire elastic rubber tire colour black hardness Shore A 70 Shore A tolerance hardness +/-3 name ball bearing bearing type 6208 2RS C3 outside diameter 80 mm bore diameter 40 mm bearing wid…
430,59 € incl. VAT
On order Supply lead time : environ 8 semaines
📩 Notify me when this product is available again
A single email, when it is back in stock. No spam.
Specifications
| Industry | Industrie et logistique interne |
| Application | Roue de transport |
| width | 100 mm |
| Wheel type | roue seule |
| Bearing type | roulement à billes |
| Maximum load capacity | 1 350 kg |
| Wheel diameter | 400 mm |
| Tread material | caoutchouc / TPE |
| rim | fonte |
| Overall height | 400 mm |
| hub length mm | 100 mm |
| rim colour | gris argent RAL 7001 |
| tire | caoutchouc souple |
| tire colour | noir |
| tolerance hardness | +/-3 |
| hardness Shore A | 70 Shore A |
| outside diameter | 80 mm |
| name | roulement à billes |
| bore diameter | 40 mm |
| bearing width | 18 mm |
| bearing type | 6208 2RS C3 |
Description
- Brand
- Novio
- Application
- Transportwheels
- Industry
- Industry and internal logistics
- Wheel type
- loose wheel
- Wheel diameter
- 400 mm
- Bearing type
- ball bearing
- Tread material
- rubber / TPE
- Overall height
- 400 mm
- Maximum load capacity
- 1350 kg
- width
- 100 mm
- rim
- cast iron
- rim colour
- silver grey RAL 7001
- hub length mm
- 100 mm
- tire
- elastic rubber
- tire colour
- black
- hardness Shore A
- 70 Shore A
- tolerance hardness
- +/-3
- name
- ball bearing

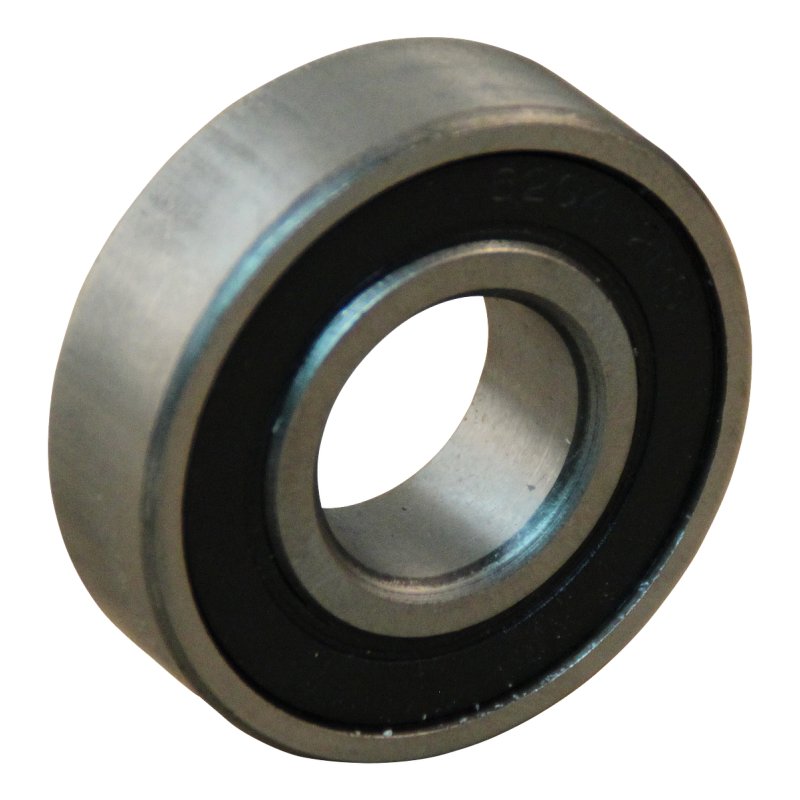

- bearing type
- 6208 2RS C3
- outside diameter
- 80 mm
- bore diameter
- 40 mm
- bearing width
- 18 mm
