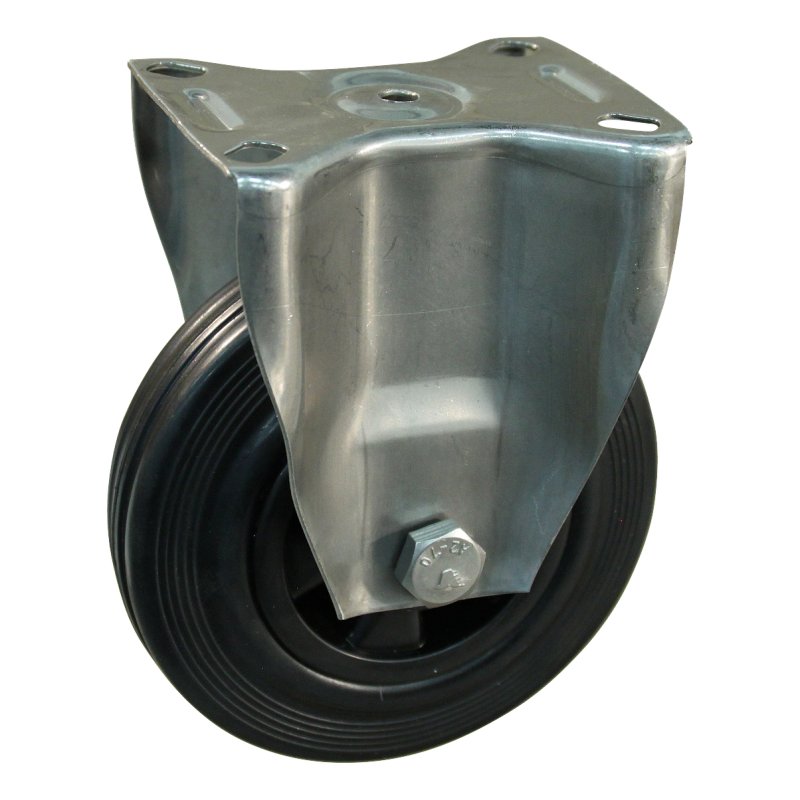

fixed castor 100mm series 01 ᠆ 30 plate mounting SS roller bearing

Reference : 301.109.306.000

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type stainless steel roller bearing Brake type no brake Tread material rubber / TPE Overall height 127 mm Maximum load capacity 70 kg width 35 mm rim PP rim colour black diameter axle bore 12 mm diameter axle bore fork 8 mm hub length mm 40 mm hub-to-fork length 40 mm material fork SS dimension fixing 100x84 / 80x60 / Ø9 mm tire stan…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	35 mm
Wheel type	roulette fixe
Bearing type	roulement à rouleaux en inox
Maximum load capacity	70 kg
Wheel diameter	100 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	127 mm
hub length mm	40 mm
Fork mounting	fixation platine
rim colour	noir
material fork	inox
Brake type	sans frein
dimension fixing	100x84 / 80x60 / Ø9 mm
diameter axle bore fork	8 mm
hub-to-fork length	40 mm
tire	caoutchouc standard
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	80 Shore A
diameter axle bore	12 mm
