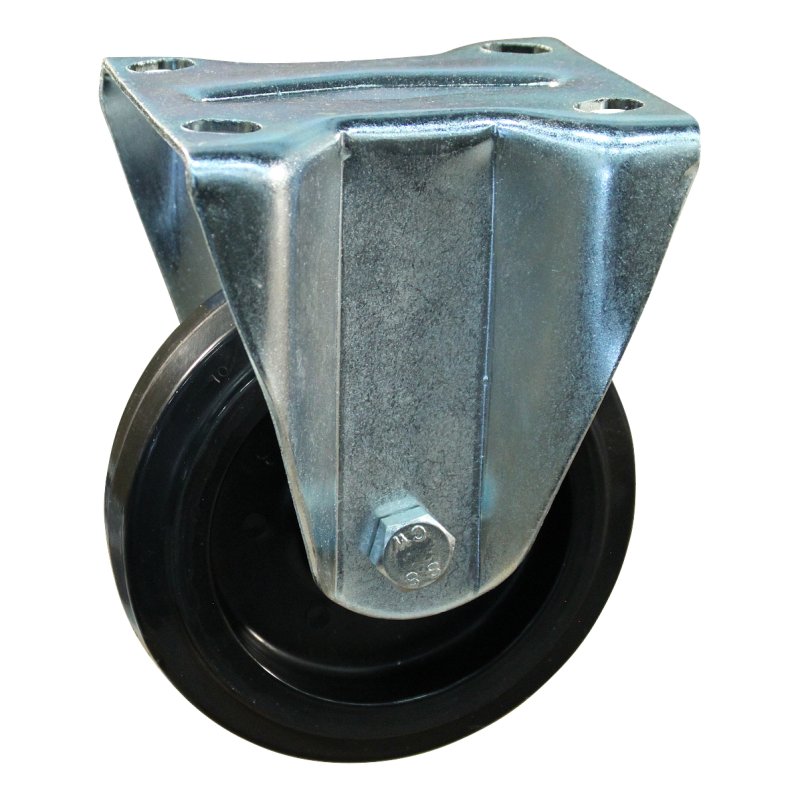

fixed castor 100mm series 07 ᠆ 19 plate mounting roller bearing

Reference : 307.102.196.000

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 135 mm Maximum load capacity 150 kg width 36 mm rim PA rim colour jet black RAL 9005 diameter axle bore 12 mm diameter axle bore fork 8 mm hub length mm 40 mm hub-to-fork length 41 mm colour support/housing zinc plated material fork steel dimension fix…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	36 mm
Wheel type	roulette fixe
Bearing type	roulement à rouleaux
Maximum load capacity	150 kg
Wheel diameter	100 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	135 mm
hub length mm	40 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	100x85 - 80x60 mm
diameter axle bore fork	8 mm
hub-to-fork length	41 mm
tire	caoutchouc souple
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4
hardness Shore A	70 Shore A
diameter axle bore	12 mm
colour support/housing	zingué
