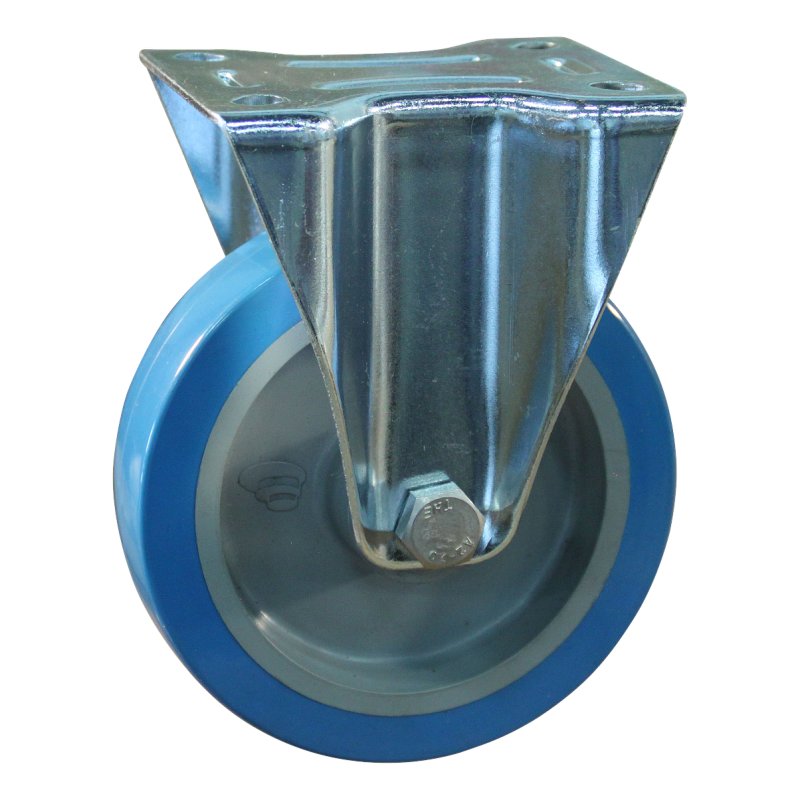

fixed castor 100mm serie 21 ᠆ plate mounting roller bearing

Reference : 321.102.156.035

Brand Novio Application Transportwheels Wheel type fixed castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type roller bearing Brake type no brake Tread material PU / TPU Overall height 128 mm Maximum load capacity 100 kg width 35 mm rim PP rim colour silver grey RAL 7001 diameter axle bore 15 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2 mm colour support/housing zinc plated material fork steel dimension fixing 105x85 / 77/80x55/60 / Ø9 mm tire …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	35 mm
Wheel type	roulette fixe
Bearing type	roulement à rouleaux
Maximum load capacity	100 kg
Wheel diameter	100 mm
Tread material	PU / TPU
rim	PP
Overall height	128 mm
hub length mm	40 mm
Fork mounting	fixation platine
rim colour	gris argent RAL 7001
material fork	métal
Brake type	sans frein
dimension fixing	105x85 / 77/80x55/60 / Ø9 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2 mm
tire	TPU
tire colour	bleu ciel RAL 5015
tolerance hardness	+/-3
hardness Shore A	92 Shore A
diameter axle bore	15 mm
colour support/housing	zingué
