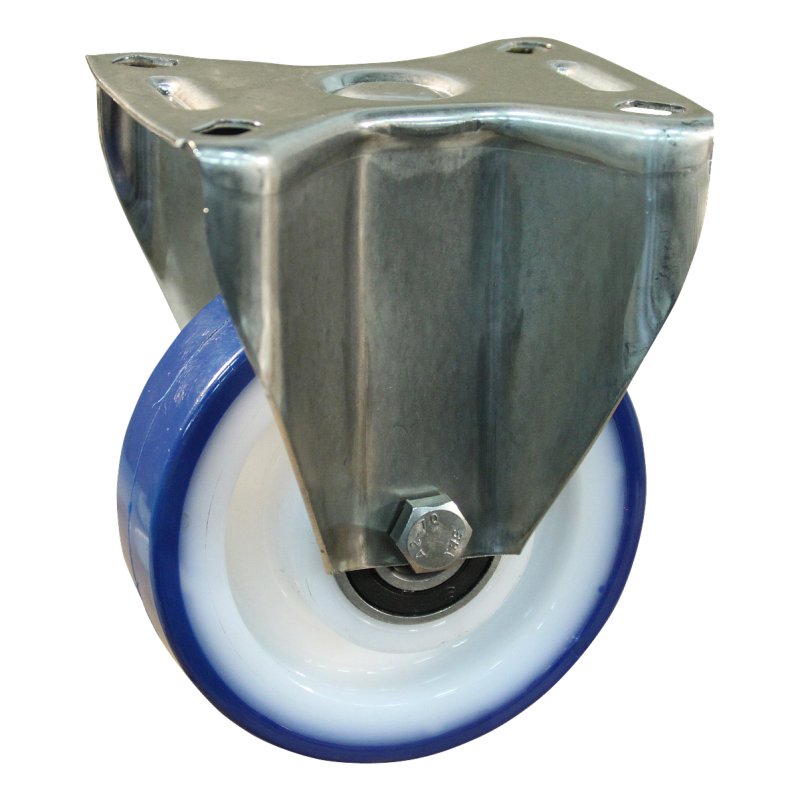

fixed castor 100mm series 27 ᠆ 30 plate mounting Stainless steel ball bearing

Reference : 327.108.306.001

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type fixed castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type stainless steel ball bearing Brake type no brake Tread material PU / TPU Overall height 127 mm Maximum load capacity 130 kg width 30 mm rim PA rim colour natural diameter axle bore 35x11 mm diameter axle bore fork 8 mm hub length mm 40 mm hub-to-fork length 40 mm material fork SS dimension f…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	30 mm
Wheel type	roulette fixe
Bearing type	roulement à billes en inox
Maximum load capacity	130 kg

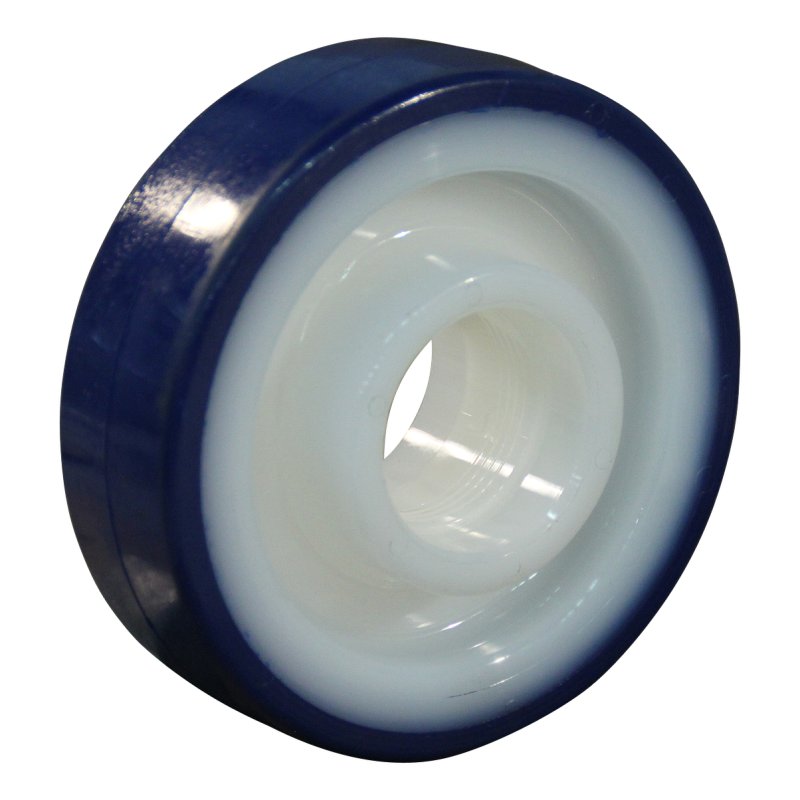

Wheel diameter	100 mm
Tread material	PU / TPU
rim	PA
Overall height	127 mm
hub length mm	40 mm

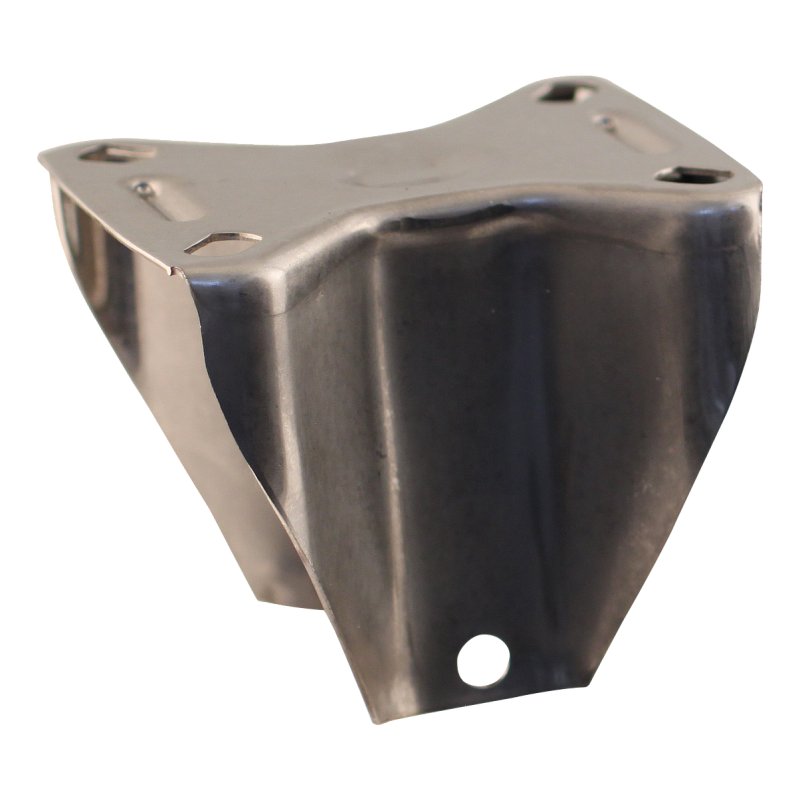

Fork mounting	fixation platine
rim colour	naturel
material fork	inox
Brake type	sans frein
dimension fixing	100x84 / 80x60 / Ø9 mm
diameter axle bore fork	8 mm
hub-to-fork length	40 mm
tire	TPU
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	97 Shore A

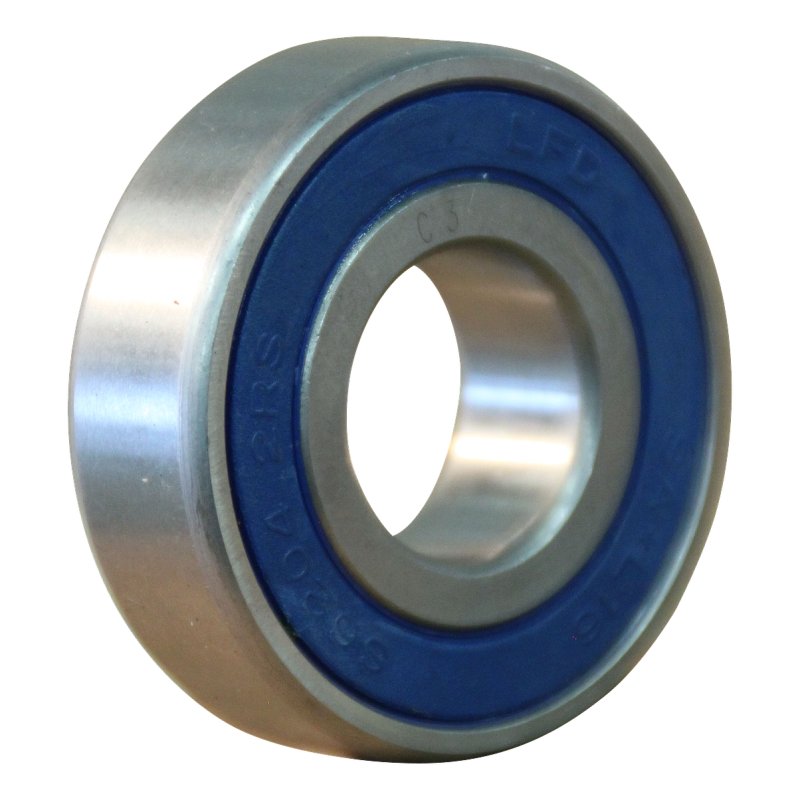

outside diameter	Ø35 mm
bore diameter	Ø15 mm
bearing width	11 mm
