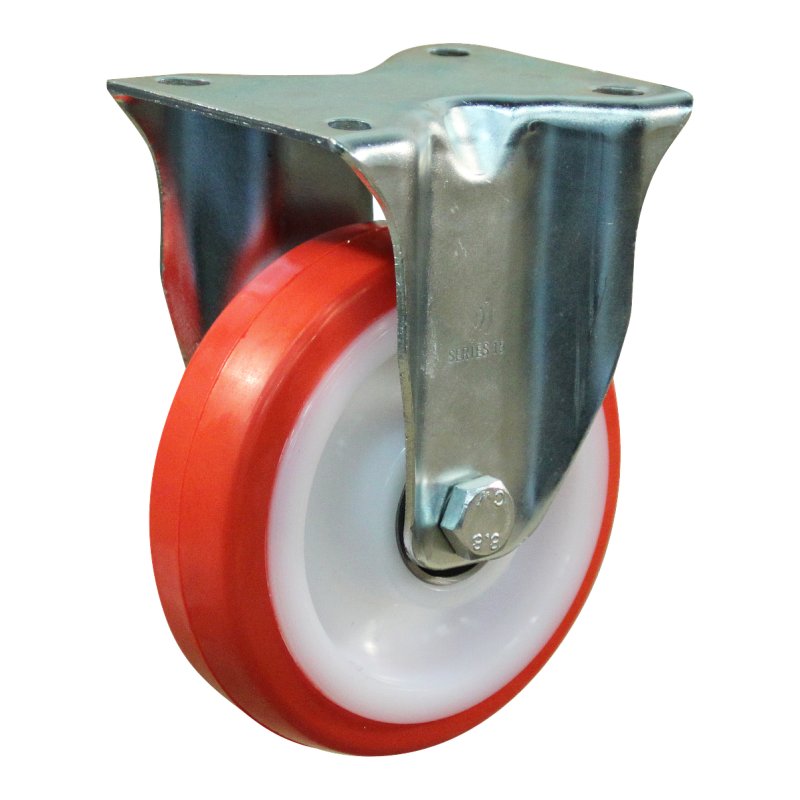

fixed castor 100mm series 27 ᠆ plate mounting ball bearing

Reference : 327.106.156.000

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type fixed castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 128 mm Maximum load capacity 200 kg width 35 mm rim PA rim colour natural diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2 mm colour support/housing zinc plated material fork steel dimension fi…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	35 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	200 kg
Wheel diameter	100 mm
Tread material	PU / TPU
rim	PA
Overall height	128 mm
hub length mm	40 mm

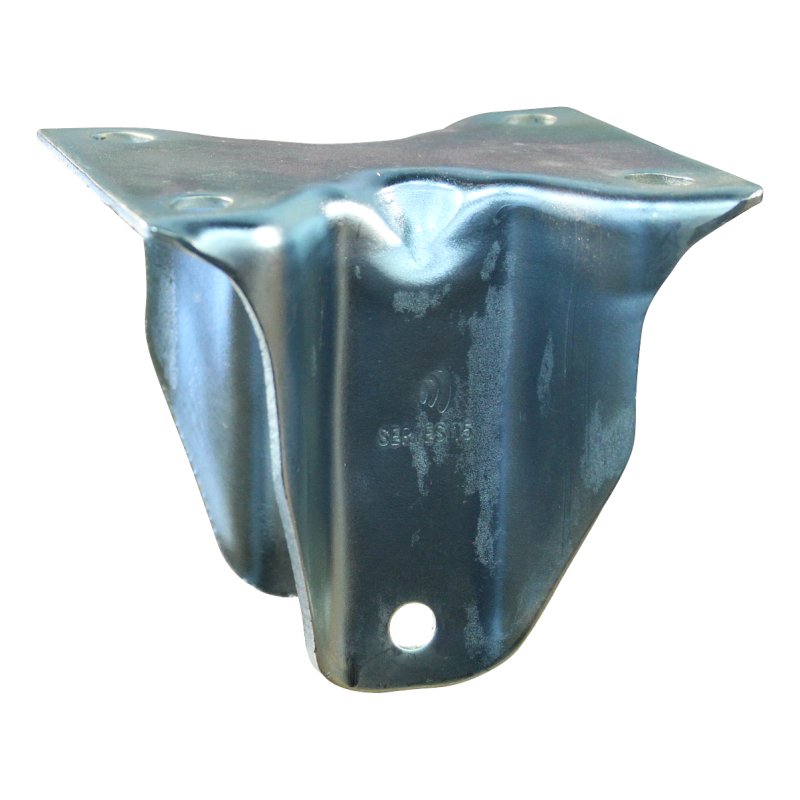

Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	105x85 / 77/80x55/60 / Ø9 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2 mm

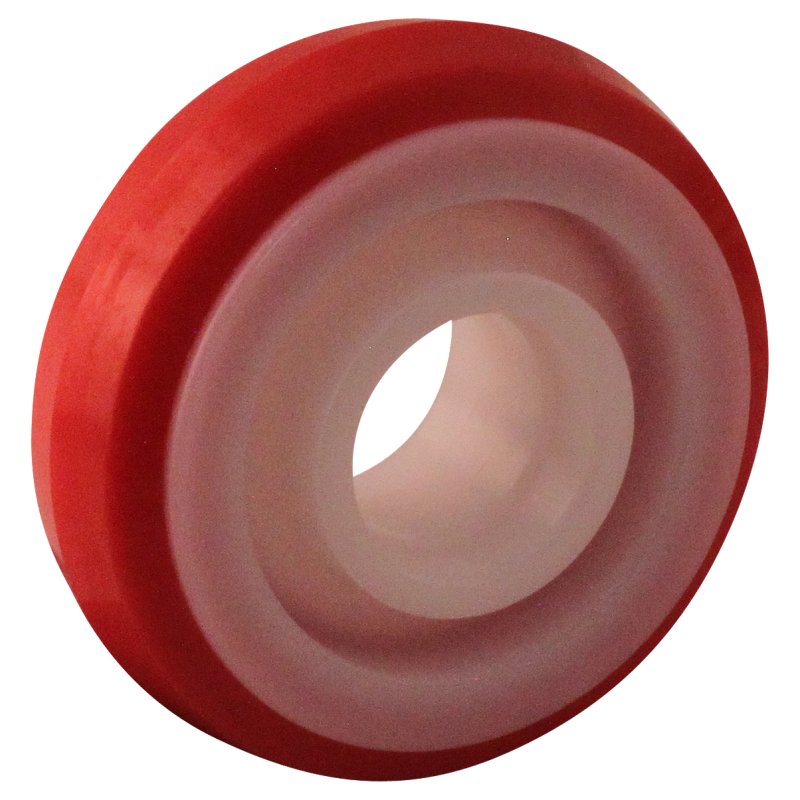

tire	TPU
tire colour	pneu orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A
colour support/housing	zingué
outside diameter	35 mm
bore diameter	15 mm
bearing width	11 mm

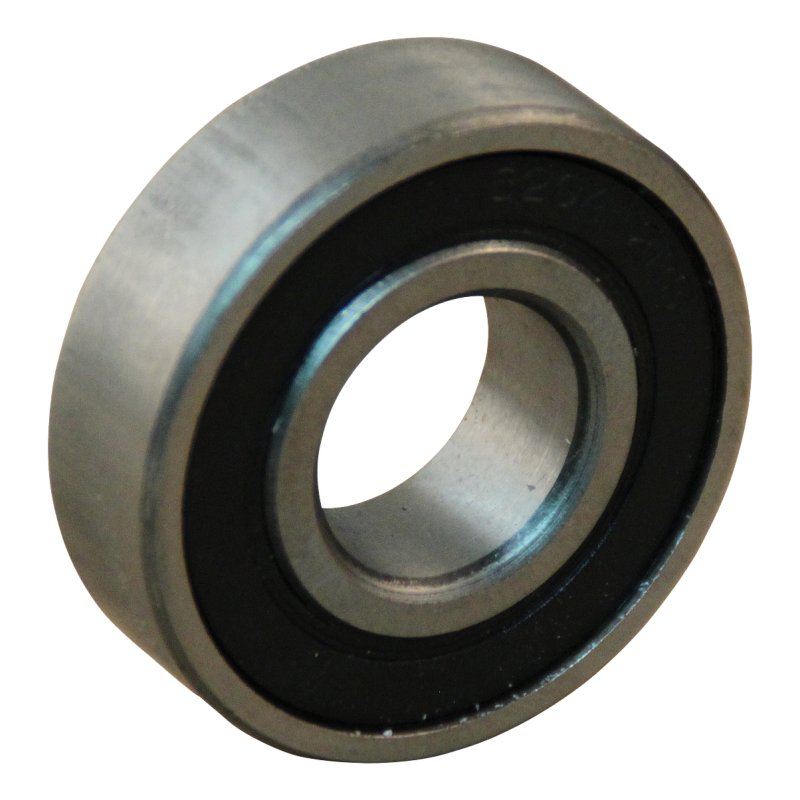

bearing type	6202 2RS C3
