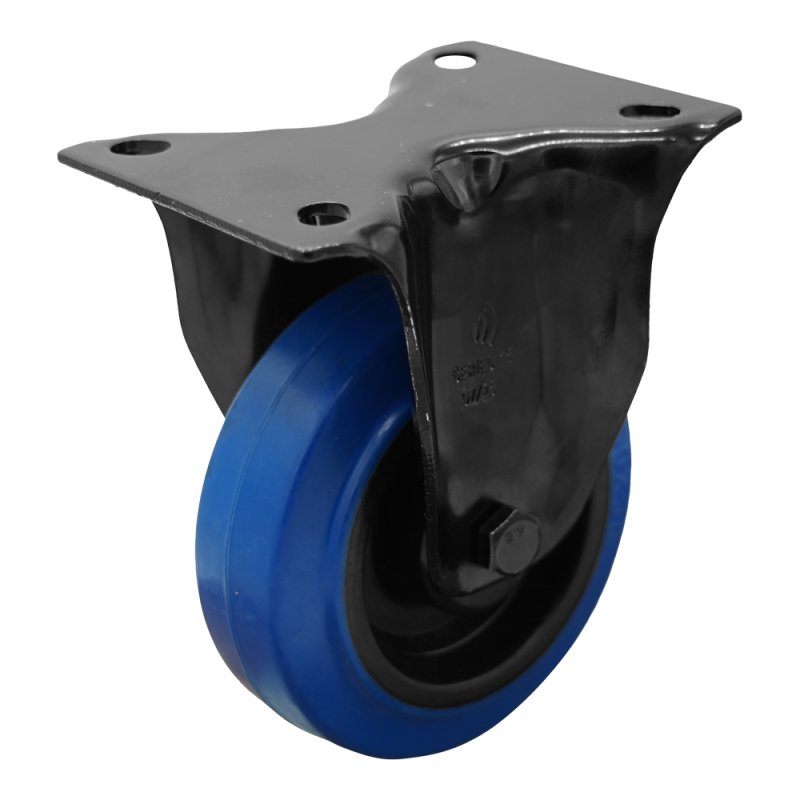

fixed castor 125mm Novio Black series 13 ᠆ 15 plate mounting roller bearing

Reference : 313.122.156.003

Brand Novio Application Transportwheels Wheel type fixed castor Wheel diameter 125 mm Novio Black Novio Black Fork mounting plate mounting Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 155 mm Maximum load capacity 200 kg width 36 mm rim PA rim colour jet black RAL 9005 diameter axle bore 12 mm diameter axle bore fork 10,2 mm hub length mm 50 mm hub-to-fork length 52 +2 mm colour support/housing jet black RAL 9005 material fork steel dimension fixing …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	36 mm
Wheel type	roulette fixe
Bearing type	roulement à rouleaux
Maximum load capacity	200 kg
Wheel diameter	125 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	155 mm
hub length mm	50 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	105x85 / 77/ 80x55/60 / Ø9 mm
diameter axle bore fork	10,2 mm
hub-to-fork length	52 +2 mm
tire	caoutchouc souple
tire colour	bleu gentiane RAL 5010
tolerance hardness	+/-3
hardness Shore A	64 Shore A
diameter axle bore	12 mm
colour support/housing	noir foncé RAL 9005
Novio Black	Novio Noir
