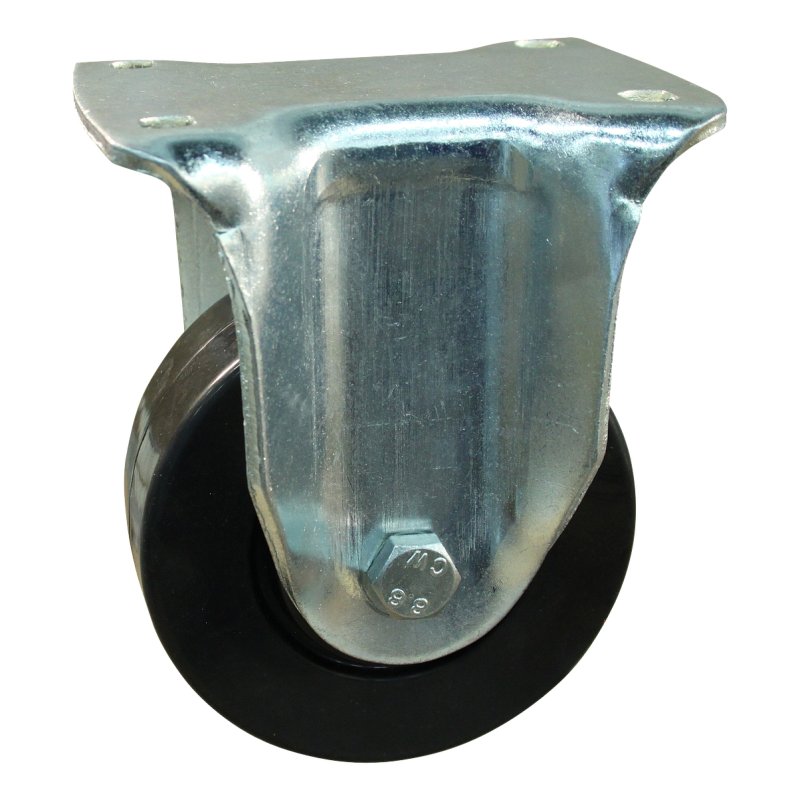

fixed castor 125mm series 05 ᠆ 14 plate mounting ball bearing

Reference : 305.126.146.050

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material rubber / TPE Overall height 171 mm Maximum load capacity 240 kg width 49 mm rim PA rim colour jet black RAL 9005 diameter axle bore 12 mm diameter axle bore fork 12,5 mm hub length mm 60 mm hub-to-fork length 60 mm colour support/housing bright galvanized material fork steel dimens…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	49 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	240 kg
Wheel diameter	125 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	171 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	135x105 / 105x75/80 / Ø10 mm
diameter axle bore fork	12,5 mm
hub-to-fork length	60 mm
tire	caoutchouc souple
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4
hardness Shore A	65 Shore A
diameter axle bore	12 mm
colour support/housing	zingué brillant
