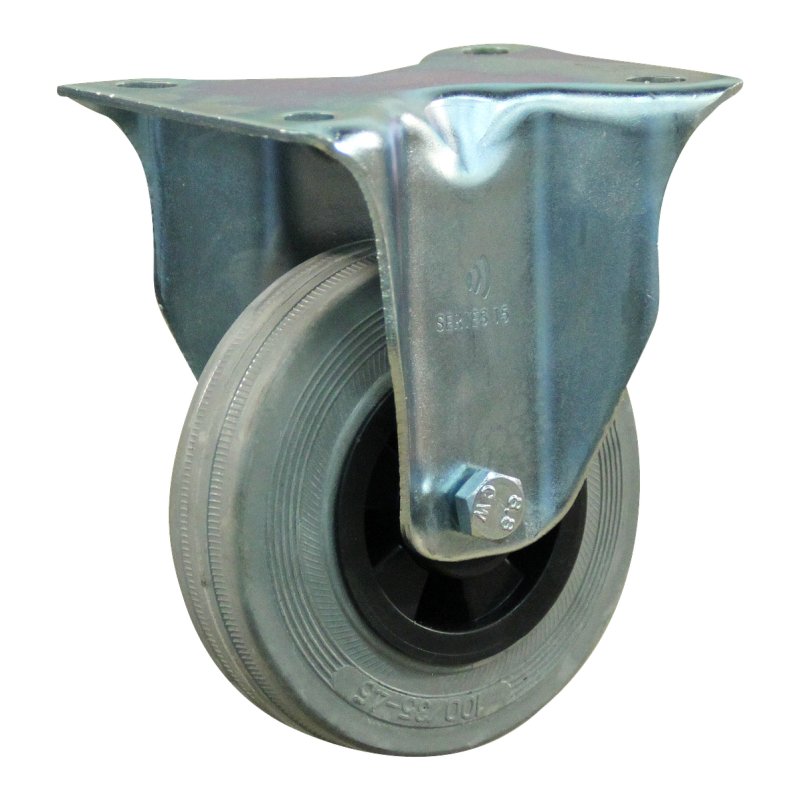

fixed castor 125mm series 11 ᠆ 15 plate mounting plain bore

Reference : 311.121.156.000

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material rubber / TPE Overall height 154.5 mm Maximum load capacity 100 kg width 37 mm rim PP rim colour jet black RAL 9005 diameter axle bore 15 mm diameter axle bore fork 10,2 mm hub length mm 48 mm hub-to-fork length 52 +2 mm colour support/housing zinc plated material fork steel dimens…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	37 mm
Wheel type	roulette fixe
Bearing type	palier lisse
Maximum load capacity	100 kg
Wheel diameter	125 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	154,5 mm
hub length mm	48 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	105x85 / 77/ 80x55/60 / Ø9 mm
diameter axle bore fork	10,2 mm
hub-to-fork length	52 +2 mm
tire	caoutchouc standard
tire colour	gris argent RAL 7001
tolerance hardness	+/-3°
hardness Shore A	80 Shore A
diameter axle bore	15 mm
colour support/housing	zingué
