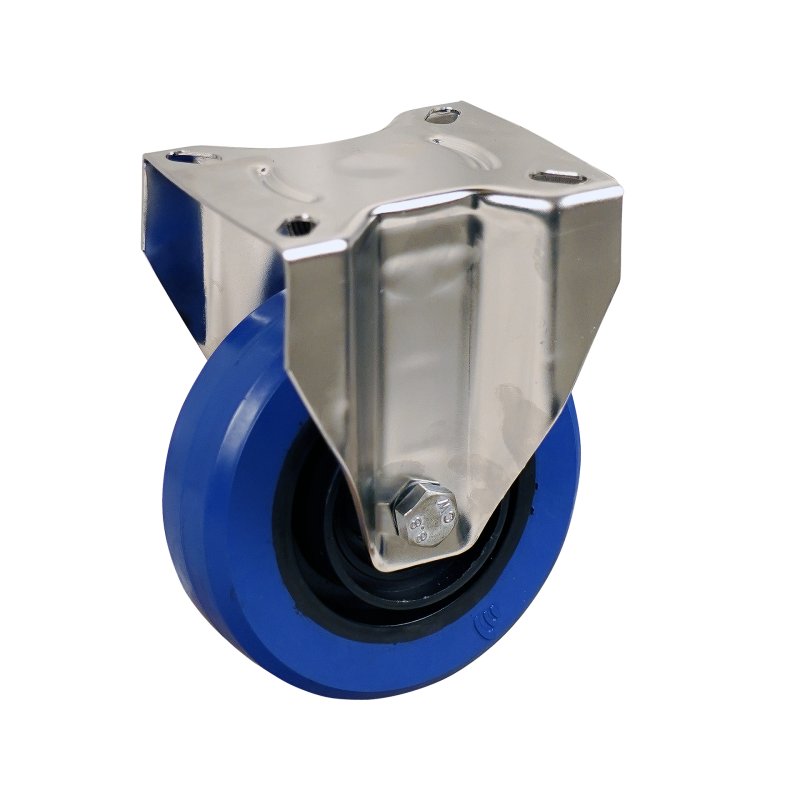

fixed castor 125mm series 13 ᠆ 31 plate mounting ball bearing

Reference : 313.126.316.000

Brand Novio Application Transportwheels Wheel type fixed castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material rubber / TPE Overall height 154.5 mm Maximum load capacity 180 kg width 36 mm rim PA rim colour jet black RAL 9005 diameter axle bore fork 10 mm hub length mm 50 mm hub-to-fork length 49 mm material fork SS dimension fixing 105x85 / 80x60 / Ø9x16 mm tire elastic rubber tire colour gentian blue RAL 5010 hardness Shore A 64…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	36 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	180 kg
Wheel diameter	125 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	154,5 mm
hub length mm	50 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	inox
Brake type	sans frein
dimension fixing	105x85 / 80x60 / Ø9x16 mm
diameter axle bore fork	10 mm
hub-to-fork length	49 mm
tire	caoutchouc souple
tire colour	bleu gentiane RAL 5010
tolerance hardness	+/-3
hardness Shore A	64 Shore A
