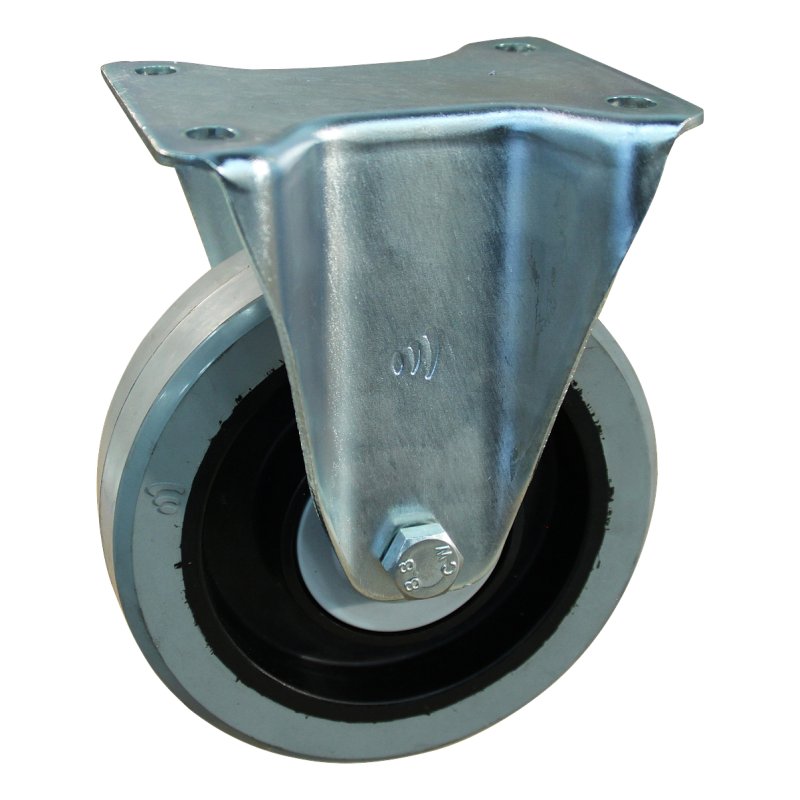

fixed castor 125mm series 14 ᠆ 12 plate mounting ball bearing

Reference : 314.126.126.050

Brand Novio Application Transportwheels Wheel type fixed castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material rubber / TPE Overall height 165.5 mm Maximum load capacity 180 kg width 36 mm rim PA rim colour jet black RAL 9005 diameter axle bore fork 10,2 +0,01/-0,0 mm hub length mm 50 mm hub-to-fork length 52 +/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing 135x110 / 105x76/84 / Ø11 mm tire elastic…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	36 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	180 kg
Wheel diameter	125 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	165,5 mm
hub length mm	50 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	135x110 / 105x76/84 / Ø11 mm
hub-to-fork length	52 +/-0,5 mm
tire	caoutchouc souple
tire colour	gris argent RAL 7001
tolerance hardness	+/-3
hardness Shore A	70 Shore A
colour support/housing	zingué
