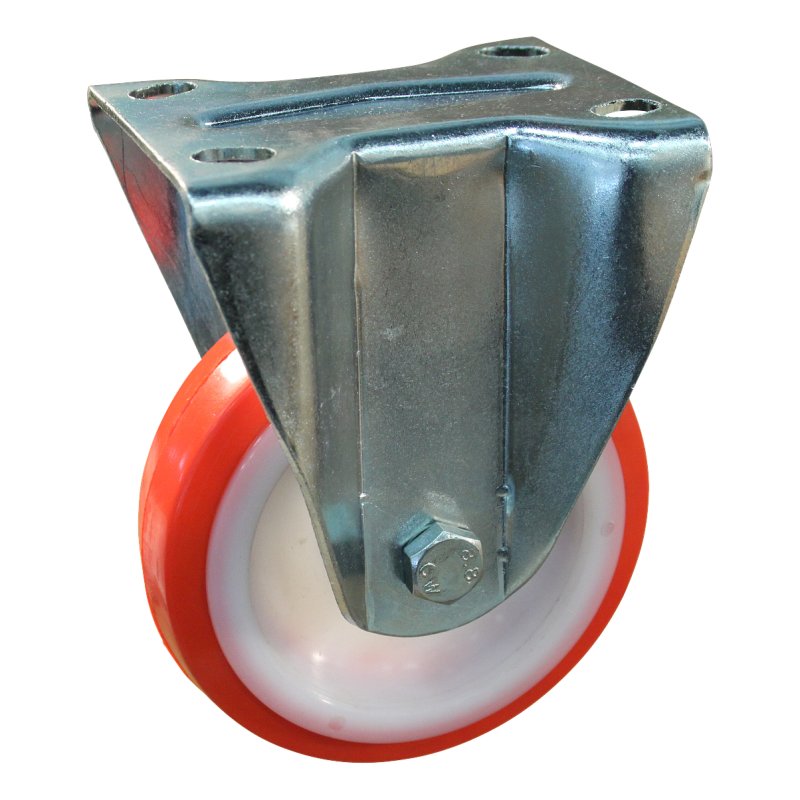

fixed castor 125mm series 27 ᠆ 19 plate mounting roller bearing

Reference : 327.122.196.000

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type fixed castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type roller bearing Brake type no brake Tread material PU / TPU Overall height 158.5 mm Maximum load capacity 250 kg width 35 mm rim PA rim colour natural diameter axle bore 15 mm diameter axle bore fork 10 mm hub length mm 45 mm hub-to-fork length 53 mm colour support/housing zinc plated materia…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	35 mm
Wheel type	roulette fixe
Bearing type	roulement à rouleaux
Maximum load capacity	250 kg
Wheel diameter	125 mm
Tread material	PU / TPU
rim	PA
Overall height	158,5 mm
hub length mm	45 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	95x110 / 60x80 / Ø11-16 mm
diameter axle bore fork	10 mm
hub-to-fork length	53 mm
tire	TPU
tire colour	orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A
diameter axle bore	15 mm
colour support/housing	zingué
