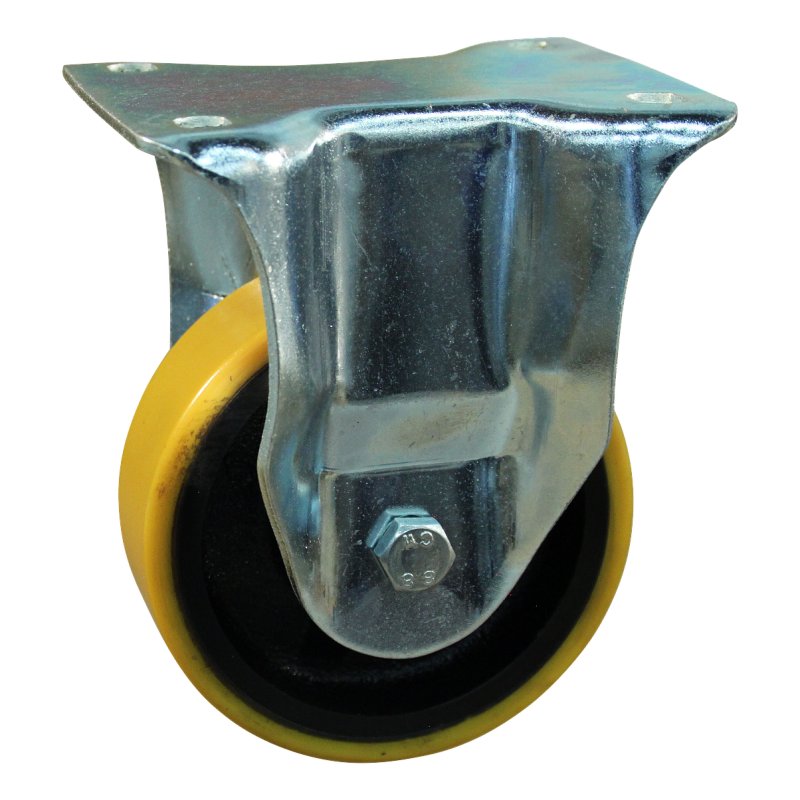

fixed castor 125mm series 28 ᠆ 14 plate mounting ball bearing

Reference : 328.126.146.030

Brand Novio Application Heavy duty wheels Transportwheels Industry Agriculture and horticulture Industry and internal logistics Wheel type fixed castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material CPU Overall height 169.5 mm Maximum load capacity 300 kg width 28 mm rim cast iron rim colour jet black RAL 9005 diameter axle bore fork 12,5 mm hub length mm 35 mm hub-to-fork length 46 mm colour support/housing zinc plated material f…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie et logistique interne
Application	Roulettes fortes charges Roue de transport
width	28 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	300 kg
Wheel diameter	125 mm
Tread material	CPU
rim	fonte
Overall height	169,5 mm
hub length mm	35 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	135x105 / 105x75/80 / Ø10,5 mm
diameter axle bore fork	12,5 mm
hub-to-fork length	46 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
colour support/housing	zingué
outside diameter	35 mm
bore diameter	15 mm
bearing width	11 mm

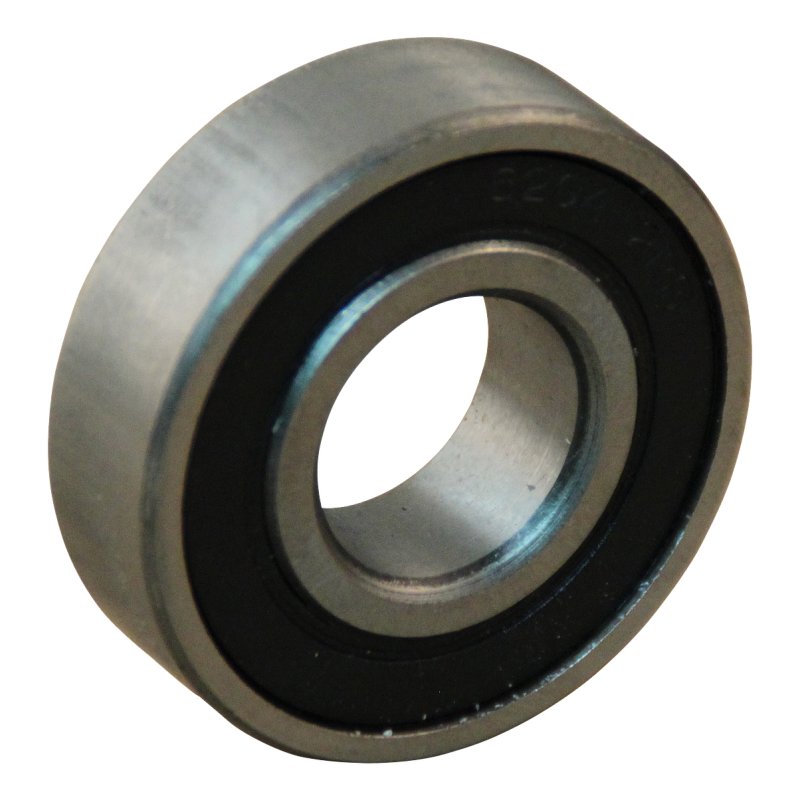

bearing type	6202 2RS C3
