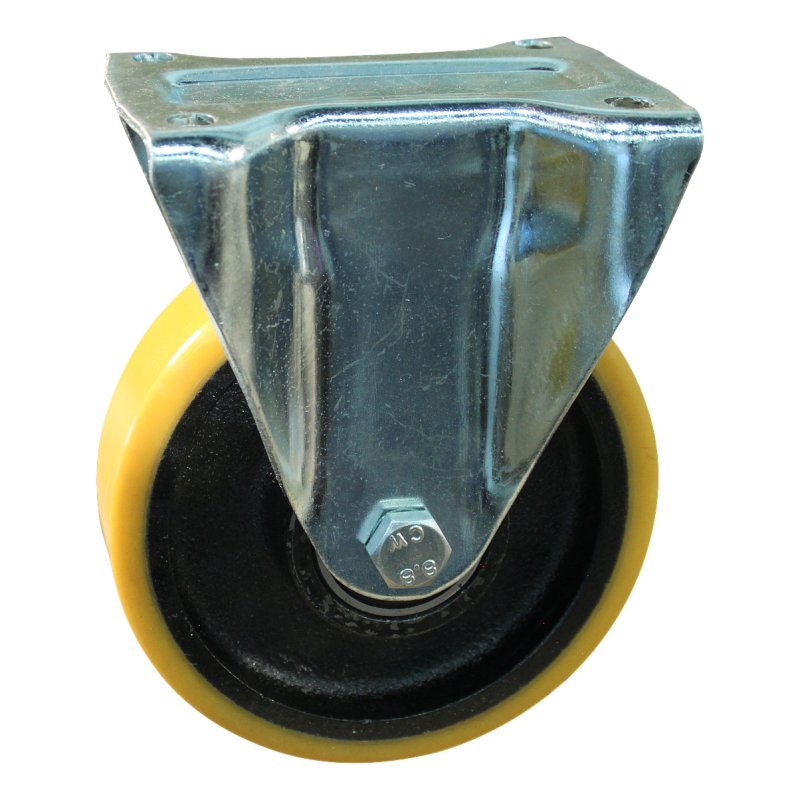

fixed castor 125mm series 28 ᠆ 91 plate mounting ball bearing

Reference : 328.126.916.050

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material CPU Overall height 164.5 mm Maximum load capacity 250 kg width 50 mm rim cast iron rim colour jet black RAL 9005 diameter axle bore 20 mm diameter axle bore fork 12 mm hub length mm 57 mm hub-to-fork length 62 mm colour support/housing zinc plated material fork steel dimension fixi…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	50 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	250 kg
Wheel diameter	125 mm
Tread material	CPU
rim	fonte
Overall height	164,5 mm
hub length mm	57 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	135x105 / 105x80 / Ø11 mm
diameter axle bore fork	12 mm
hub-to-fork length	62 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
