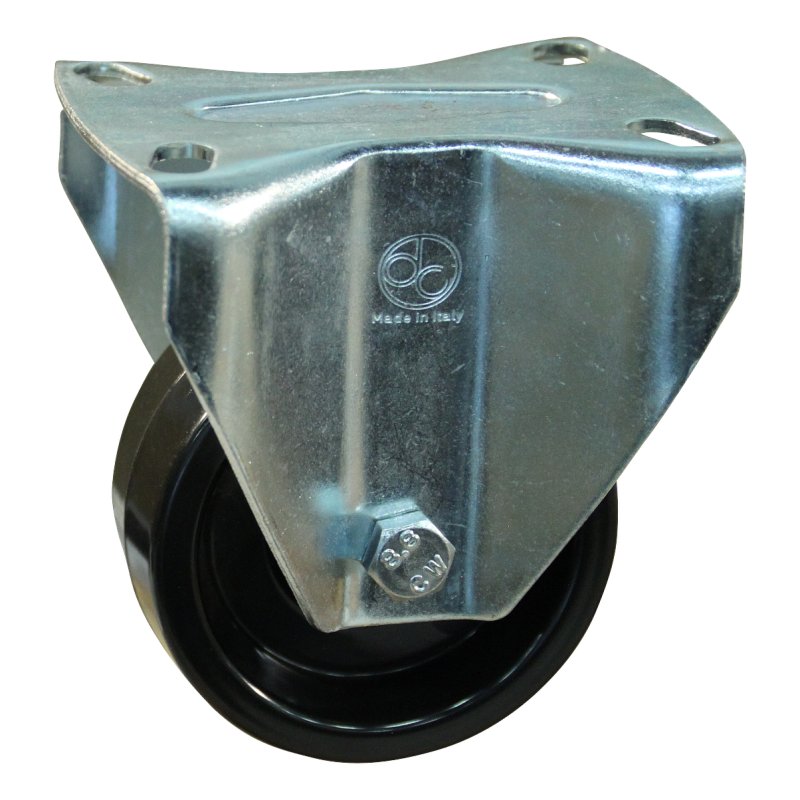

fixed castor 125mm serie 35 ᠆ 09 plate mounting plain bore

Reference : 335.121.096.000

Brand Novio Application Heat resistant wheels Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type fixed castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material plastic Overall height 154.5 mm Maximum load capacity 250 kg width 40 mm rim Ditherm rim colour jet black RAL 9005 diameter axle bore 20 mm diameter axle bore fork 8,2 mm hub length mm 48 mm hub-to-fork length 48 mm mater…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue résistante à la chaleur Roue de transport
width	40 mm
Wheel type	roulette fixe
Bearing type	palier lisse
Maximum load capacity	250 kg
Wheel diameter	125 mm
Tread material	plastique
rim	Ditherm
Overall height	154,5 mm
hub length mm	48 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	100x85 / 80x60 / Ø9 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	48 mm
diameter axle bore	20 mm
temperature range	-40°C +300°C
