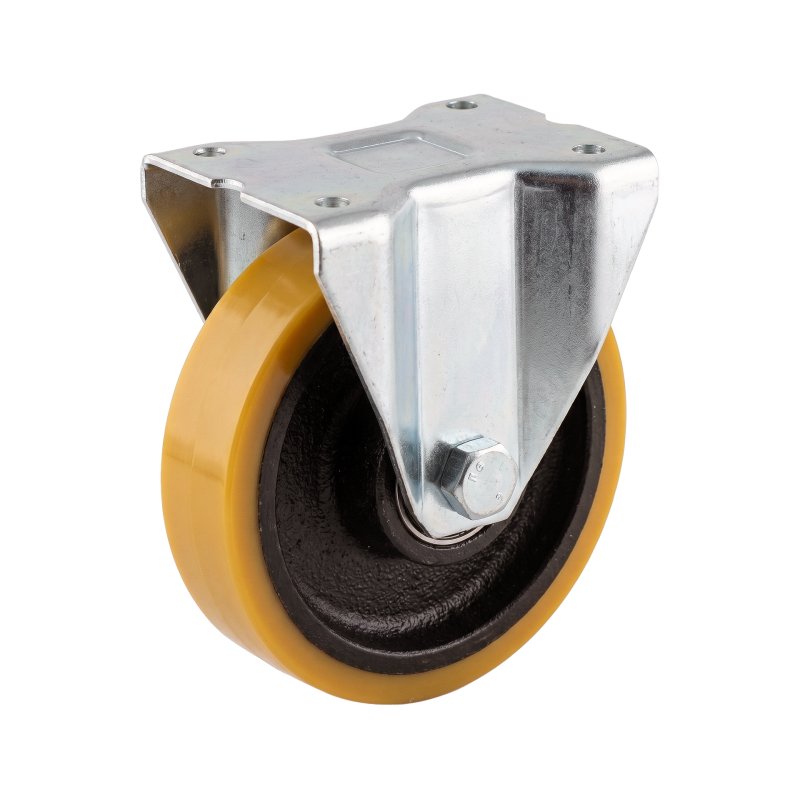

fixed castor 150mm series 28 ᠆ 91 plate mounting ball bearing

Reference : 328.156.916.030

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 150 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material CPU Overall height 183 mm Maximum load capacity 250 kg width 30 mm rim cast iron rim colour jet black RAL 9005 diameter axle bore 20 mm diameter axle bore fork 10,2 mm hub length mm 45 mm hub-to-fork length 52 mm colour support/housing zinc plated material fork steel dimension fixi…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	30 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	250 kg
Wheel diameter	150 mm
Tread material	CPU
rim	fonte
Overall height	183 mm
hub length mm	45 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	105x80 / 80x60 / Ø9 mm
diameter axle bore fork	10,2 mm
hub-to-fork length	52 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
