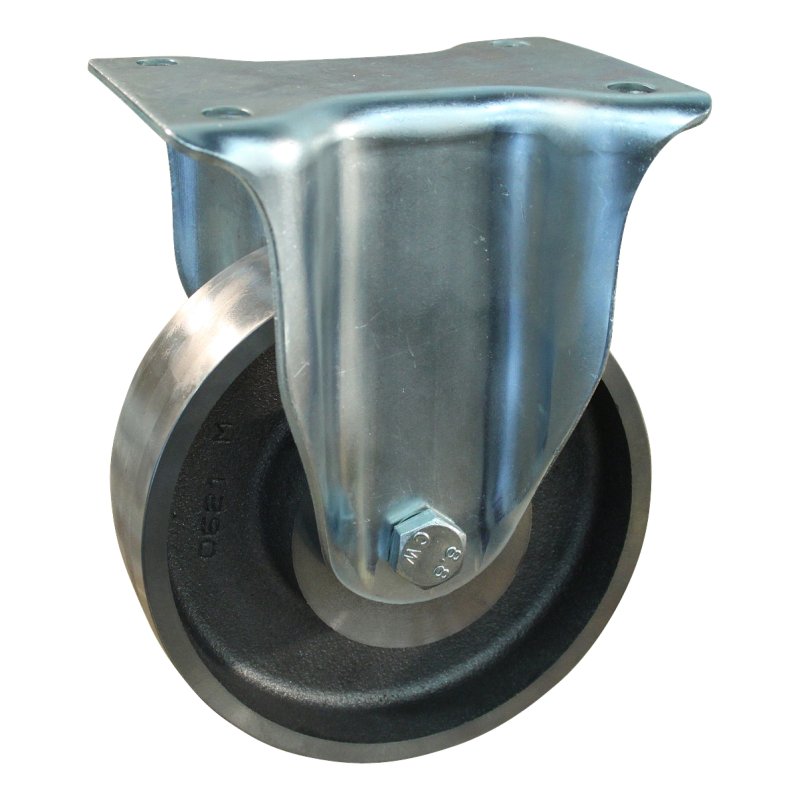

fixed castor 150mm serie 45 ᠆ 14 plate mounting plain bore

Reference : 345.151.146.050

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 150 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material cast iron / steel Overall height 195 mm Maximum load capacity 1000 kg width 50 mm rim cast iron diameter axle bore 20 mm diameter axle bore fork 12,5 mm hub length mm 60 mm hub-to-fork length 63 +2/-0 mm colour support/housing zinc plated material fork steel dimension fixing 140x1…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	50 mm
Wheel type	roulette fixe
Bearing type	palier lisse
Maximum load capacity	1 000 kg
Wheel diameter	150 mm
Tread material	fonte / acier

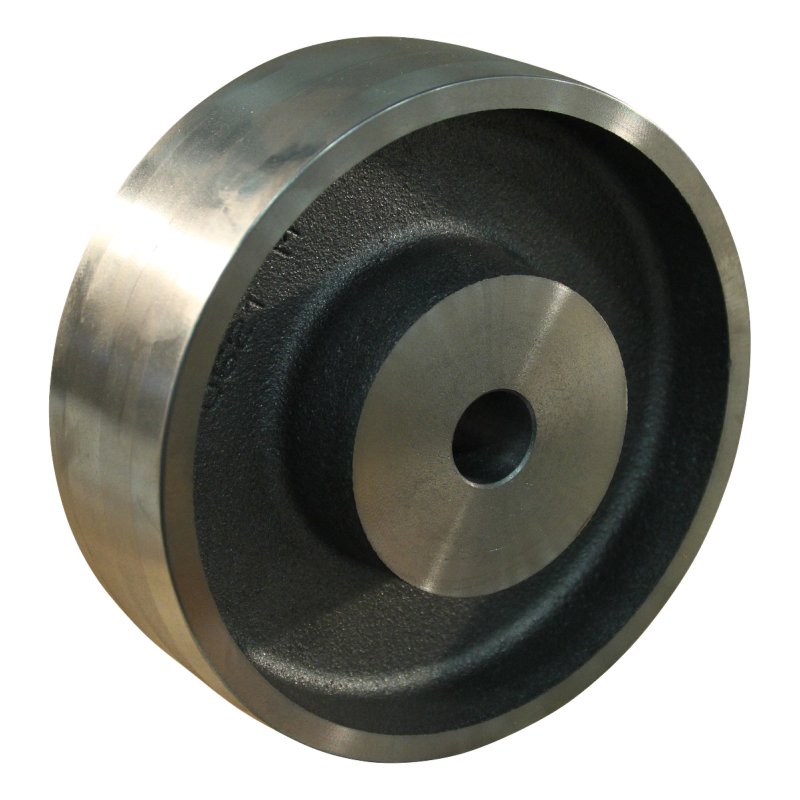

rim	fonte
Overall height	195 mm
hub length mm	60 mm

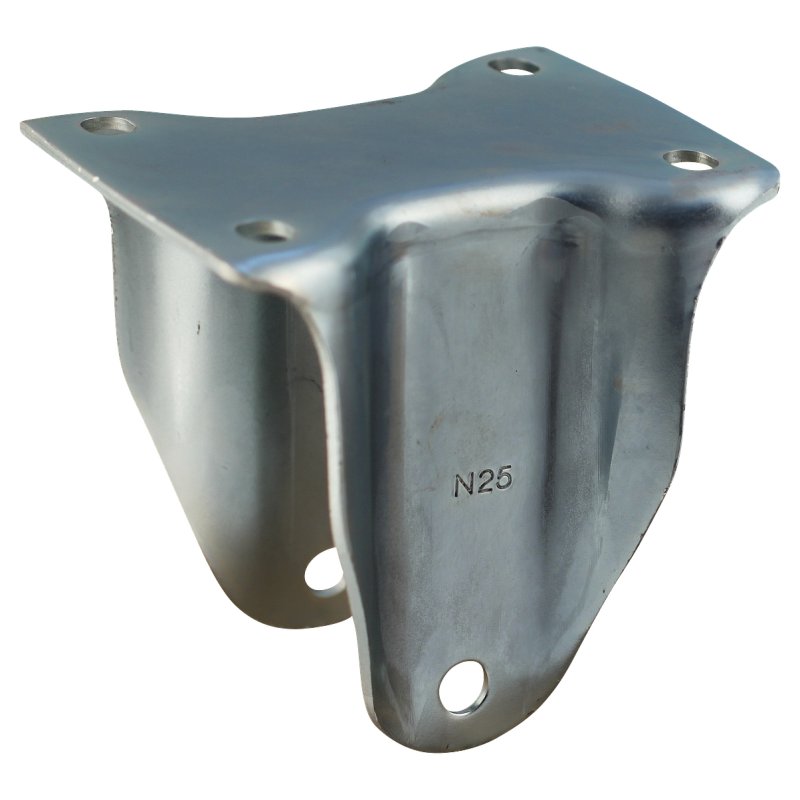

Fork mounting	fixation platine
material fork	métal
Brake type	sans frein
dimension fixing	140x105 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,5 mm
hub-to-fork length	63 +2/-0 mm
diameter axle bore	20 mm
colour support/housing	zingué
