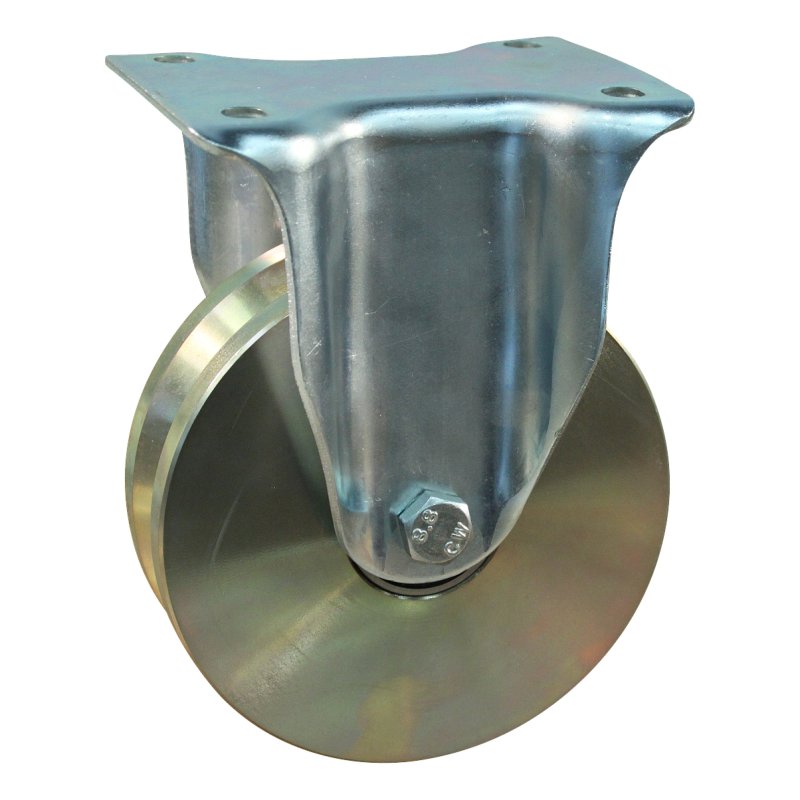

fixed castor 150mm series 744 ᠆ 14 plate mounting ball bearing

Reference : 344.156.146.000

Brand Novio Application Flanged wheels Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 150 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material cast iron / steel Overall height 195 mm Maximum load capacity 1000 kg diameter axle bore fork 12,5 mm hub-to-fork length 63 +2/-0 mm hub length mm 50 colour support/housing zinc plated material fork steel dimension fixing 140x105 / 105x75/80 / Ø11 mm outside diameter…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roues et roulettes à boudin Roue de transport
Wheel type	roulette fixe

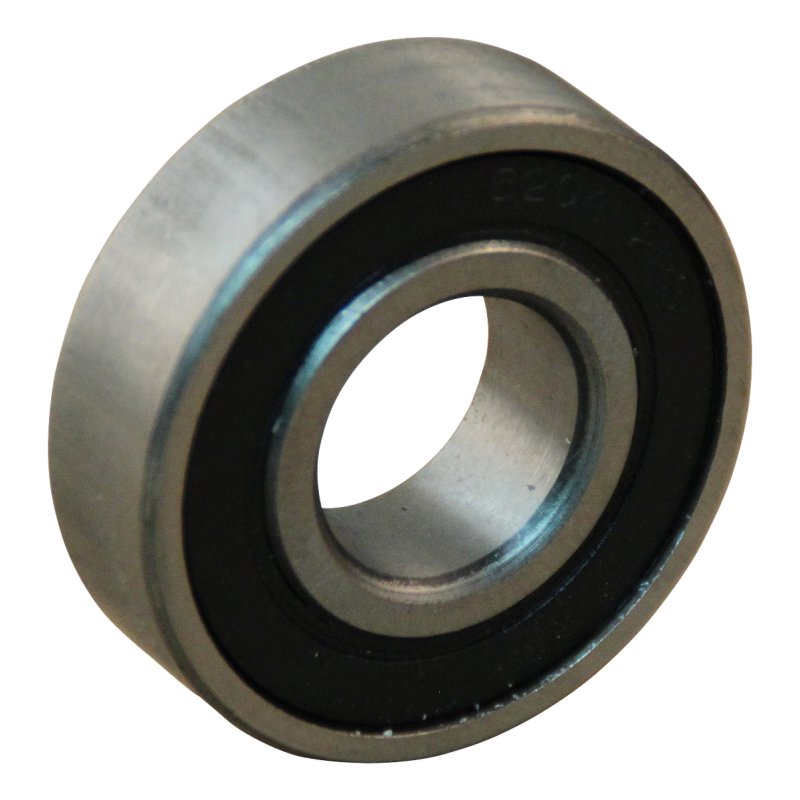

Bearing type	roulement à billes
Maximum load capacity	1 000 kg

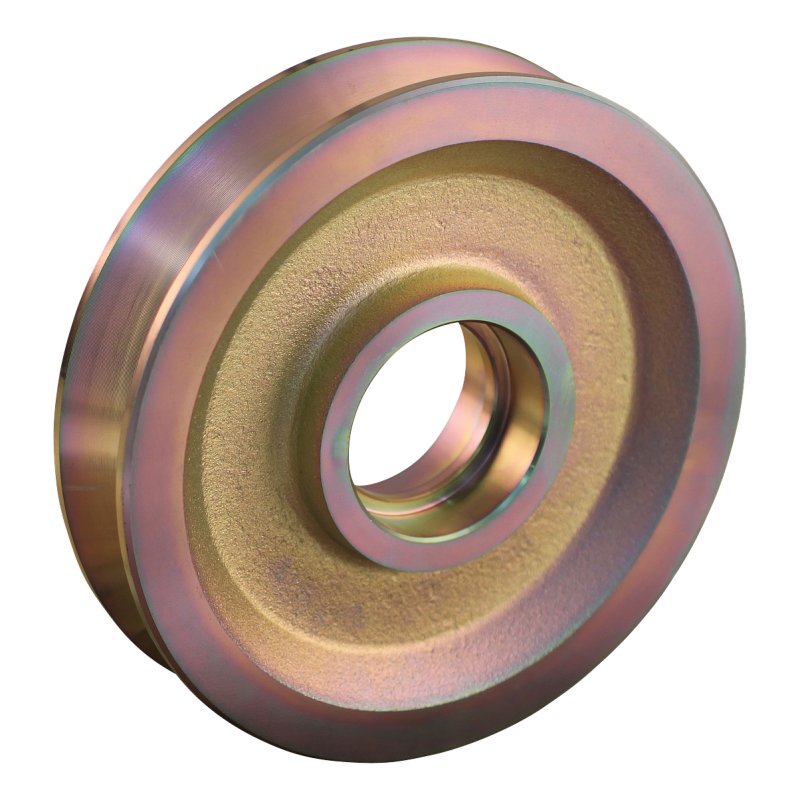

Wheel diameter	150 mm
Tread material	fonte / acier
Overall height	195 mm
hub length mm	50 m

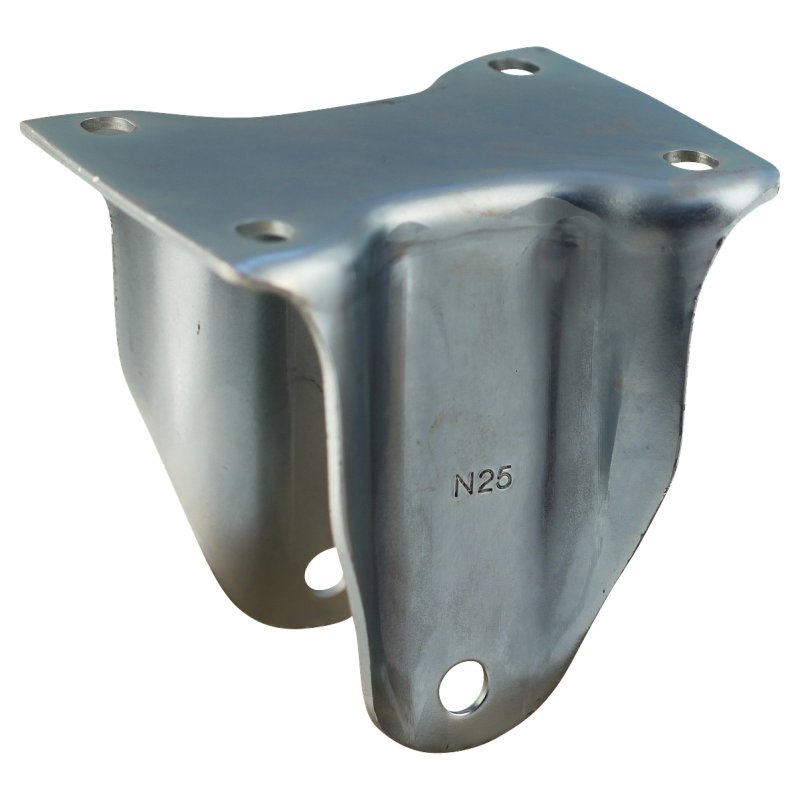

Fork mounting	fixation platine
material fork	métal
Brake type	sans frein
dimension fixing	140x105 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,5 mm
hub-to-fork length	63 +2/-0 mm
colour support/housing	zingué
outside diameter	47 mm
bore diameter	20 mm
bearing width	14 mm
