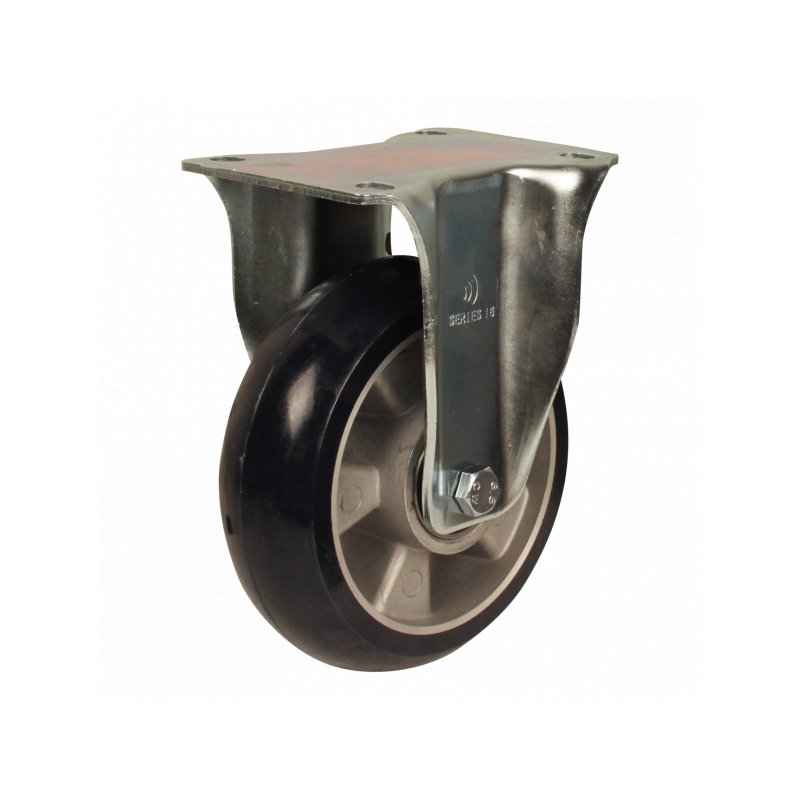

fixed castor 160mm series 03 ᠆ 16 plate mounting ball bearing

Reference : 303.166.166.051

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 160 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 200 mm Maximum load capacity 550 kg width 50 mm rim aluminium ADC12 (A383) diameter axle bore 20 mm diameter axle bore fork 12,2 mm hub length mm 60 mm hub-to-fork length 60 +1,5/-0 mm colour support/housing zinc plated material fork steel dimension fixing 1…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	50 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	550 kg
Wheel diameter	160 mm
Tread material	PU / TPU
rim	aluminium ADC12 (A383)
Overall height	200 mm
hub length mm	60 mm
Fork mounting	fixation platine
material fork	métal
Brake type	sans frein
dimension fixing	137X105 / 105X74/80 / Ø11 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	60 +1,5/-0 mm
tire	MDI + PTMG soft / Elaxthane
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	75 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
