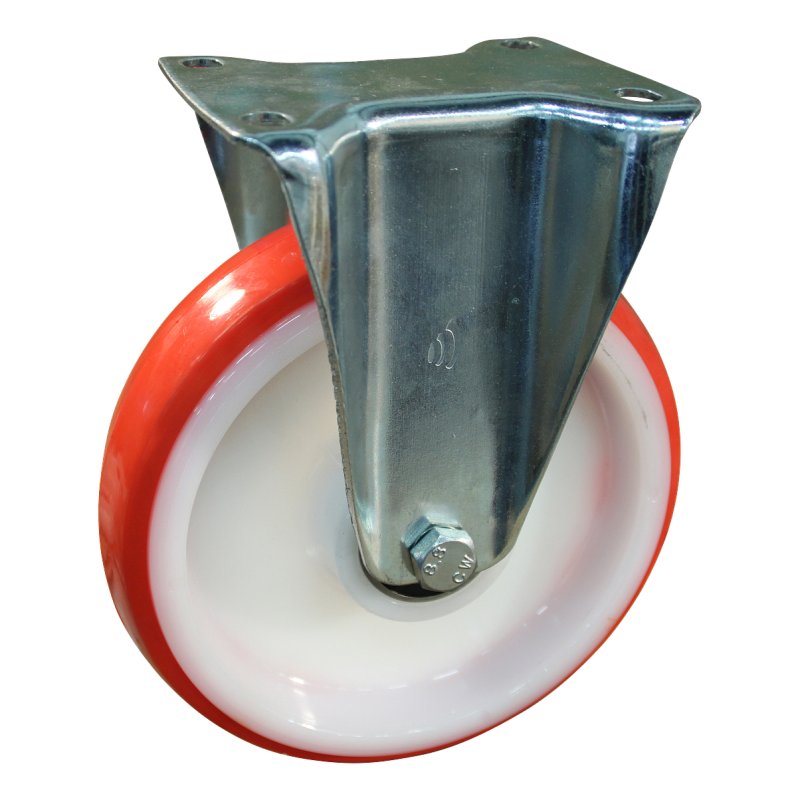

fixed castor 175mm series 27 ᠆ 15 plate mounting ball bearing

Reference : 327.176.156.000

Brand Novio Application Transportwheels Wheel type fixed castor Wheel diameter 175 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 222.5 mm Maximum load capacity 400 kg width 45 mm rim PA rim colour natural diameter axle bore fork 12,2 +0,1/-0,05 mm hub length mm 55 mm hub-to-fork length 62 +1,5/-0,00 mm colour support/housing zinc plated material fork steel dimension fixing 137x105 / 105x74/80 / Ø11 mm tire TPU tire colour or…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	45 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	400 kg
Wheel diameter	175 mm
Tread material	PU / TPU
rim	PA
Overall height	222,5 mm
hub length mm	55 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	137x105 / 105x74/80 / Ø11 mm
hub-to-fork length	62 +1,5/-0,00 mm
tire	TPU
tire colour	orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A
colour support/housing	zingué
outside diameter	47 mm
bore diameter	20 mm
bearing width	14 mm
