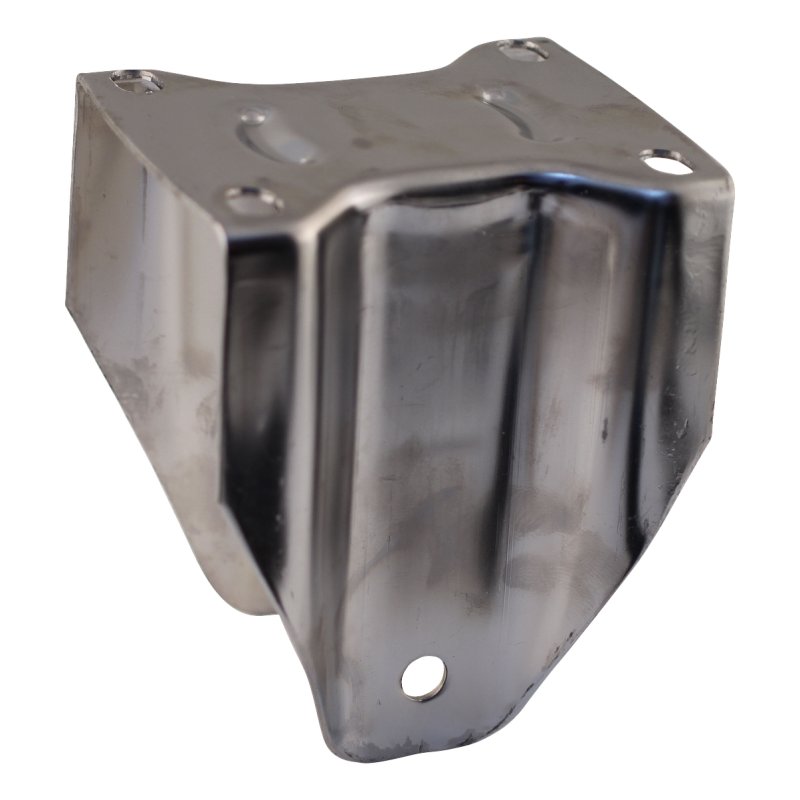

fixed castor 175mm series 27 ᠆ 31 plate mounting plain bore

Reference : 327.171.316.000

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type fixed castor Wheel diameter 175 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material PU / TPU Overall height 224.5 mm Maximum load capacity 350 kg width 40 mm rim PA rim colour natural diameter axle bore 20 mm diameter axle bore fork 12 mm hub length mm 58 mm hub-to-fork length 60 mm material fork SS AISI 304 dimension fixing …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	40 mm
Wheel type	roulette fixe
Bearing type	palier lisse
Maximum load capacity	350 kg
Wheel diameter	175 mm
Tread material	PU / TPU
rim	PA
Overall height	224,5 mm
hub length mm	58 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	inox 304
Brake type	sans frein
dimension fixing	135x110 / 105x80 / Ø11x16 mm
diameter axle bore fork	12 mm
hub-to-fork length	60 mm
tire	TPU
tire colour	pneu orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A
diameter axle bore	20 mm
