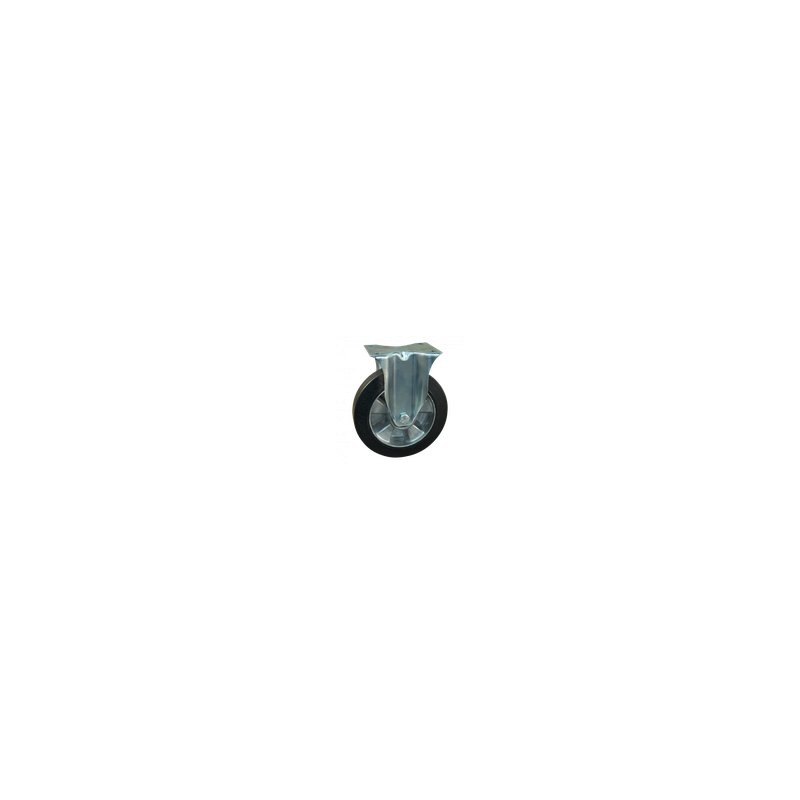

fixed castor 180mm series 10 ᠆ 15 plate mounting ball bearing

Reference : 310.186.156.050

Brand Novio Application Transportwheels Wheel type fixed castor Wheel diameter 180 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material rubber / TPE Overall height 227 mm Maximum load capacity 250 kg width 50 mm rim aluminium ADC12 (A383) diameter axle bore 20 mm diameter axle bore fork 12,2 +0,1/-0,05 mm hub length mm 60 mm hub-to-fork length 62 +1,5/-0,00 mm colour support/housing zinc plated material fork steel dimension fixing 137x105 / 105x74/80 / Ø1…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	50 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	250 kg
Wheel diameter	180 mm
Tread material	caoutchouc / TPE
rim	aluminium ADC12 (A383)
Overall height	227 mm
hub length mm	60 mm
Fork mounting	fixation platine
material fork	métal
Brake type	sans frein
dimension fixing	137x105 / 105x74/80 / Ø11 mm
hub-to-fork length	62 +1,5/-0,00 mm
tire	caoutchouc souple
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4
hardness Shore A	68 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
