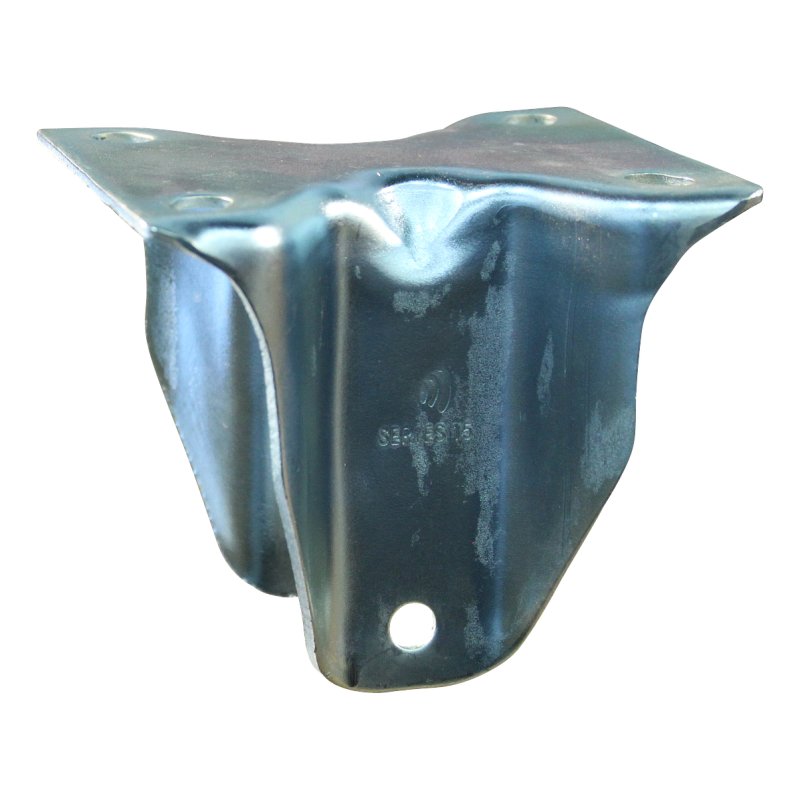

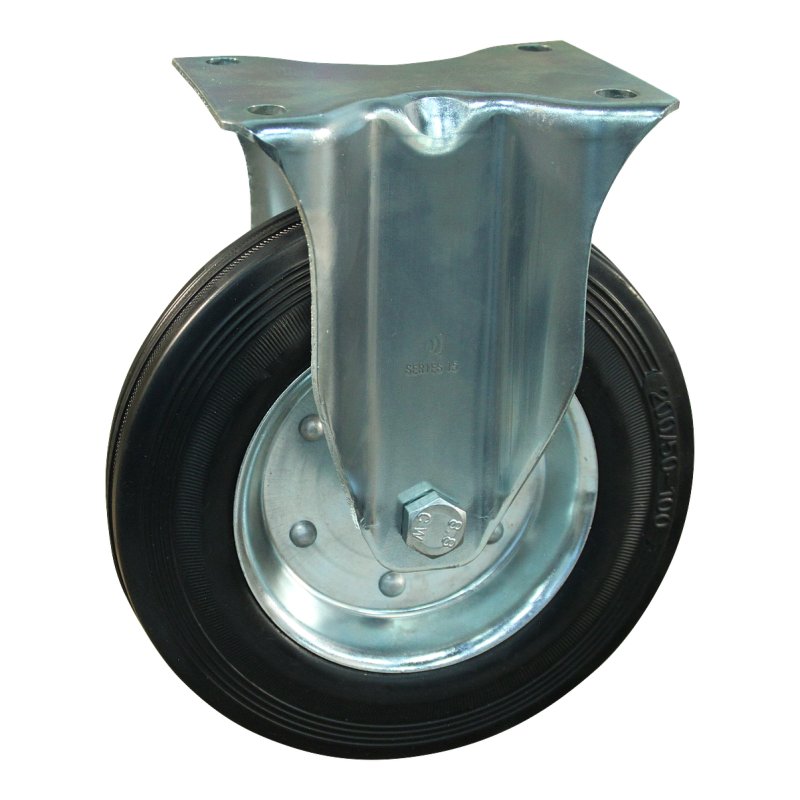

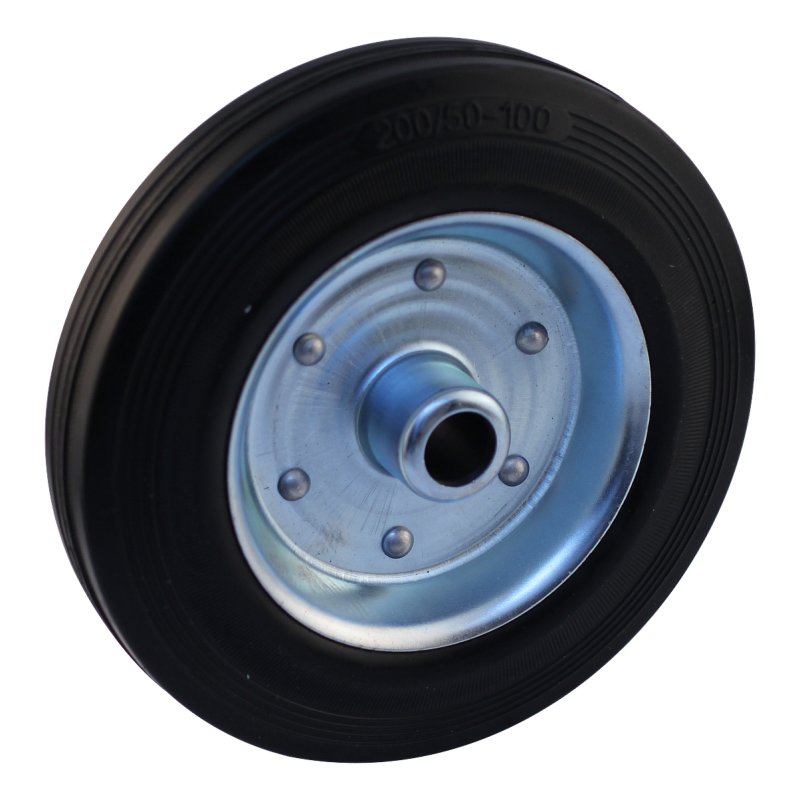

fixed castor 200mm series 02 ᠆ 15 plate mounting plain bore

Reference : 302.201.156.000

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 200 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material rubber / TPE Overall height 235 mm Maximum load capacity 205 kg width 48 mm rim steel rim colour zinc plated diameter axle bore 20 mm diameter axle bore fork 12,2 +0,1/-0,05 mm hub length mm 60 mm hub-to-fork length 62 +1,5/-0,00 mm colour support/housing zinc plated material fork…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	48 mm
Wheel type	roulette fixe
Bearing type	palier lisse
Maximum load capacity	205 kg
Wheel diameter	200 mm
Tread material	caoutchouc / TPE
rim	métal
Overall height	235 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	zingué
material fork	métal
Brake type	sans frein
dimension fixing	137x105 / 105x74/80 / Ø11 mm
hub-to-fork length	62 +1,5/-0,00 mm
tire	caoutchouc standard
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	80 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
