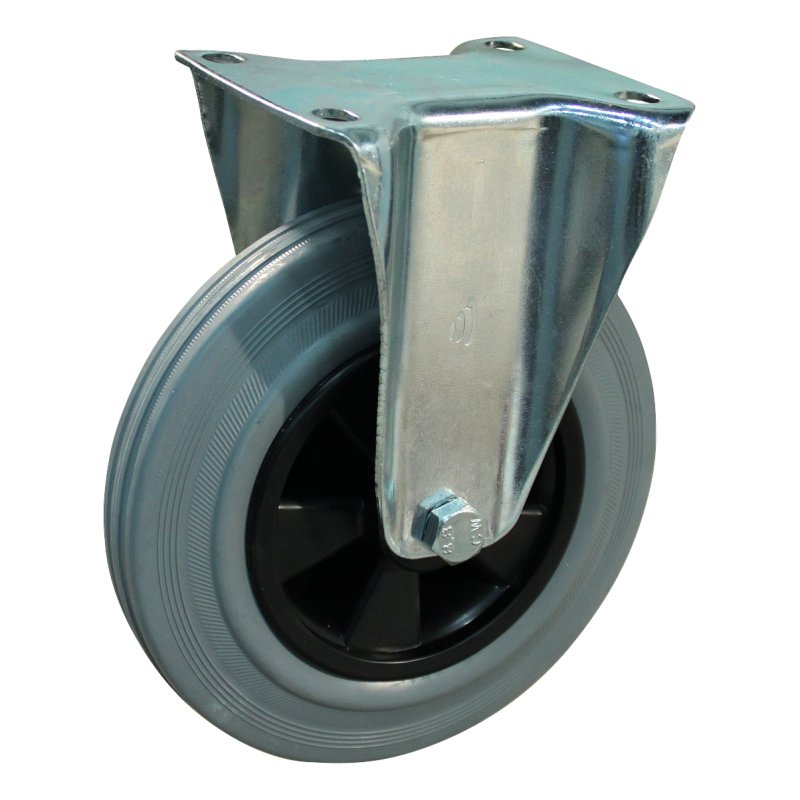

fixed castor 250mm series 11 ᠆ 12 plate mounting roller bearing

Reference : 311.252.126.000

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 250 mm Fork mounting plate mounting Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 290 mm Maximum load capacity 250 kg width 60 mm rim PP rim colour jet black RAL 9005 diameter axle bore 35 mm diameter axle bore fork 12,3 mm hub length mm 60 mm hub-to-fork length 63 mm colour support/housing zinc plated material fork steel dimension …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	60 mm
Wheel type	roulette fixe
Bearing type	roulement à rouleaux
Maximum load capacity	250 kg
Wheel diameter	250 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	290 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	146x107 / 105x80/75 / 3 / Ø11 mm
diameter axle bore fork	12,3 mm
hub-to-fork length	63 mm
tire	caoutchouc standard
tire colour	gris argent RAL 7001
tolerance hardness	+/-3°
hardness Shore A	80 Shore A
diameter axle bore	35 mm
colour support/housing	zingué
bore diameter	Ø25 mm
