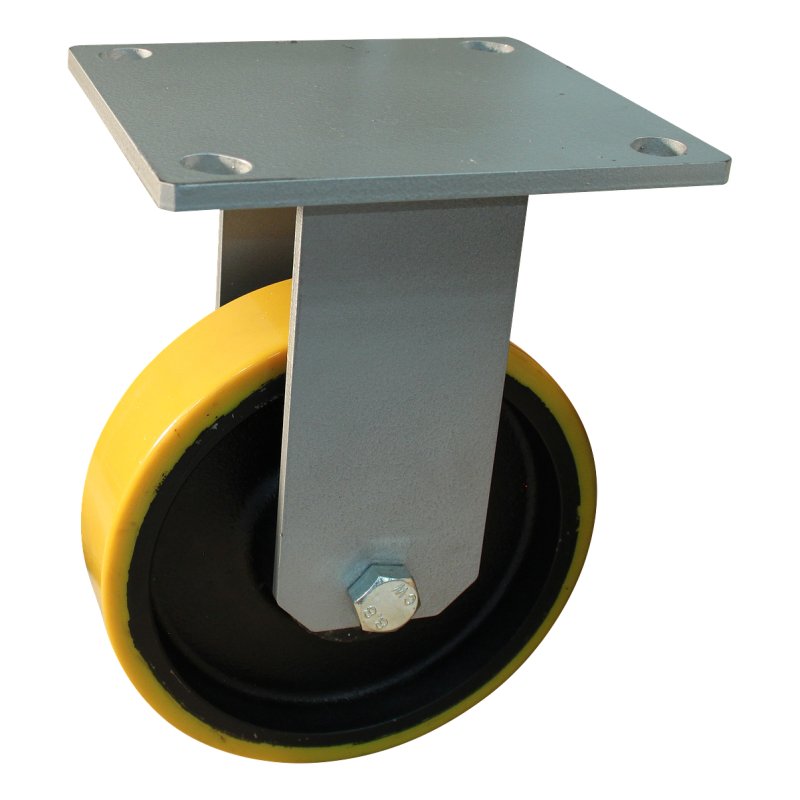

fixed castor 250mm series 28 ᠆ 09 plate mounting ball bearing

Reference : 328.256.096.060

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type fixed castor Wheel diameter 250 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material CPU Overall height 300 mm Maximum load capacity 1400 kg width 60 mm rim cast iron rim colour jet black RAL 9005 diameter axle bore 25 mm diameter axle bore fork 16,5 mm hub length mm 60 mm hub-to-fork length 87 mm colour support/housing grey hammertone material fork steel dimension…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	60 mm
Wheel type	roulette fixe
Bearing type	roulement à billes
Maximum load capacity	1 400 kg
Wheel diameter	250 mm
Tread material	CPU
rim	fonte
Overall height	300 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	190x170 / 150x135 / Ø22 mm
diameter axle bore fork	16,5 mm
hub-to-fork length	87 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	25 mm
colour support/housing	gris battitures
