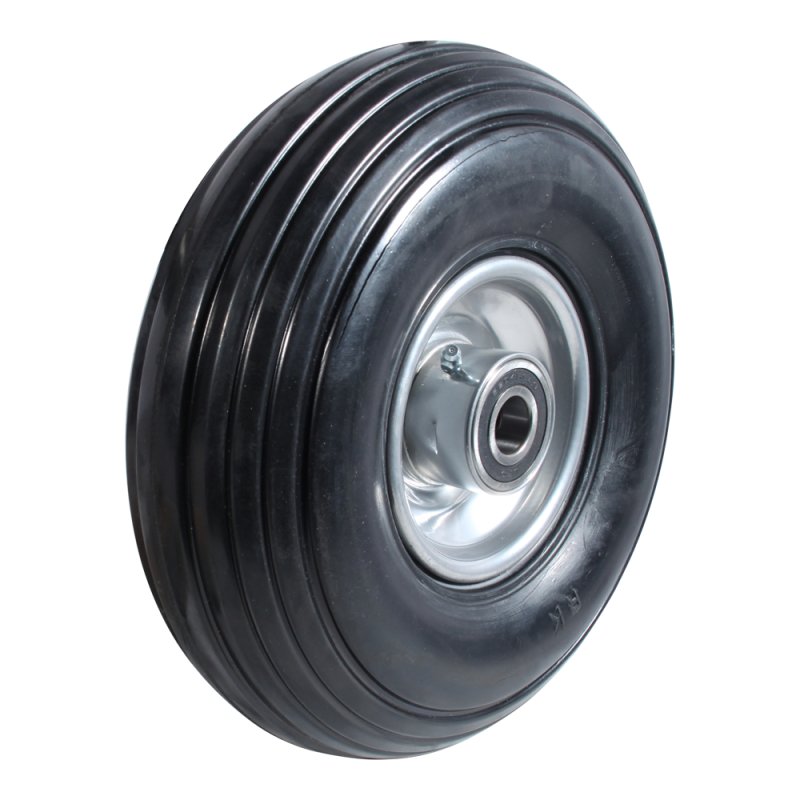

wheel + solid tyre 260mm serie 43 ball bearing

Reference : 143.266.200.085

Brand Novio Application Transportwheels Industry Agriculture and horticulture Industry and internal logistics Wheel type loose wheel Wheel diameter 260 mm Bearing type ball bearing Tread material rubber / TPE Overall height 260 mm Maximum load capacity 200 kg width 85 mm rim steel one piece rim colour white aluminum RAL 9006 diameter axle bore 20 mm hub length mm 75 mm tire standard rubber tire colour jet black RAL 9005 hardness Shore A 80 Shore A tolerance hardness +/-4° number of ball bearing…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie et logistique interne
Application	Roue de transport
width	85 mm
Wheel type	roue seule
Bearing type	roulement à billes
Maximum load capacity	200 kg
Wheel diameter	260 mm
Tread material	caoutchouc / TPE
rim	acier en une seule pièce
Overall height	260 mm
hub length mm	75 mm
rim colour	aluminium blanc RAL 9006
tire	caoutchouc standard
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4°
hardness Shore A	80 Shore A
diameter axle bore	20 mm
load capacity	200 kg
speed km/h	4
lubrication	-30°C +120°C
number of ball bearings	roulement à billes double
ball bearing type	6204 1RS
ball bearing seat	47x14 mm
