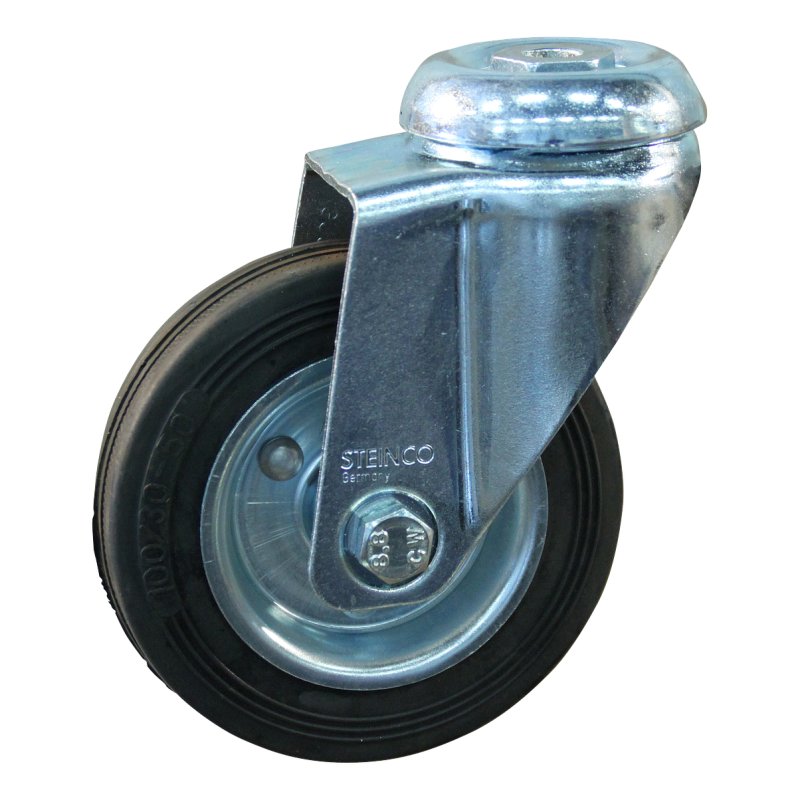

swivel castor 100mm series 02 ᠆ 51 bolt hole bolt hole roller bearing

Reference : 402.102.510.000

Brand Novio Application Equipment wheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting bolt hole Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 132 82 mm Maximum load capacity 70 kg width 30 mm rim steel rim colour zinc plated diameter axle bore 12 mm hub length mm 42 mm offset 40 mm dimension fixing ∅ 10,5 mm tire standard rubber tire colour black hardness Shore A 80 Shore A tolerance hardness +…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue d'appareil
width	30 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	70 kg
Wheel diameter	100 mm
offset	40 mm
Tread material	caoutchouc / TPE
rim	métal
hub length mm	42 mm
Fork mounting	trou de boulon
rim colour	zingué
Brake type	sans frein
dimension fixing	∅ 10,5 mm
tire	caoutchouc standard
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	80 Shore A
diameter axle bore	12 mm
fixing	trou pour boulon
