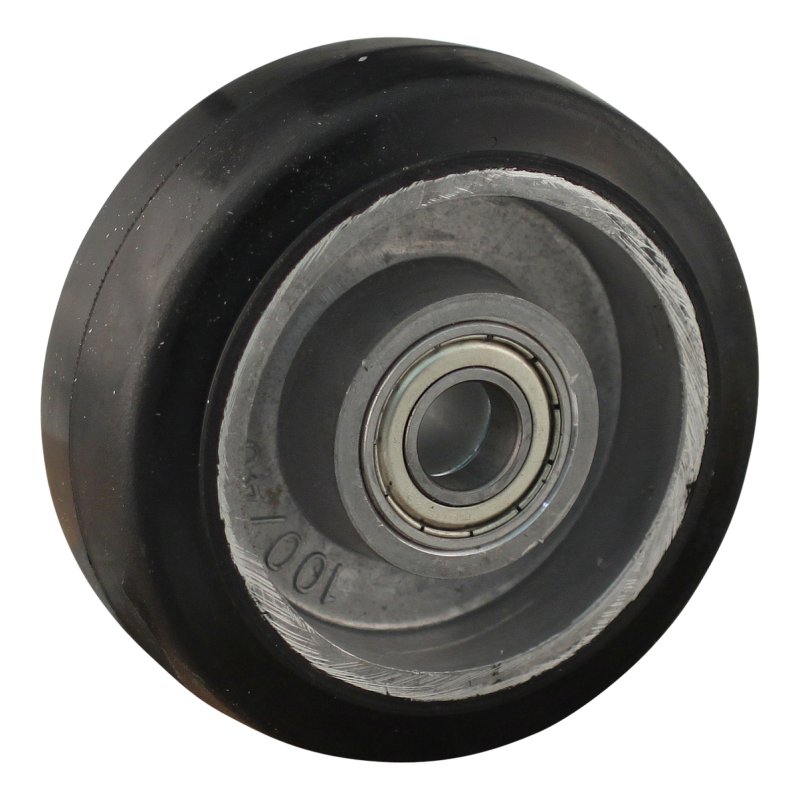

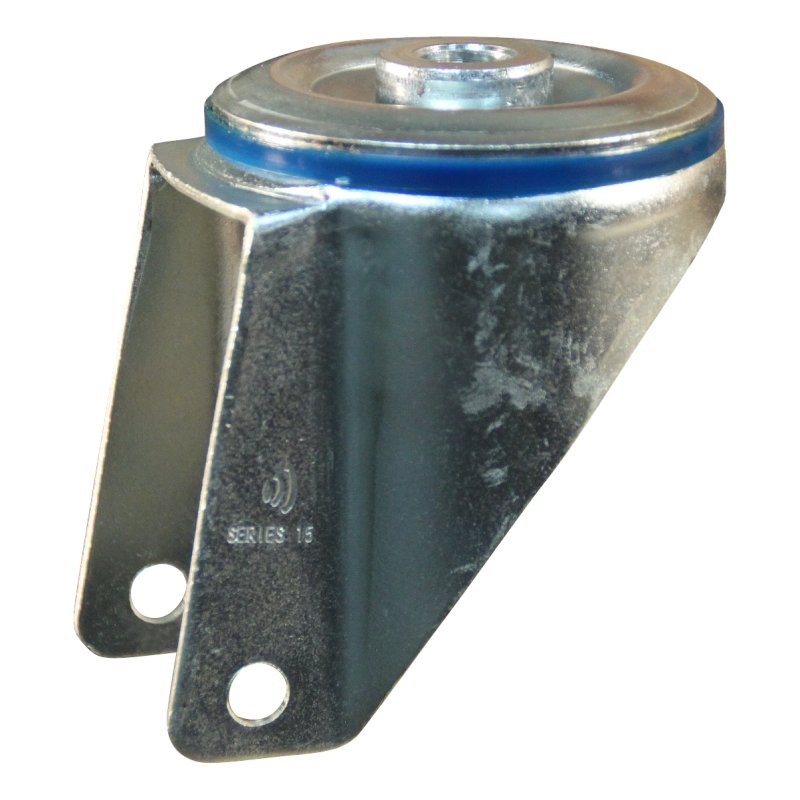

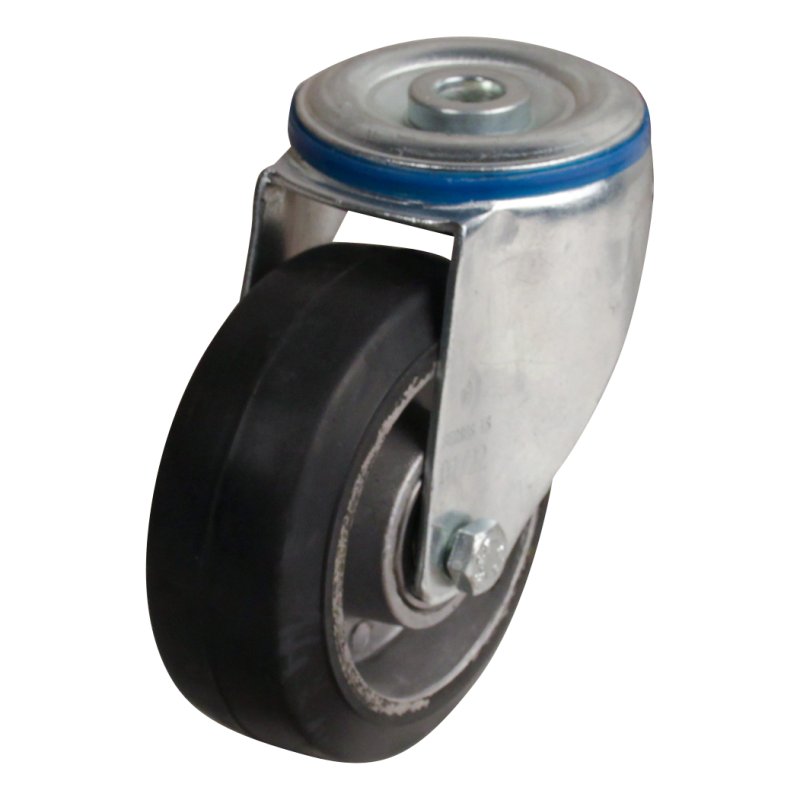

swivel castor 100mm series 10 ᠆ 15 bolt hole ball bearing

Reference : 210.106.150.040

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting bolt hole Bearing type ball bearing Brake type no brake Tread material rubber / TPE Overall height 125 mm Maximum load capacity 210 kg width 40 76 mm rim aluminium ADC12 (A383) diameter axle bore 15 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/housing zinc plated material fork steel…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	210 kg
Wheel diameter	100 mm
offset	38 +/-0,5 mm
Tread material	caoutchouc / TPE
rim	aluminium ADC12 (A383)
Overall height	125 mm
hub length mm	40 mm
Fork mounting	trou de boulon
material fork	métal
Brake type	sans frein
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	caoutchouc souple
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4
hardness Shore A	68 Shore A
diameter axle bore	15 mm
colour support/housing	zingué
