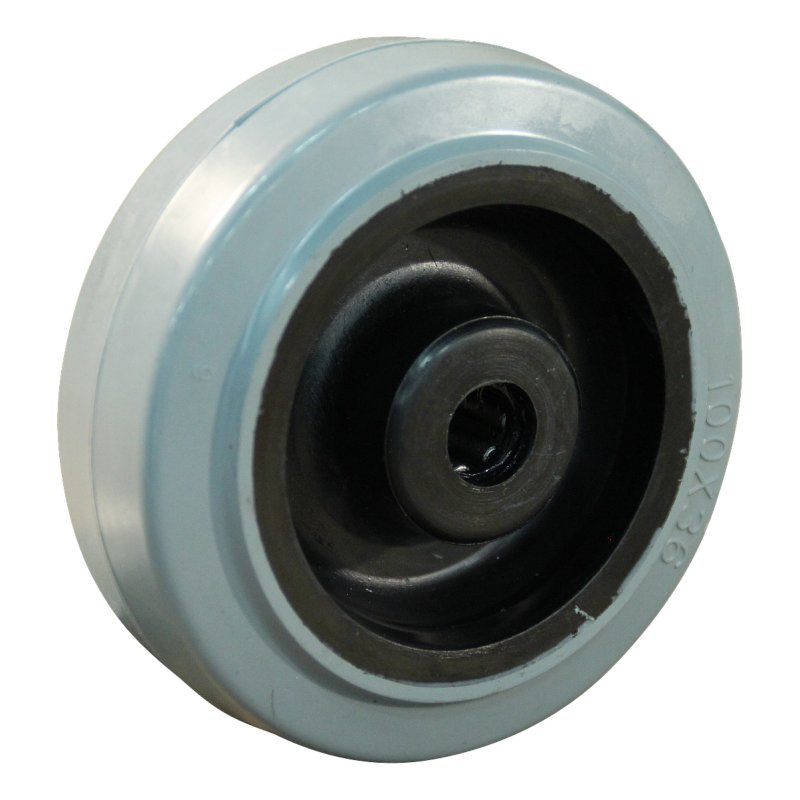

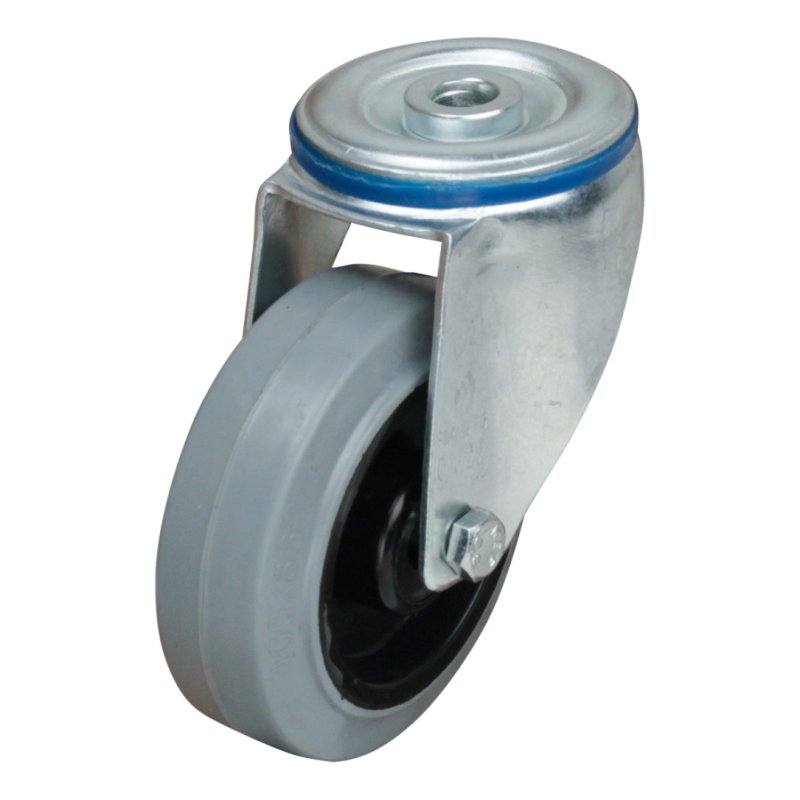

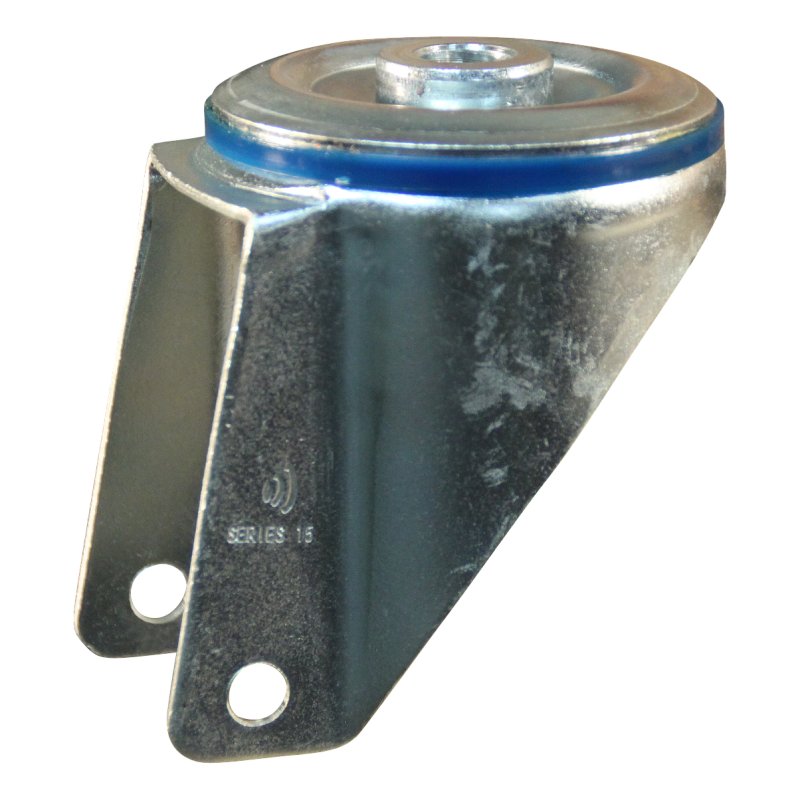

swivel castor 100mm series 14 ᠆ 15 bolt hole roller bearing

Reference : 214.102.150.000

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting bolt hole Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 125 mm Maximum load capacity 150 kg width 36 76 mm rim PA rim colour jet black RAL 9005 diameter axle bore 12 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colo…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	150 kg
Wheel diameter	100 mm
offset	38 +/-0,5 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	125 mm
hub length mm	40 mm
Fork mounting	trou de boulon
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	caoutchouc souple
tire colour	gris argent RAL 7001
tolerance hardness	+/-3
hardness Shore A	70 Shore A
diameter axle bore	12 mm
colour support/housing	zingué
