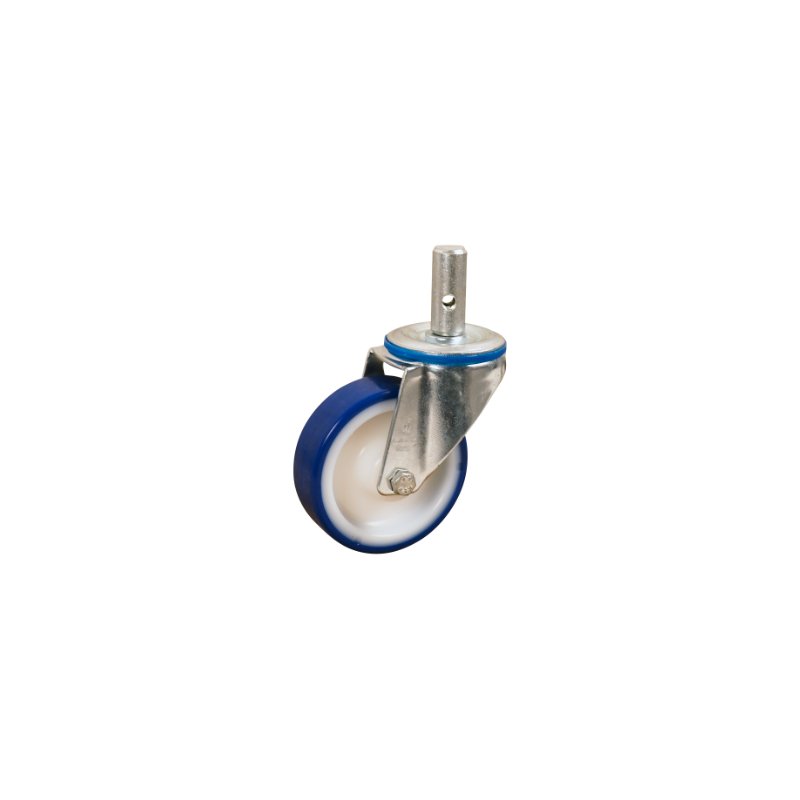

swivel castor 100mm series 27 ᠆ 15 pin ball bearing

Reference : 227.106.155.021

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 100 mm Fork mounting pin Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 125.7 mm Maximum load capacity 170 kg width 30 76 mm rim PA rim colour natural diameter axle bore 35x11 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing 12,5 mm tire TPU tire colour …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	170 kg
Wheel diameter	100 mm
offset	38 +/-0,5 mm
Tread material	PU / TPU
rim	PA
Overall height	125,7 mm
hub length mm	40 mm
Fork mounting	axe
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	TPU
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	97 Shore A
colour support/housing	zingué
outside diameter	35 mm
bore diameter	15 mm
bearing width	11 mm
bearing type	6202 2RS C3
