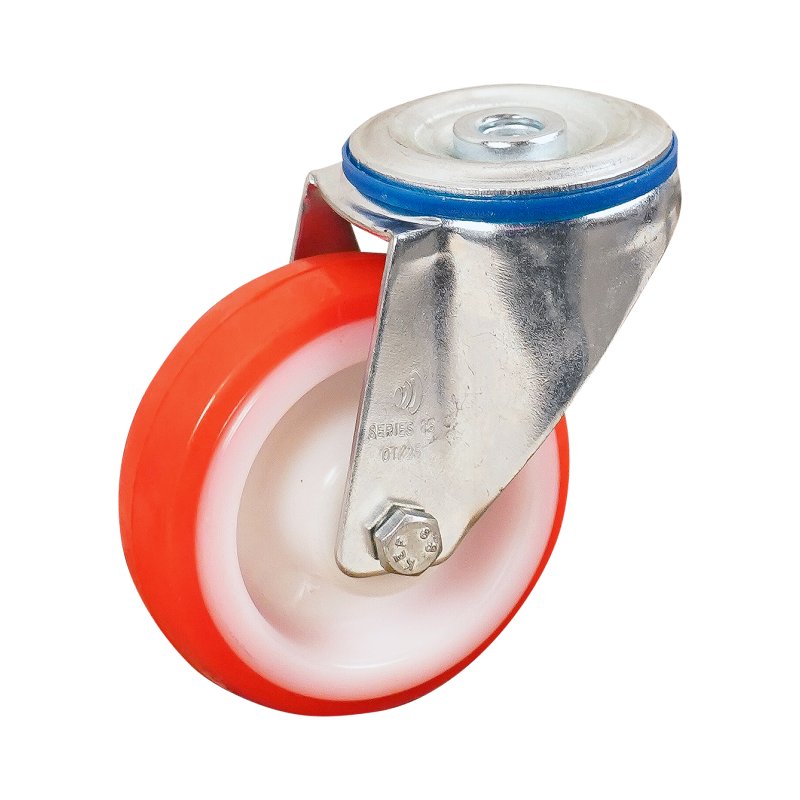

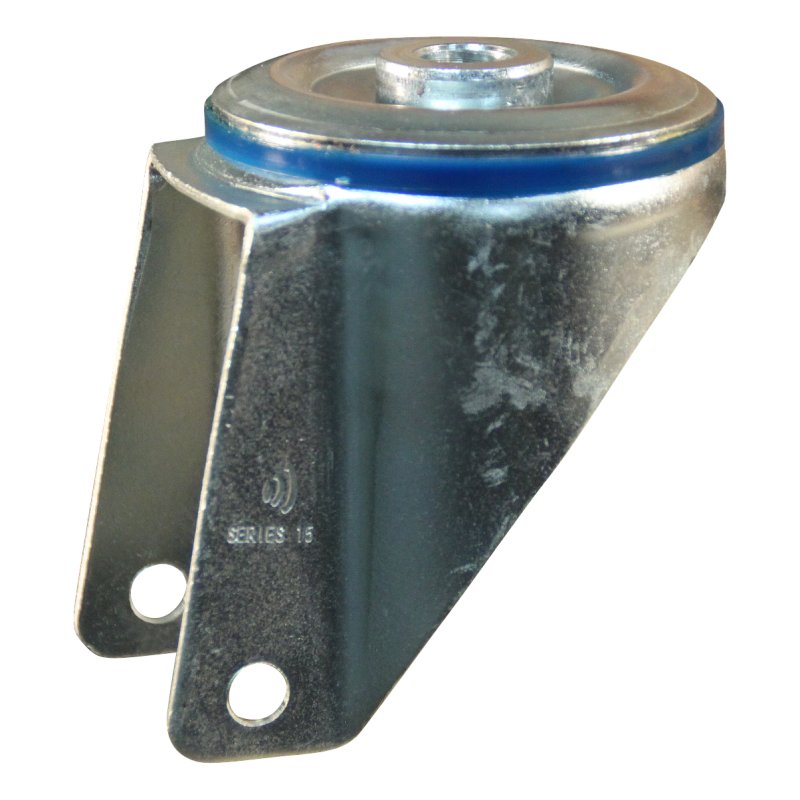

swivel castor 100mm series 27 ᠆ 15 bolt hole roller bearing

Reference : 227.102.150.001

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting bolt hole Bearing type roller bearing Brake type no brake Tread material PU / TPU Overall height 125 mm Maximum load capacity 170 kg width 30 76 mm rim PA rim colour natural diameter axle bore 12 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/hous…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	170 kg
Wheel diameter	100 mm
offset	38 +/-0,5 mm
Tread material	PU / TPU
rim	PA
Overall height	125 mm
hub length mm	40 mm
Fork mounting	trou de boulon
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	TPU
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	97 Shore A
diameter axle bore	12 mm
colour support/housing	zingué
