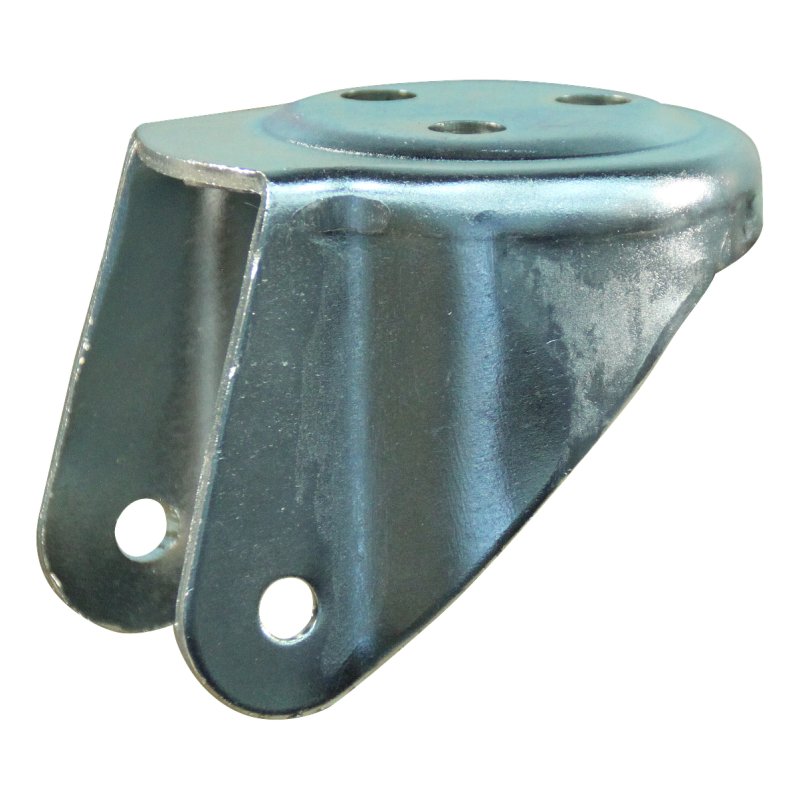

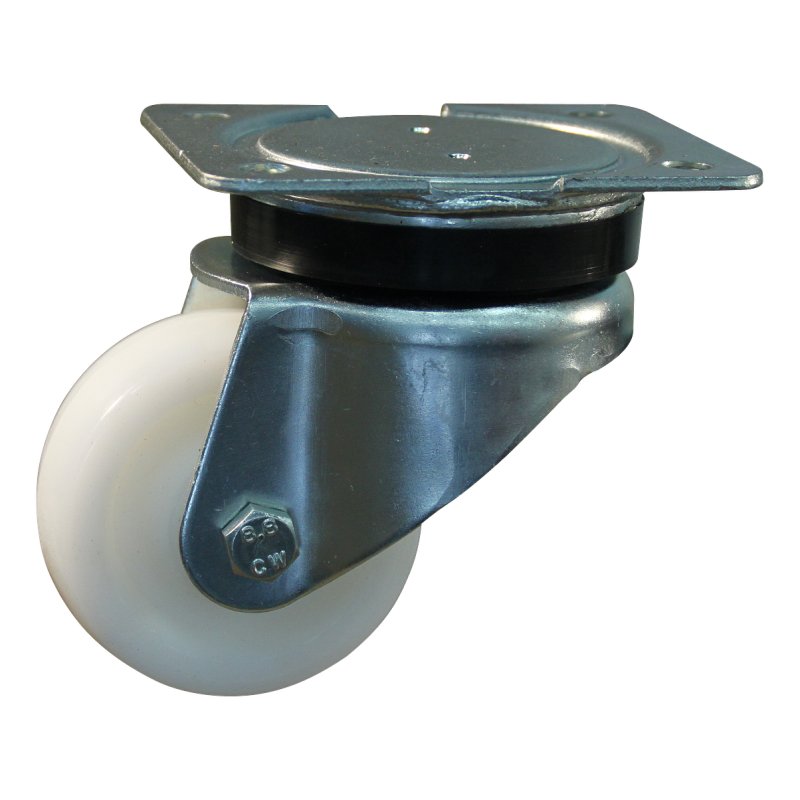

swivel castor 100mm serie 33 ᠆ 14 plate mounting plain bore

Reference : 233.101.146.040

Brand Novio Application Heavy duty wheels Transportwheels Industry Agriculture and horticulture Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material plastic Overall height 131 mm Maximum load capacity 450 kg width 40 mm rim PA rim colour natural diameter axle bore 15 mm diameter axle bore fork 8,5 mm hub length mm 44 mm hub-to-fork length 43 +2/-0 mm offset 40 mm colour support/h…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie et logistique interne
Application	Roulettes fortes charges Roue de transport
width	40 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	450 kg
Wheel diameter	100 mm
offset	40 mm

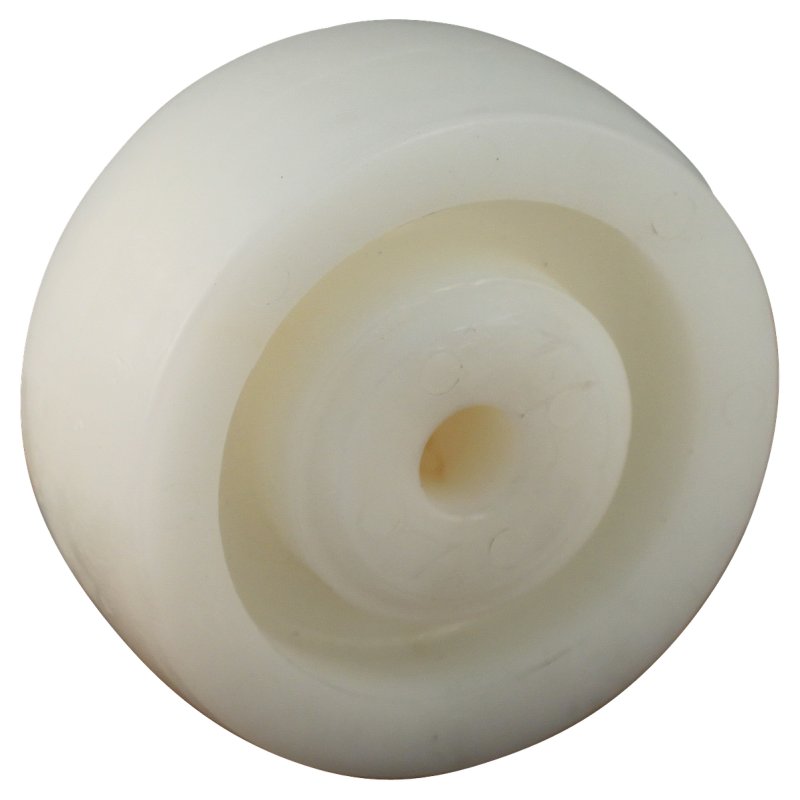

Tread material	plastique
rim	PA
Overall height	131 mm
hub length mm	44 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	sans frein
diameter axle bore fork	8,5 mm
hub-to-fork length	43 +2/-0 mm
diameter axle bore	15 mm
colour support/housing	zingué

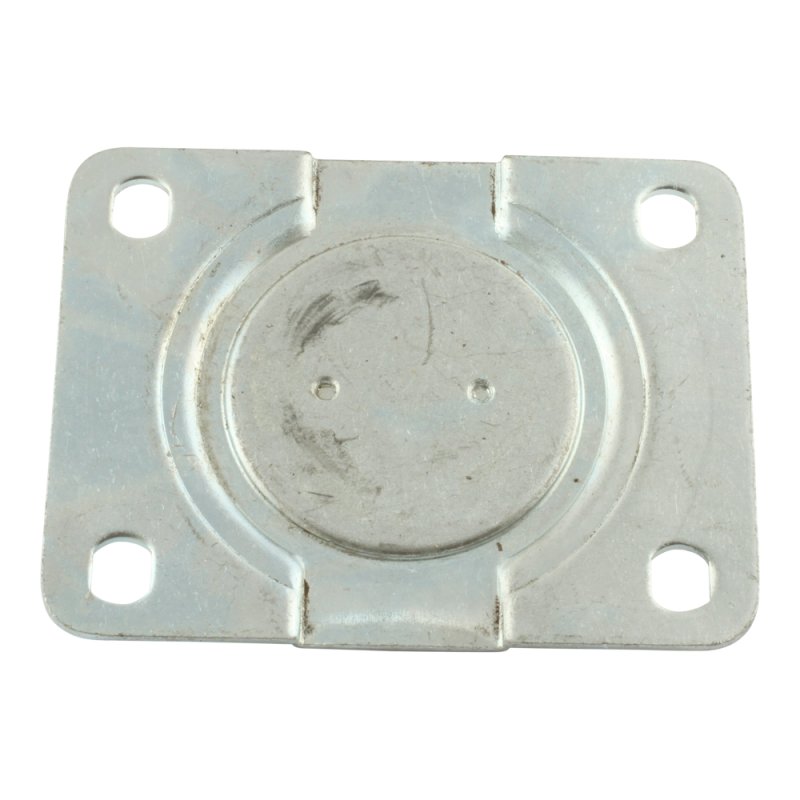

fixing	plaat 105x85x3,0 / 80x60 / Ø8
load capacity fork	450 kg
