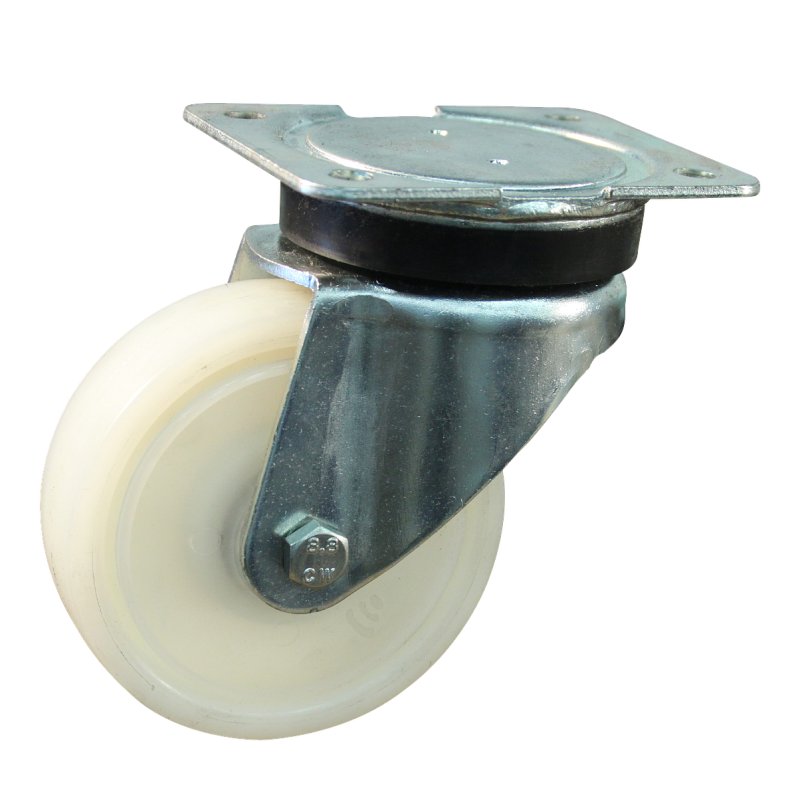

swivel castor 100mm serie 34 ᠆ 14 plate mounting ball bearing

Reference : 234.106.146.030

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material plastic Overall height 131 mm Maximum load capacity 150 kg width 30 mm rim PA rim colour natural diameter axle bore 8 mm diameter axle bore fork 8,5 mm hub length mm 40 mm hub-to-fork length 43 +2/-0 mm offset 40 mm colour support/housing zinc…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	30 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	150 kg
Wheel diameter	100 mm
offset	40 mm
Tread material	plastique
rim	PA
Overall height	131 mm
hub length mm	40 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	sans frein
diameter axle bore fork	8,5 mm
hub-to-fork length	43 +2/-0 mm
tolerance hardness	+/-2
diameter axle bore	8 mm
colour support/housing	zingué

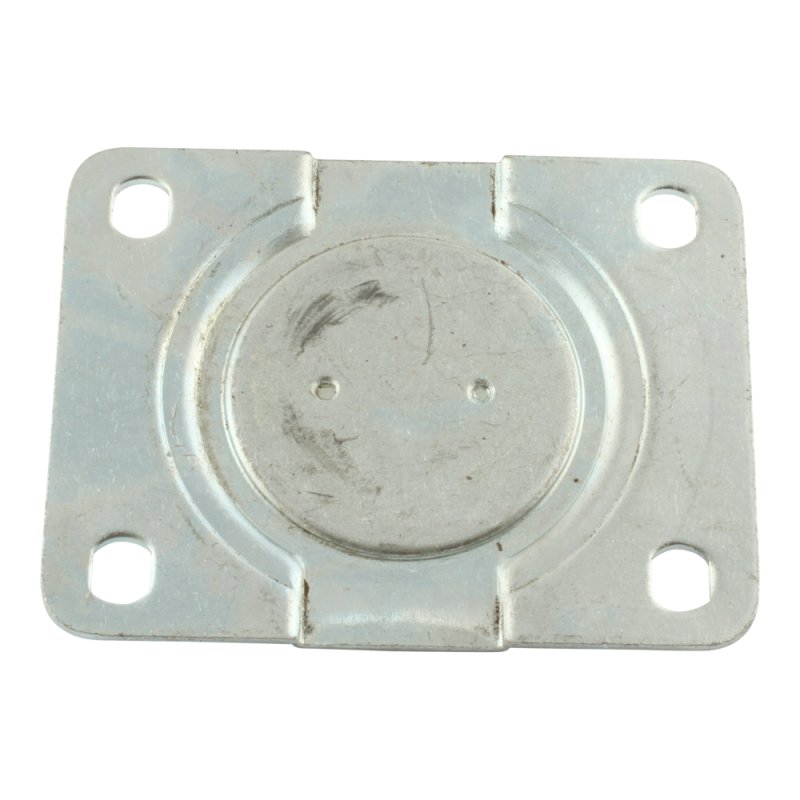

fixing	plaat 105x85x3,0 / 80x60 / Ø8
load capacity fork	450 kg
