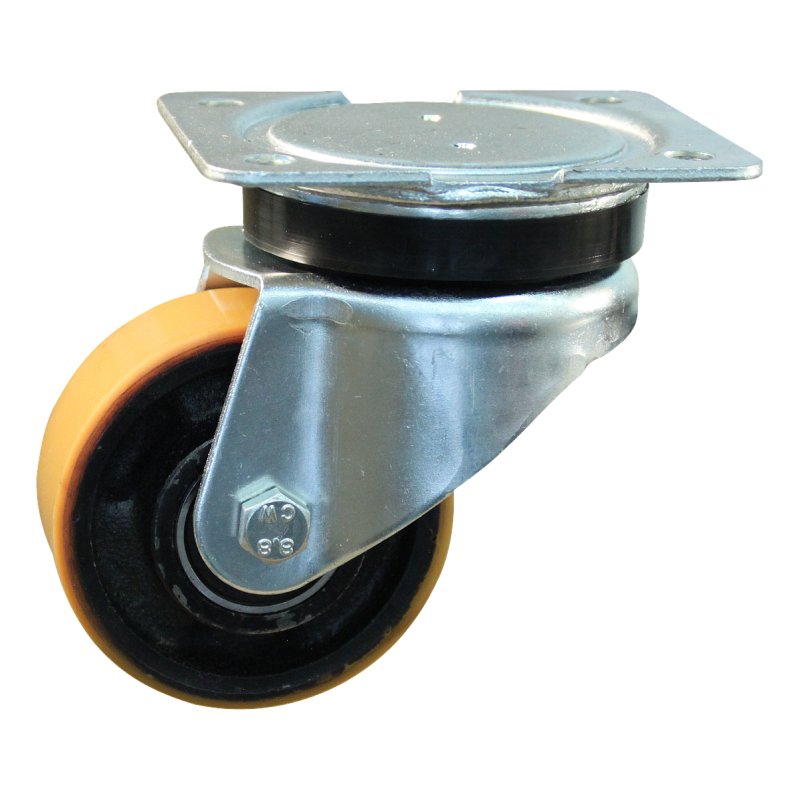

swivel castor 100mm serie 39 ᠆ 14 plate mounting ball bearing

Reference : 228.106.146.140

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 131 mm Maximum load capacity 450 kg width 40 mm rim steel diameter axle bore fork 8,5 mm hub length mm 40 mm hub-to-fork length 43 +2/-0 mm offset 40 mm colour support/housing zinc plated material fork steel tire PU tire colour red brown hardness Shore A 94…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	40 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	450 kg
Wheel diameter	100 mm
offset	40 mm
Tread material	PU / TPU
rim	métal
Overall height	131 mm
hub length mm	40 mm
Fork mounting	fixation platine

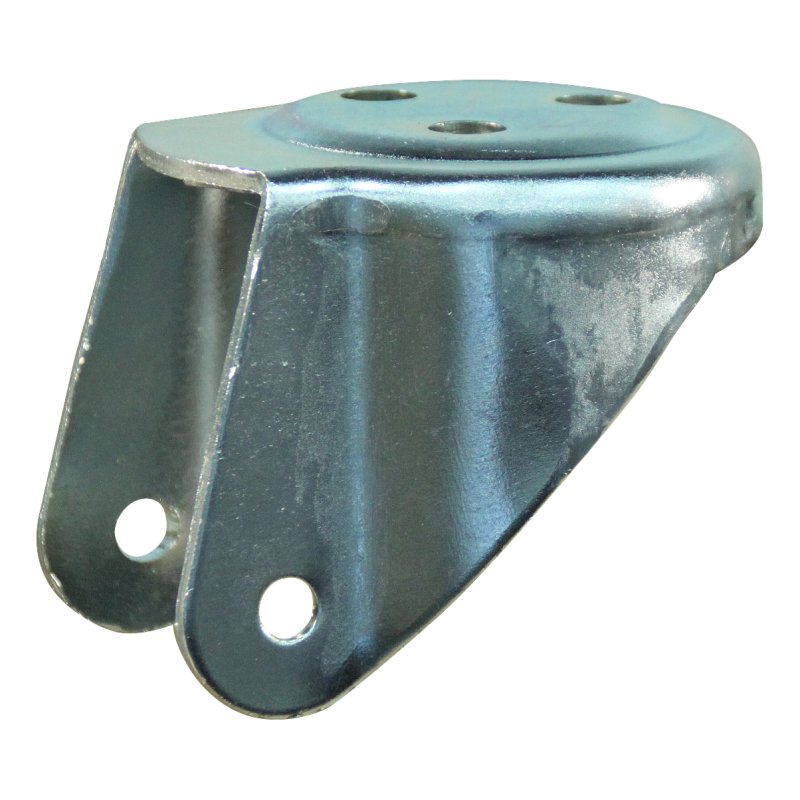

material fork	métal
Brake type	sans frein
diameter axle bore fork	8,5 mm
hub-to-fork length	43 +2/-0 mm

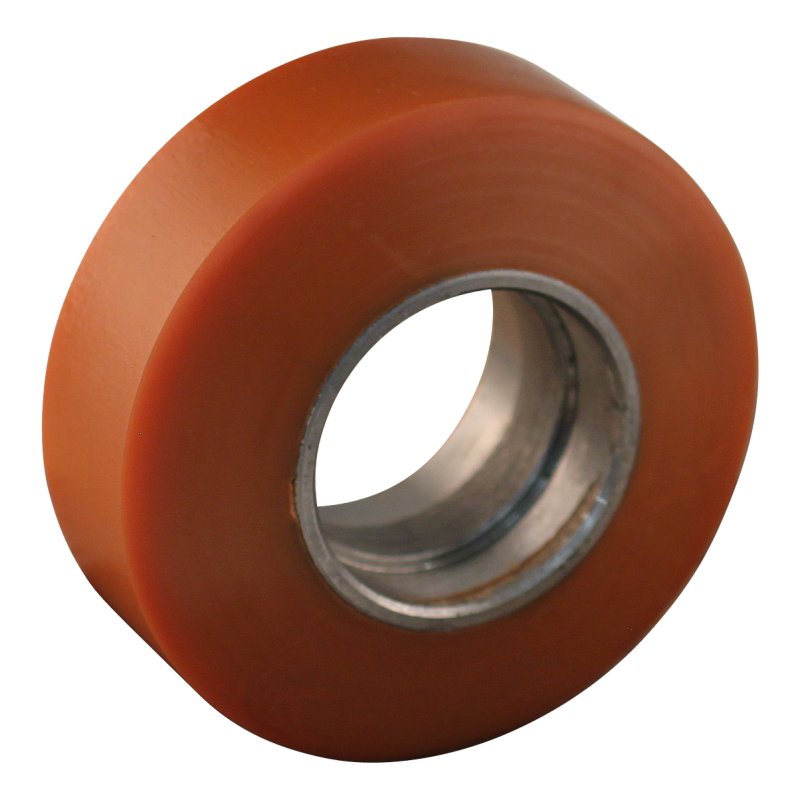

tire	PU
tire colour	brun rouge
tolerance hardness	+/-2
hardness Shore A	94 Shore A
colour support/housing	zingué

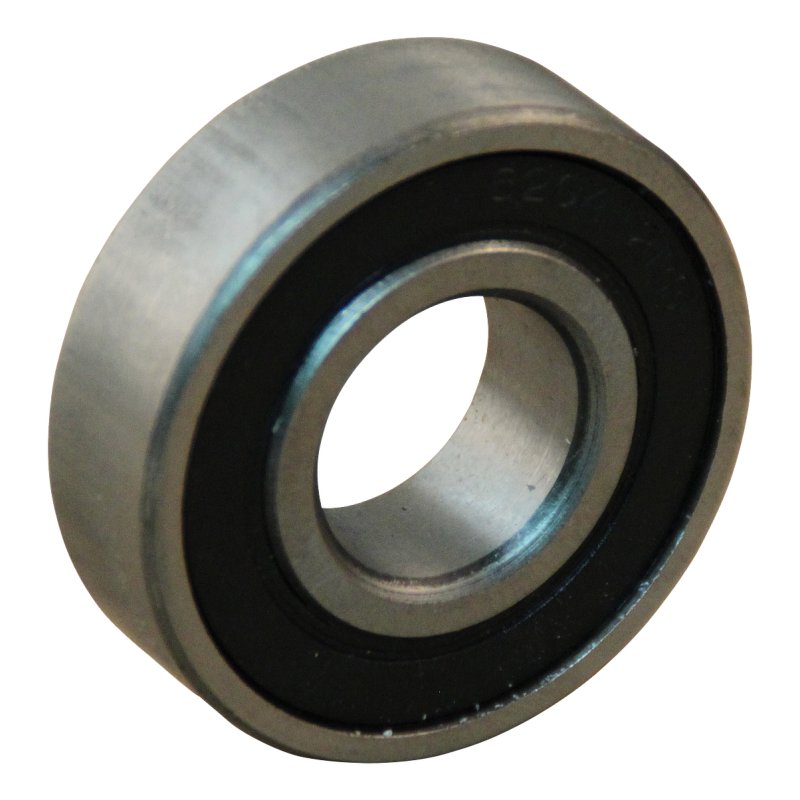

outside diameter	47 mm
bore diameter	20 mm
bearing width	14 mm

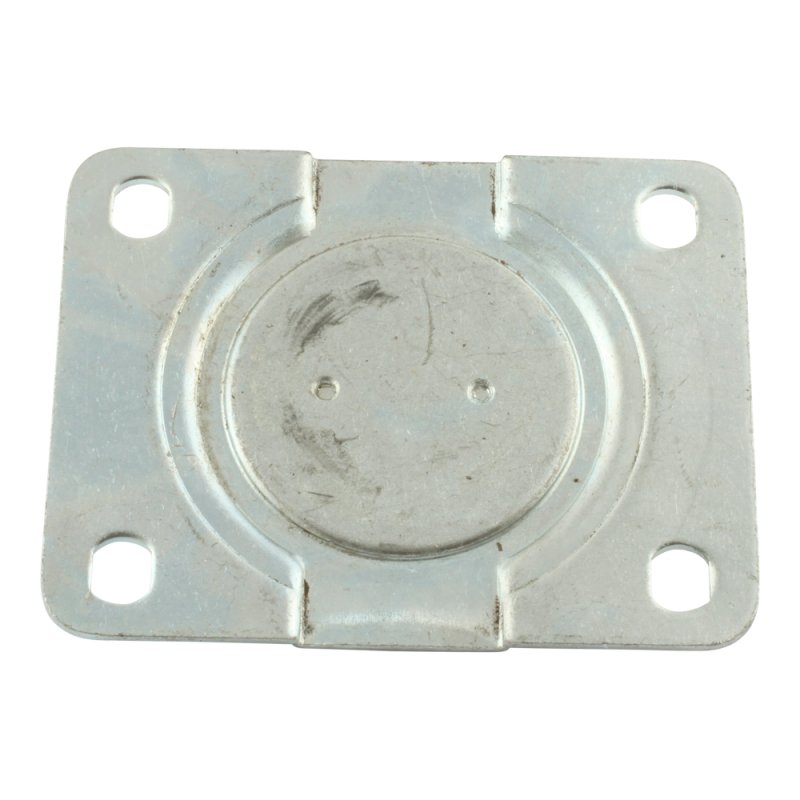

fixing	plaat 105x85x3,0 / 80x60 / Ø8
load capacity fork	450 kg
