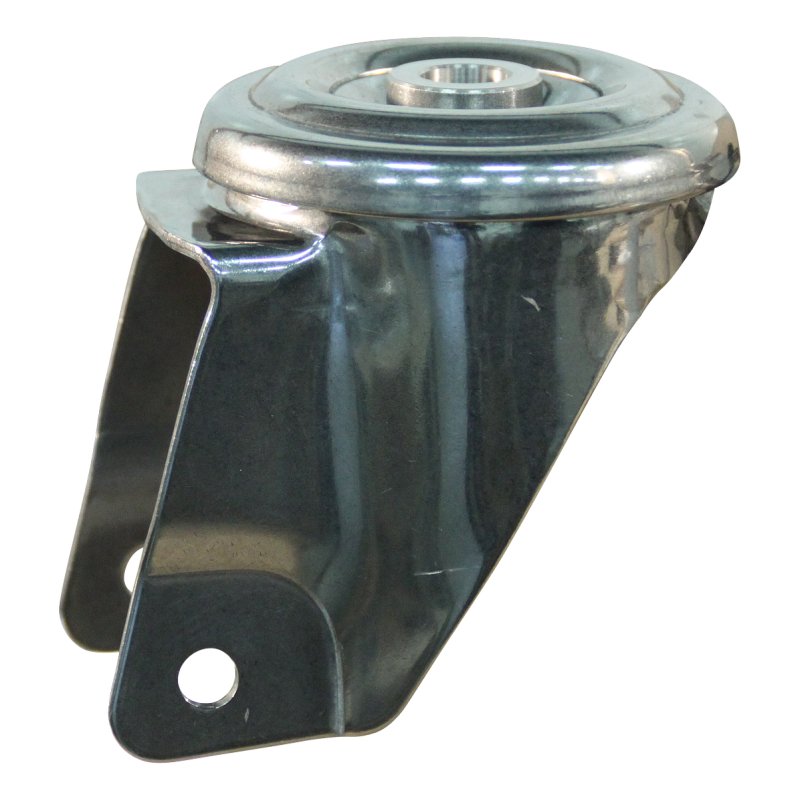

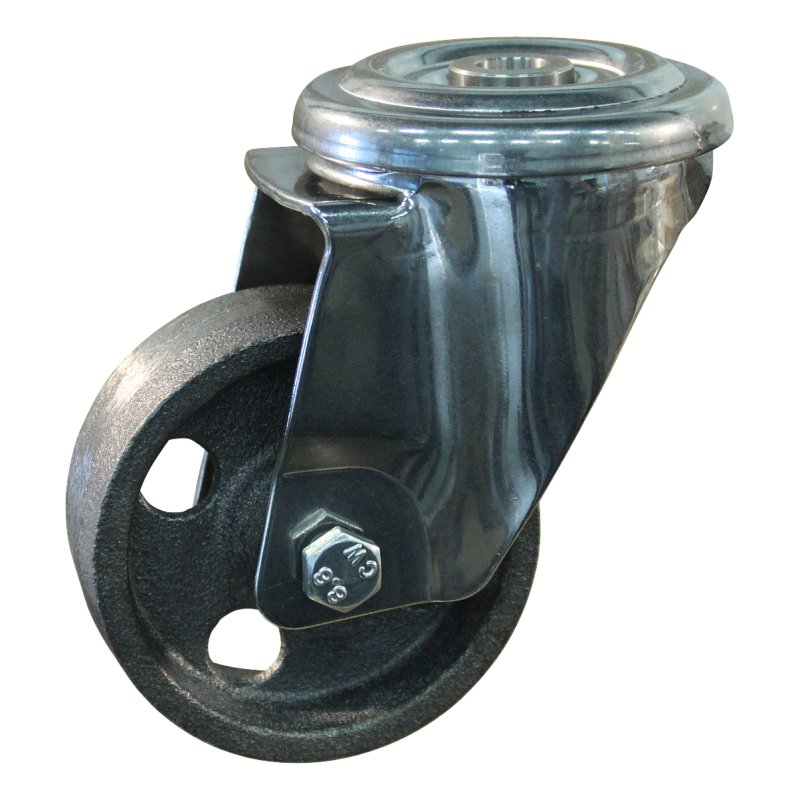

swivel castor 100mm serie 45 ᠆ 29 bolt hole plain bore
Reference : 245.101.290.000
Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting bolt hole Bearing type plain bearing Brake type no brake Tread material cast iron / steel Overall height 127 mm Maximum load capacity 230 kg width 40 mm rim cast iron diameter axle bore 15 mm diameter axle bore fork 8,2 mm hub length mm 45 mm hub-to-fork length 41 mm offset 42 mm material fork SS AISI 304 dimension fixing Ø12 mm
78,60 € incl. VAT
On order Supply lead time : environ 8 semaines
📩 Notify me when this product is available again
A single email, when it is back in stock. No spam.
Specifications
| Industry | Industrie et logistique interne |
| Application | Roue de transport |
| width | 40 mm |
| Wheel type | roulette pivotante |
| Bearing type | palier lisse |
| Maximum load capacity | 230 kg |
| Wheel diameter | 100 mm |
| offset | 42 mm |
| Tread material | fonte / acier |
| rim | fonte |
| Overall height | 127 mm |
| hub length mm | 45 mm |
| Fork mounting | trou de boulon |
| material fork | inox 304 |
| Brake type | sans frein |
| dimension fixing | Ø12 mm |
| diameter axle bore fork | 8,2 mm |
| hub-to-fork length | 41 mm |
| diameter axle bore | 15 mm |
Description
- Brand
- Novio
- Application
- Transportwheels
- Industry
- Industry and internal logistics
- Wheel type
- swivel castor
- Wheel diameter
- 100 mm
- Fork mounting
- bolt hole
- Bearing type
- plain bearing
- Brake type
- no brake
- Tread material
- cast iron / steel
- Overall height
- 127 mm
- Maximum load capacity
- 230 kg
- width
- 40 mm
- rim
- cast iron
- diameter axle bore
- 15 mm
- diameter axle bore fork
- 8,2 mm
- hub length mm
- 45 mm
- hub-to-fork length
- 41 mm
- offset
- 42 mm
- material fork
- SS AISI 304
- dimension fixing
- Ø12 mm
