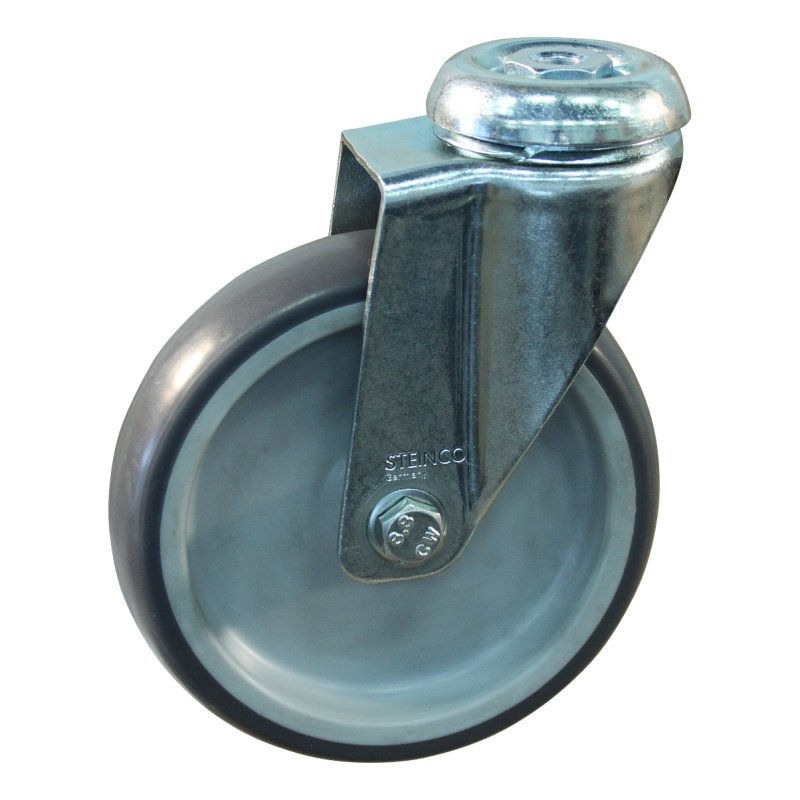

swivel castor 100mm serie 69 ᠆ 51 bolt hole bolt hole plain bore

Reference : 469.101.510.010

Brand Novio Application Equipment wheels Medical equipment Industry Healthcare Wheel type swivel castor Wheel diameter 100 mm Fork mounting bolt hole Bearing type plain bearing Brake type no brake Tread material rubber / TPE Overall height 132 82 mm Maximum load capacity 80 kg width 32 mm rim PP rim colour silver grey RAL 7001 diameter axle bore 12.1 mm hub length mm 36 mm offset 40 mm dimension fixing ∅ 10,5 mm tire TPE tire colour slate grey RAL 7015 hardness Shore A 70 Shore A tolerance hard…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Soins de santé
Application	Roue d'appareil Appareils médicaux
width	32 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	80 kg
Wheel diameter	100 mm
offset	40 mm
Tread material	caoutchouc / TPE
rim	PP
hub length mm	36 mm
Fork mounting	trou de boulon
rim colour	gris argent RAL 7001
Brake type	sans frein
dimension fixing	∅ 10,5 mm
tire	TPE
tire colour	gris ardoise RAL 7015
tolerance hardness	+/-5
hardness Shore A	70 Shore A
diameter axle bore	12,1 mm
fixing	trou pour boulon
