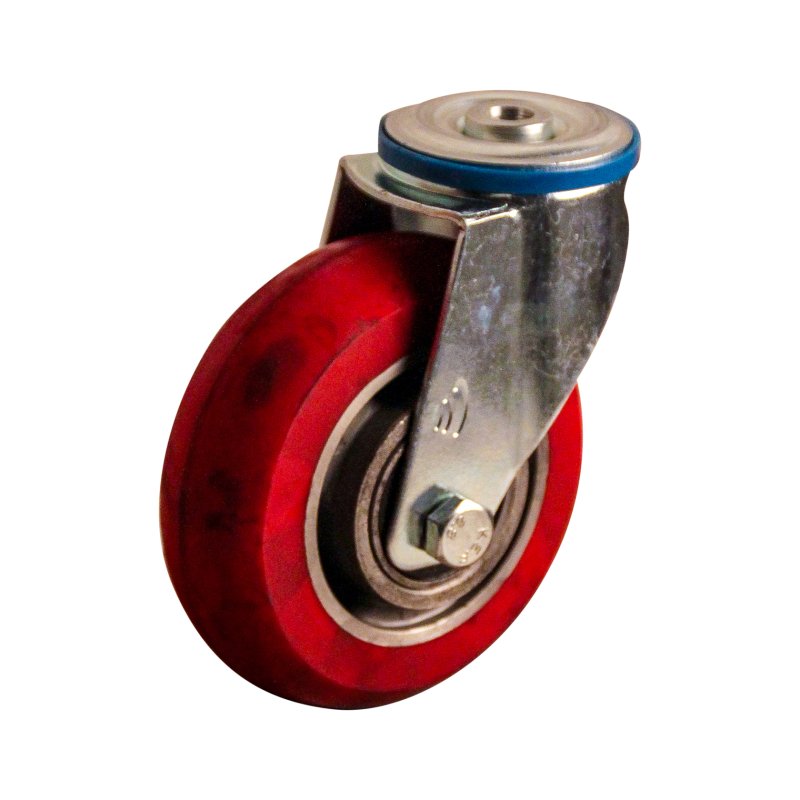

swivel castor 125mm series 03 ᠆ 15 bolt hole ball bearing

Reference : 203.126.150.040

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 125 mm Fork mounting bolt hole Bearing type ball bearing Brake type no brake Overall height 152.7 mm Maximum load capacity 180 kg width 40 mm rim aluminium ADC12 (A383) diameter axle bore 20 mm diameter axle bore fork 10,2 mm hub length mm 50 mm hub-to-fork length 52 +2,0 mm offset 40 +/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing Ø12,5 mm tire MDI + PTMG soft / Elaxthane tire colo…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	40 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	180 kg
Wheel diameter	125 mm
offset	40 +/-0,5 mm
rim	aluminium ADC12 (A383)
Overall height	152,7 mm
hub length mm	50 mm
Fork mounting	trou de boulon
material fork	métal
Brake type	sans frein
dimension fixing	Ø12,5 mm
diameter axle bore fork	10,2 mm
hub-to-fork length	52 +2,0 mm
tire	MDI + PTMG soft / Elaxthane
tire colour	rouge signalisation RAL 3020
tolerance hardness	+/-3
hardness Shore A	75 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
