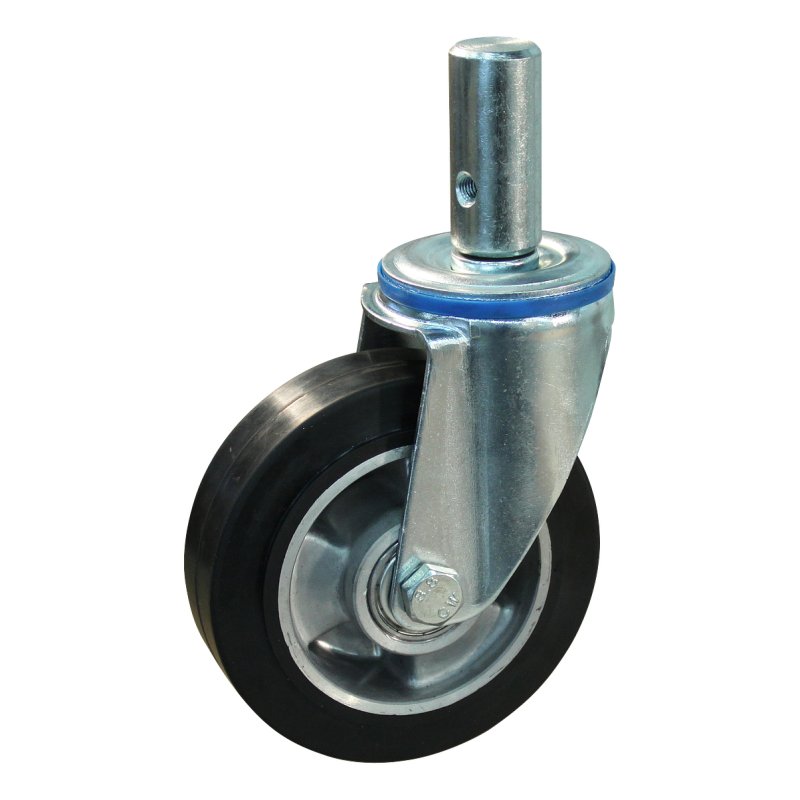

swivel castor 125mm series 10 ᠆ 15 pin ball bearing

Reference : 210.126.155.027

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 125 mm Fork mounting pin Bearing type ball bearing Brake type no brake Tread material rubber / TPE Overall height 152.7 mm Maximum load capacity 180 kg width 40 mm rim aluminium ADC12 (A383) diameter axle bore 15 mm diameter axle bore fork 10,2 mm hub length mm 50 mm hub-to-fork length 52 +2,0 mm offset 40 +/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing Ø12,5 mm tire elastic rubber …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	40 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	180 kg
Wheel diameter	125 mm
offset	40 +/-0,5 mm
Tread material	caoutchouc / TPE
rim	aluminium ADC12 (A383)
Overall height	152,7 mm
hub length mm	50 mm
Fork mounting	axe
material fork	métal
Brake type	sans frein
dimension fixing	Ø12,5 mm
diameter axle bore fork	10,2 mm
hub-to-fork length	52 +2,0 mm
tire	caoutchouc souple
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4
hardness Shore A	68 Shore A
diameter axle bore	15 mm
colour support/housing	zingué
