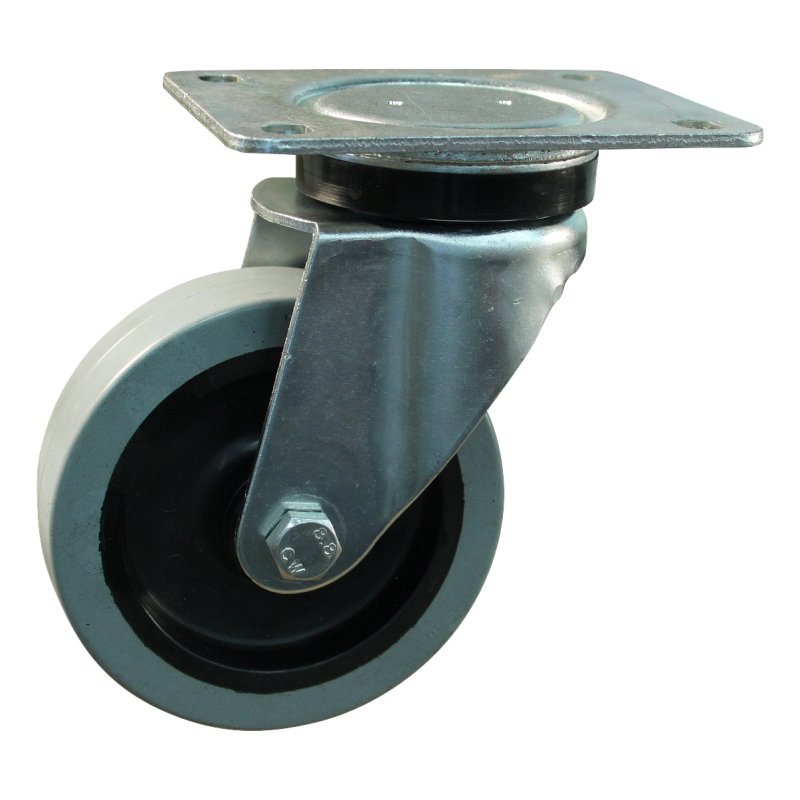

swivel castor 125mm series 14 ᠆ 12 plate mounting roller bearing

Reference : 214.122.126.000

Brand Novio Application Roller containers Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 155.5 mm Maximum load capacity 180 kg width 36 mm rim PA rim colour jet black RAL 9005 diameter axle bore 12 mm diameter axle bore fork 10,2 mm hub length mm 50 mm hub-to-fork length 52 +3,0/-0,5…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Conteneurs à roulettes Roue de transport
width	36 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	180 kg
Wheel diameter	125 mm
offset	35 +/-1,0 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	155,5 mm
hub length mm	50 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	105x80 / 76/80x55/60 / Ø9 mm
diameter axle bore fork	10,2 mm
hub-to-fork length	52 +3,0/-0,5 mm
tire	caoutchouc souple
tire colour	gris argent RAL 7001
tolerance hardness	+/-3
hardness Shore A	70 Shore A
diameter axle bore	12 mm
colour support/housing	zingué
