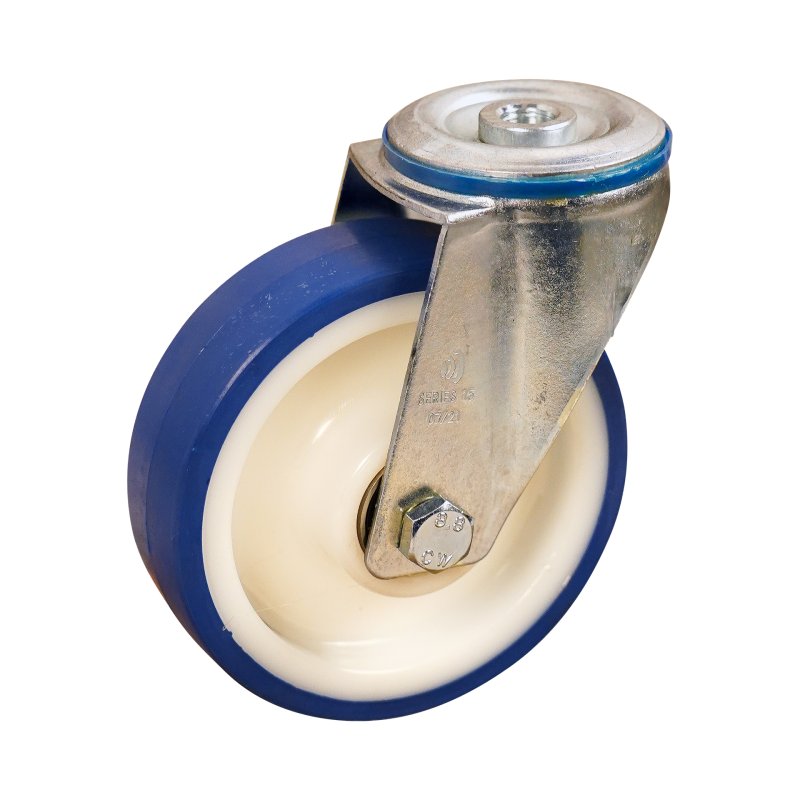

swivel castor 125mm series 27 ᠆ 15 bolt hole ball bearing

Reference : 227.126.150.001

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 125 mm Fork mounting bolt hole Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 152.5 mm Maximum load capacity 180 kg width 36 mm rim PA rim colour natural diameter axle bore fork 10,2 mm hub length mm 50 mm hub-to-fork length 52 +2,0 mm offset 40 +/-0,5 mm colour support/housing zinc plated material fo…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	36 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	180 kg
Wheel diameter	125 mm
offset	40 +/-0,5 mm

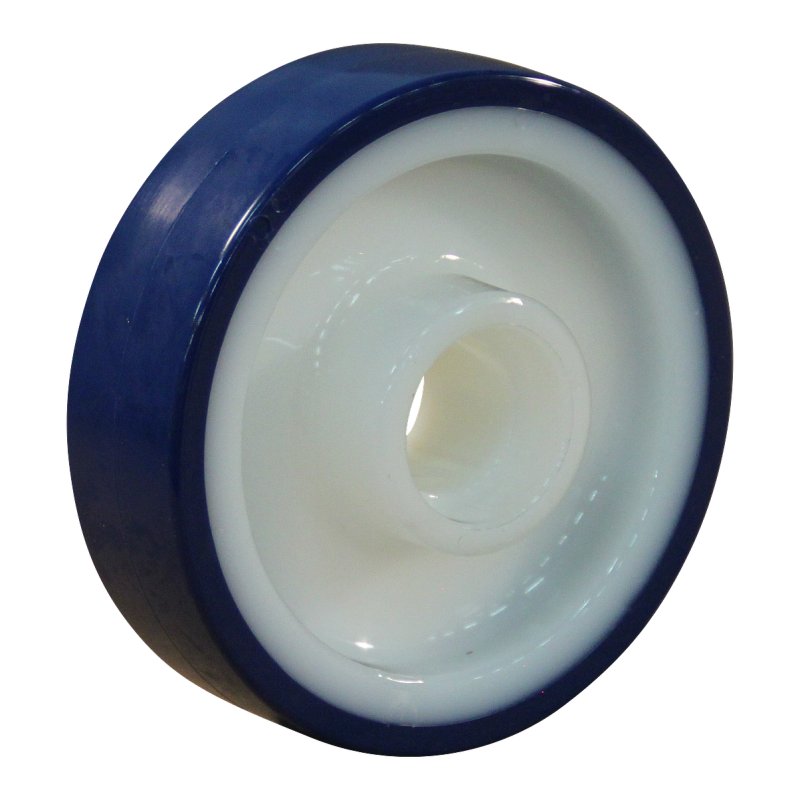

Tread material	PU / TPU
rim	PA
Overall height	152,5 mm
hub length mm	50 mm
Fork mounting	trou de boulon
rim colour	naturel

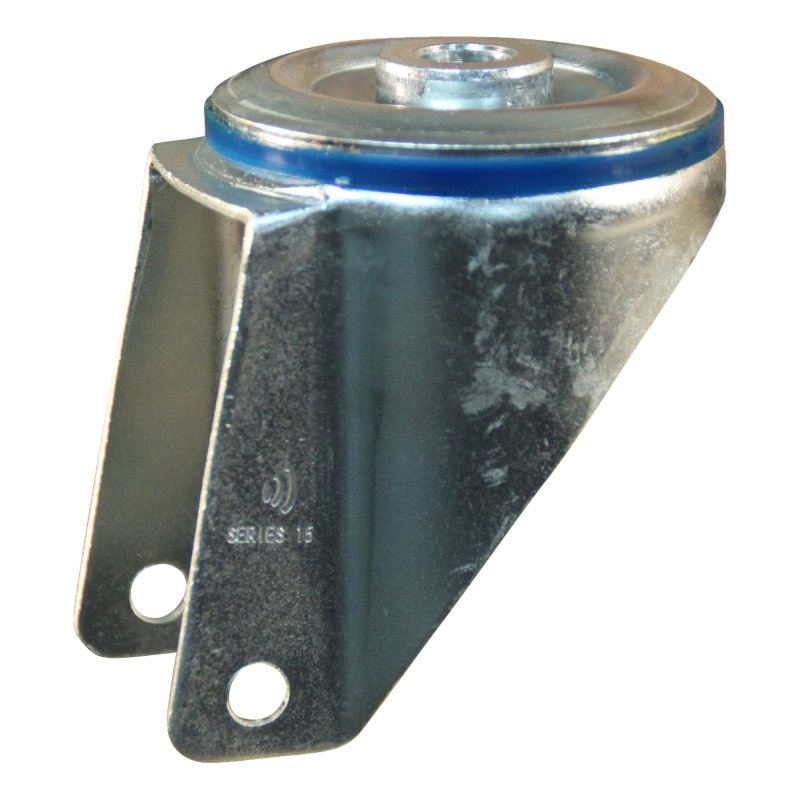

material fork	métal
Brake type	sans frein
dimension fixing	Ø12,5 mm
diameter axle bore fork	10,2 mm
hub-to-fork length	52 +2,0 mm
tire	TPU
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	97 Shore A
colour support/housing	zingué

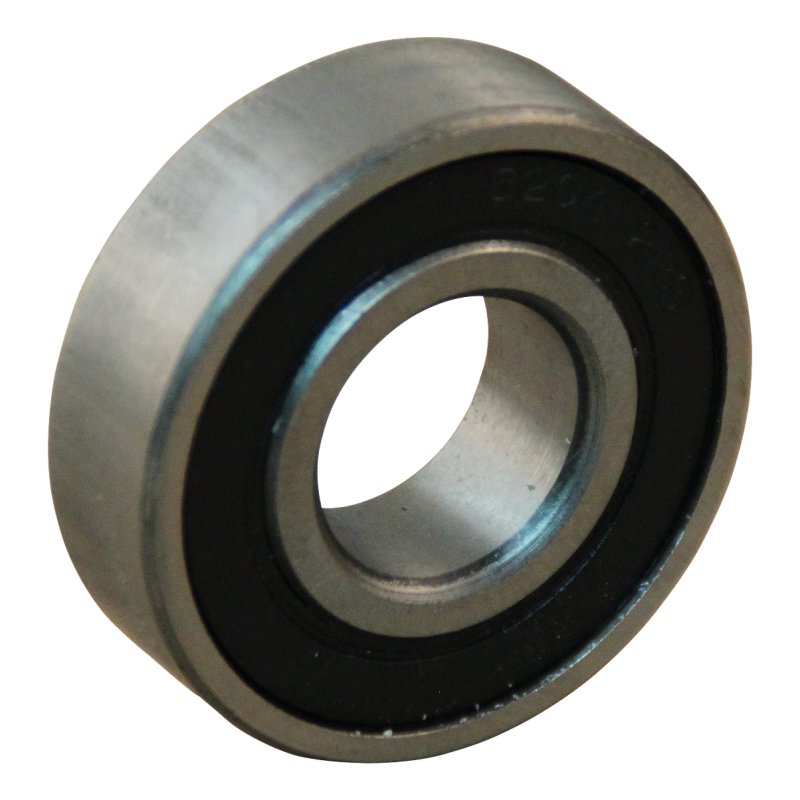

outside diameter	35 mm
bore diameter	15 mm
bearing width	11 mm
bearing type	6202 2RS C3
