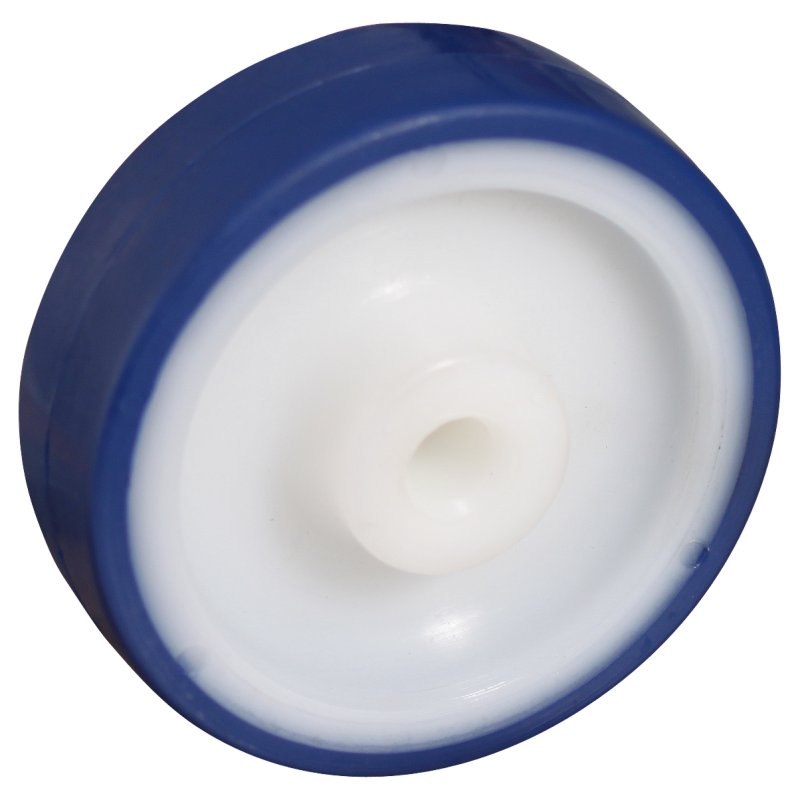

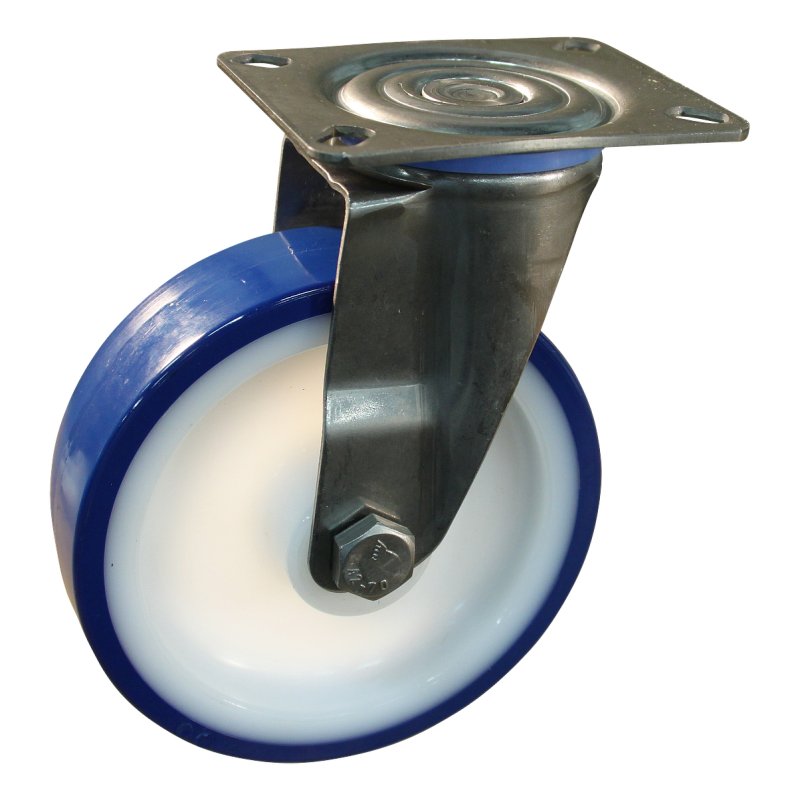

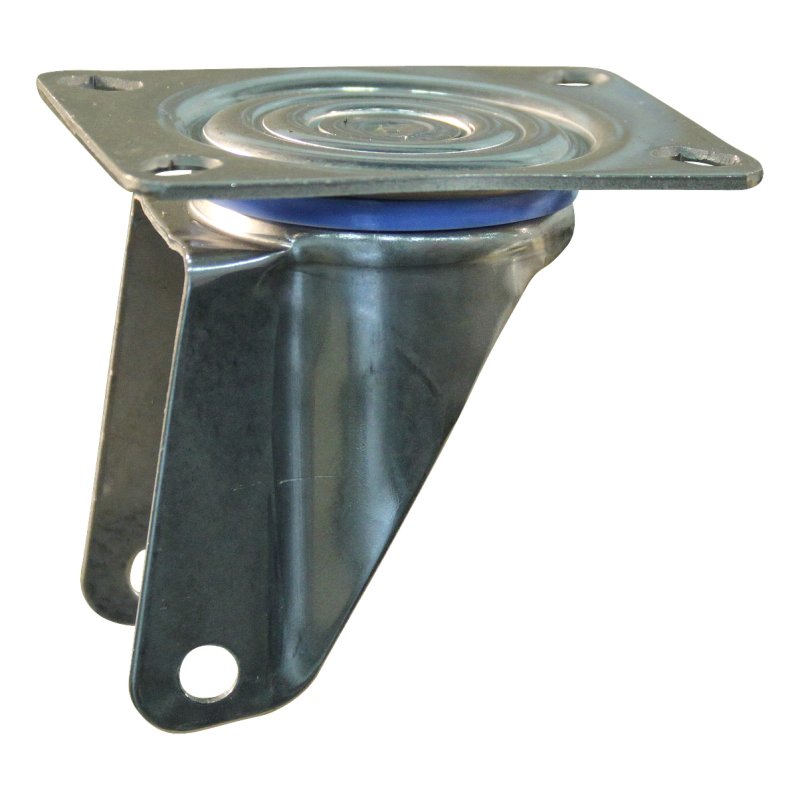

swivel castor 125mm series 27 ᠆ 30 plate mounting plain bore

Reference : 227.121.306.001

Brand Novio Application Transportwheels Industry Agriculture and horticulture Food industry and industrial kitchens Industry and internal logistics Retail Wheel type swivel castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material PU / TPU Overall height 155.5 mm Maximum load capacity 130 kg width 35 mm rim PA rim colour natural diameter axle bore 15 mm diameter axle bore fork 10 mm hub length mm 49 mm hub-to-fork length 50 mm offset…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie alimentaire et restauration collective Industrie et logistique interne Vente au détail
Application	Roue de transport
width	35 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	130 kg
Wheel diameter	125 mm
offset	32 mm
Tread material	PU / TPU
rim	PA
Overall height	155,5 mm
hub length mm	49 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	inox
Brake type	sans frein
dimension fixing	95x80 / 80x60 / Ø9 mm
diameter axle bore fork	10 mm
hub-to-fork length	50 mm
tire	TPU
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	97 Shore A
diameter axle bore	15 mm
