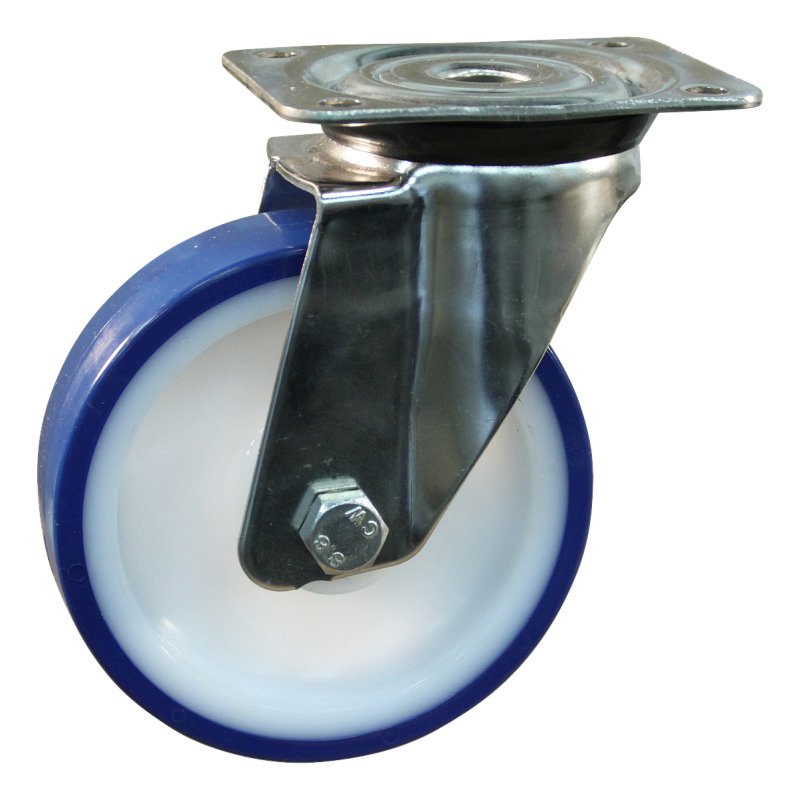

swivel castor 125mm series 27 ᠆ 31 plate mounting plain bore

Reference : 227.121.316.001

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material PU / TPU Overall height 154.5 mm Maximum load capacity 180 kg width 35 mm rim PA rim colour natural diameter axle bore 15 mm diameter axle bore fork 10 mm hub length mm 49 mm hub-to-fork length 52 mm offset 44 mm material fork SS AISI 304 dim…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	35 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	180 kg
Wheel diameter	125 mm
offset	44 mm
Tread material	PU / TPU
rim	PA
Overall height	154,5 mm
hub length mm	49 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	inox 304
Brake type	sans frein
dimension fixing	100x80 / 80x60 / Ø9x13 mm
diameter axle bore fork	10 mm
hub-to-fork length	52 mm
tire	TPU
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	97 Shore A
diameter axle bore	15 mm
