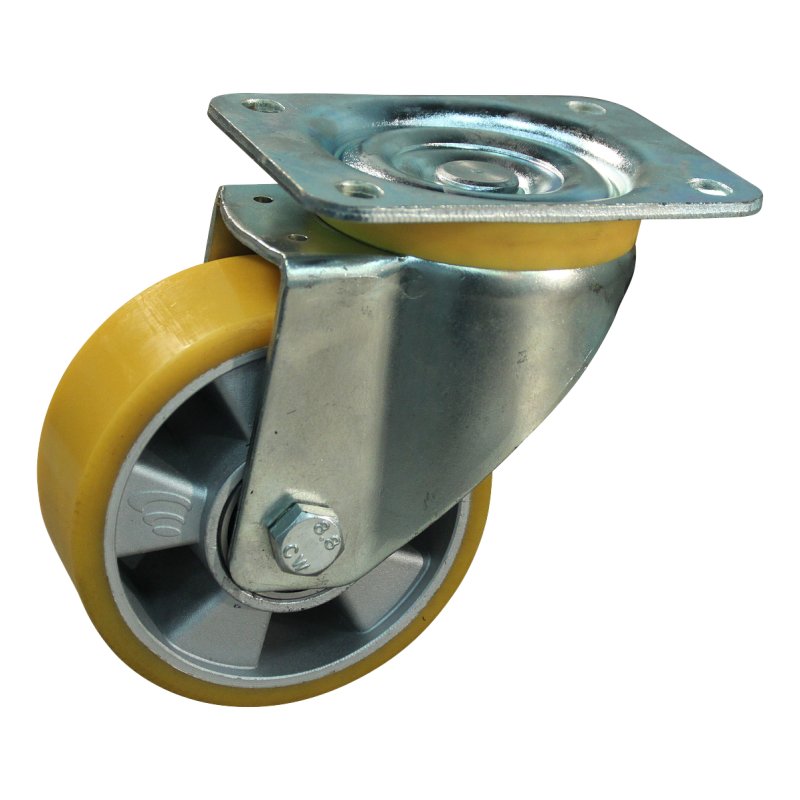

swivel castor 125mm series 29 ᠆ 16 plate mounting ball bearing

Reference : 229.126.166.052

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 164 mm Maximum load capacity 425 kg width 50 mm rim aluminium ADC12 (A383) rim colour not painted diameter axle bore fork 12,2 +0,5/-0,1 mm hub length mm 60 mm hub-to-fork length 60 +1,5/-0 mm offset 55 -/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing 137X105 / 74/…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	425 kg
Wheel diameter	125 mm
offset	55 -/-0,5 mm
Tread material	PU / TPU
rim	aluminium ADC12 (A383)
Overall height	164 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	brut
material fork	métal
Brake type	sans frein
dimension fixing	137X105 / 74/80X105 / Ø11 mm
hub-to-fork length	60 +1,5/-0 mm
tire	PU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
colour support/housing	zingué
